14
7
WARNING: DO NOT LEAVE THE AWNING
UNATTENDED IN THIS POSITION. YOU
MUST LOWER ONE ARM OR BOTH TO
CREATE ENOUGH DROP (FRONT TO BACK)
AND PREVENT RAIN FROM
ACCUMULATING ON THE FABRIC. FAILURE
TO DO SO MAY RESULT IN THE COLLAPSE
OF THE STRUCTURE, WHICH COULD
CAUSE PERSONAL INJURY.
FIGURE 11

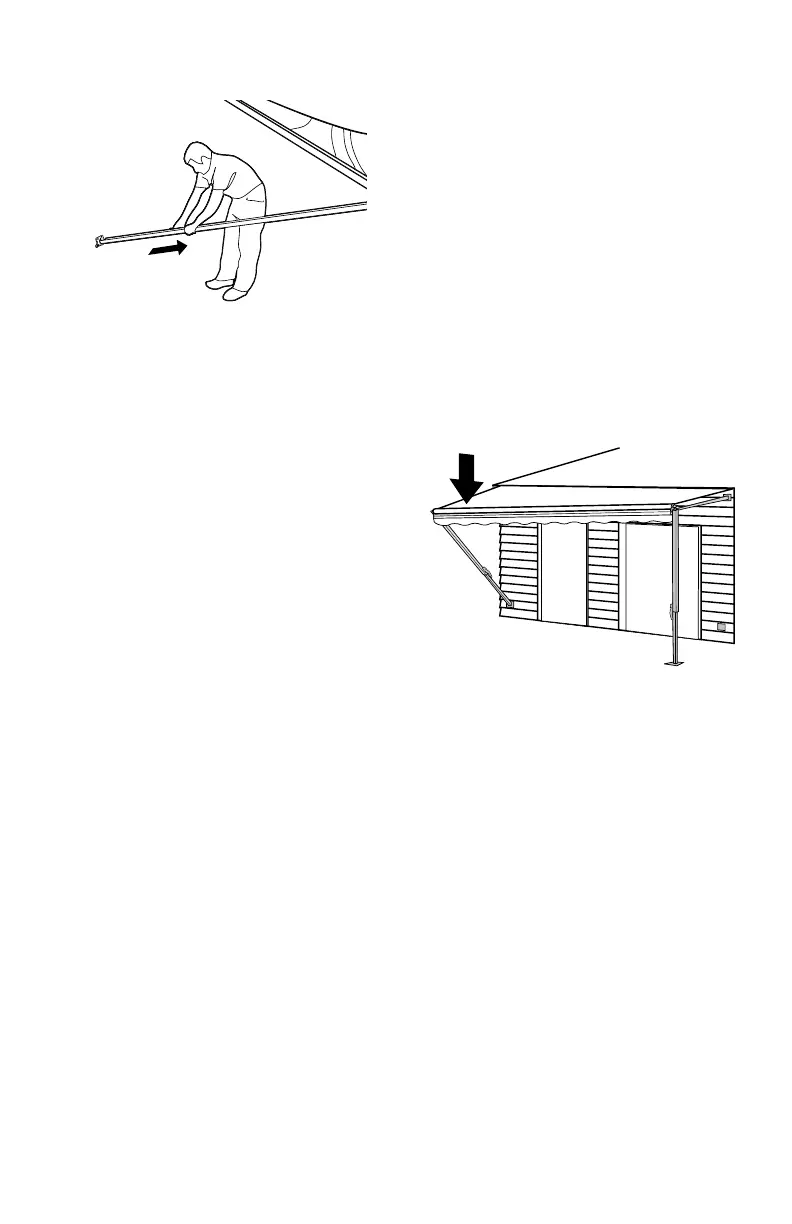

Extend both arms to the desired
height.
FIGURE 5
Push both rafters 'UP' until they lock.
FIGURE 7
Swing both arms to the fully vertical
position.
FIGURE 8
Place the bottom of both arms over the
deck plates that you installed.
Secure both arms to the deck plate by
lifting the ground bracket handle and
rotating it clock-wise approximately
1/4 turn until it locks.
FIGURE 6
Using a helper, unlatch both arms
from the wall brackets. Swing both
arms, at the same time, away from the
house, half way out, set them on the
floor and secure with your foot. Lower
both arms all the way down.
FIGURE 3
Using the hand crank, unroll the
awning until the fabric is fully
extended.
Rotate
Lift
FIGURE 4
Adjust the roller bar position until the
arrow on the Roller Bar aligns with
the OPEN arrow on the side of the
Drive Unit.
OPEN Arrow
Roller Bar
Arrow
Drive Unit
