Assemble Your Barbecue
Body And Trolley
1. Remove the fat tray from the barbecue body. Place fat tray to one side until the barbecue is
placed into the trolley.
2. Remove and place to one side the hot plate, grill plate and flame tamer.
3. Raise the barbecue above the trolley with the gas inlet to the left-hand side (figure 1). Lower
the barbecue into the trolley so that that the trolley support brackets locate in the holes
provided on the underside of the barbecue.

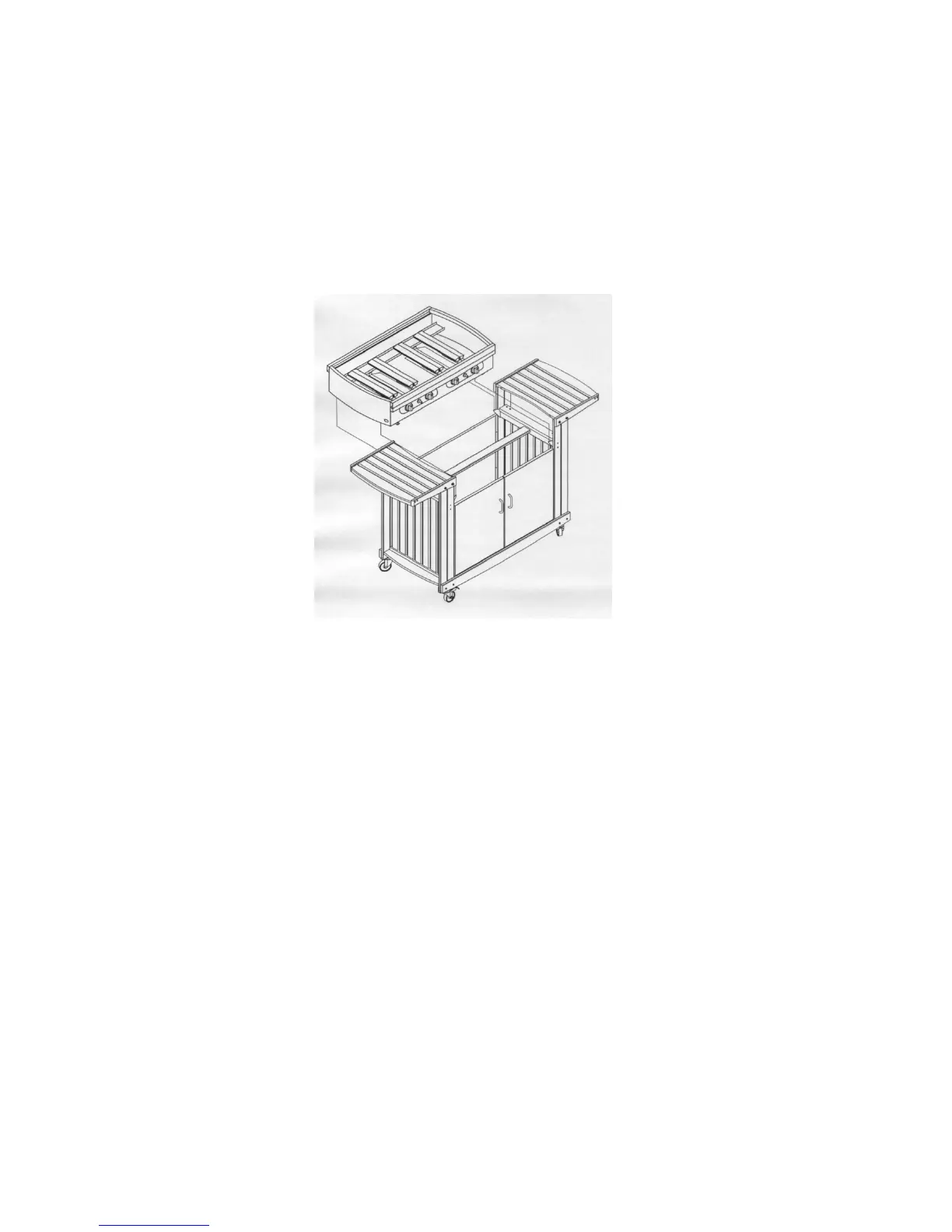

Figure 1
