A Servery Assembly Na RH Front Inner Leg
B Metal Bottom Base O LH Rear Inner Leg
C Timber Bottom Base Oa RH Rear Inner Leg
D Timber Side Panel P M6 X 50 Hex Pan Screw
E Metal Rear Panel Q ‘D’ Handle
F Metal Front Door R Plain Washer
G Top Shelf Slat End Formed S M6 x 45 Bolt Cap Head
H Hinge Fix To Timber T Castor Bracket
I Top Shelf Slat Drilled U Front Castor
J Cross Rail V 8G x 35 Chipboard
K BBQ Bracket W Hex Nut
Ka Anti-Rocking Bracket X Rear Castor
L Stretcher Rail Y 8G x 15 Screw
M LH Front Outer/RH Rear Outer Leg Z Towel Rack Assembly
Ma RH Front Outer/LH Rear Outer Leg Zi 8G x 15 Countersunk Screw
N LH Front Inner Leg

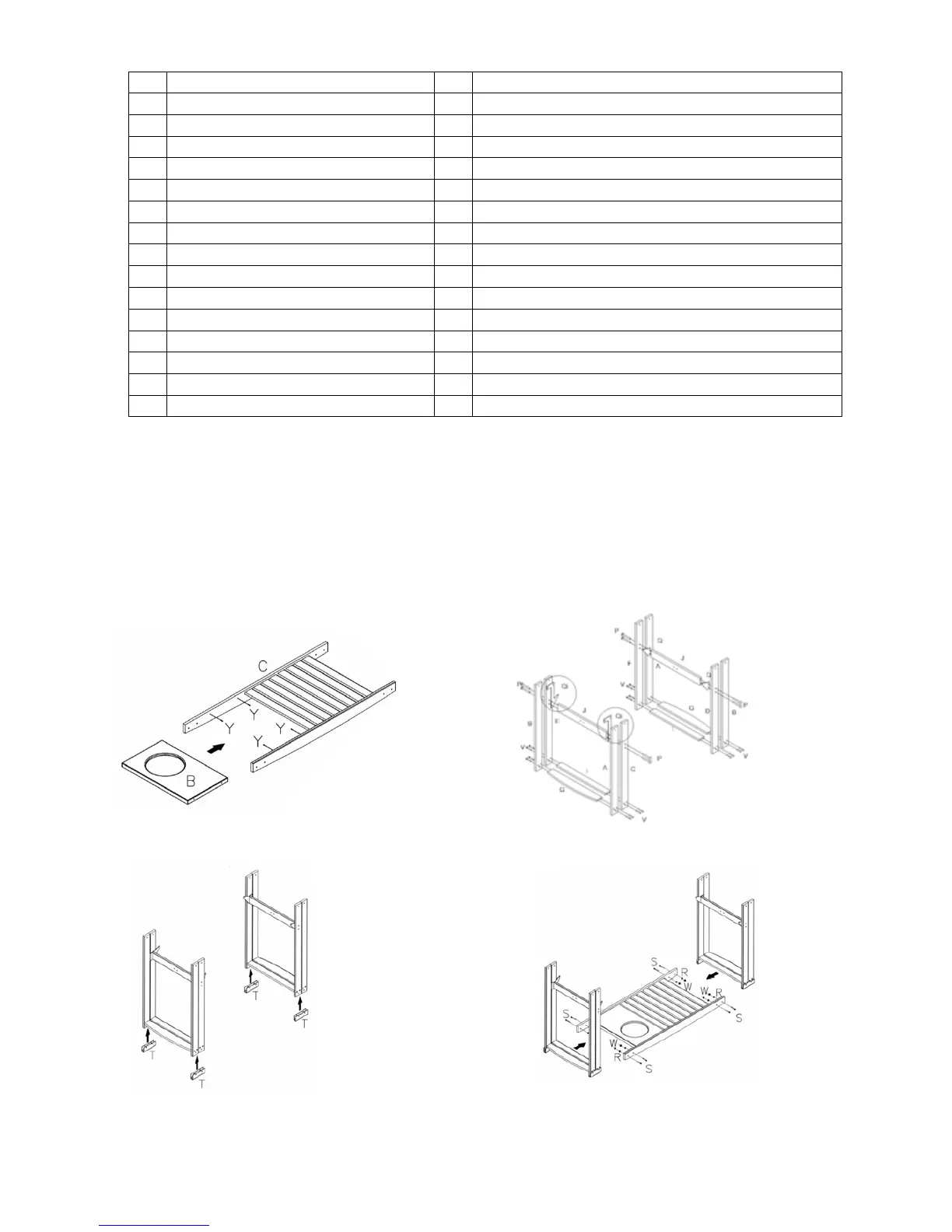

TROLLEY ASSEMBLY
Assemble the barbecue trolley following steps as indicated below.
You will require the following tools to assemble the trolley, bbq body and hood.
1. Philips drive Screwdriver
2. Spanner
3. Adjustable Wrench
Metal parts required to complete the trolley assembly are packed in the barbeque box.
Step 1 Step 2
Step 3 Step 4
5
To Next Page
