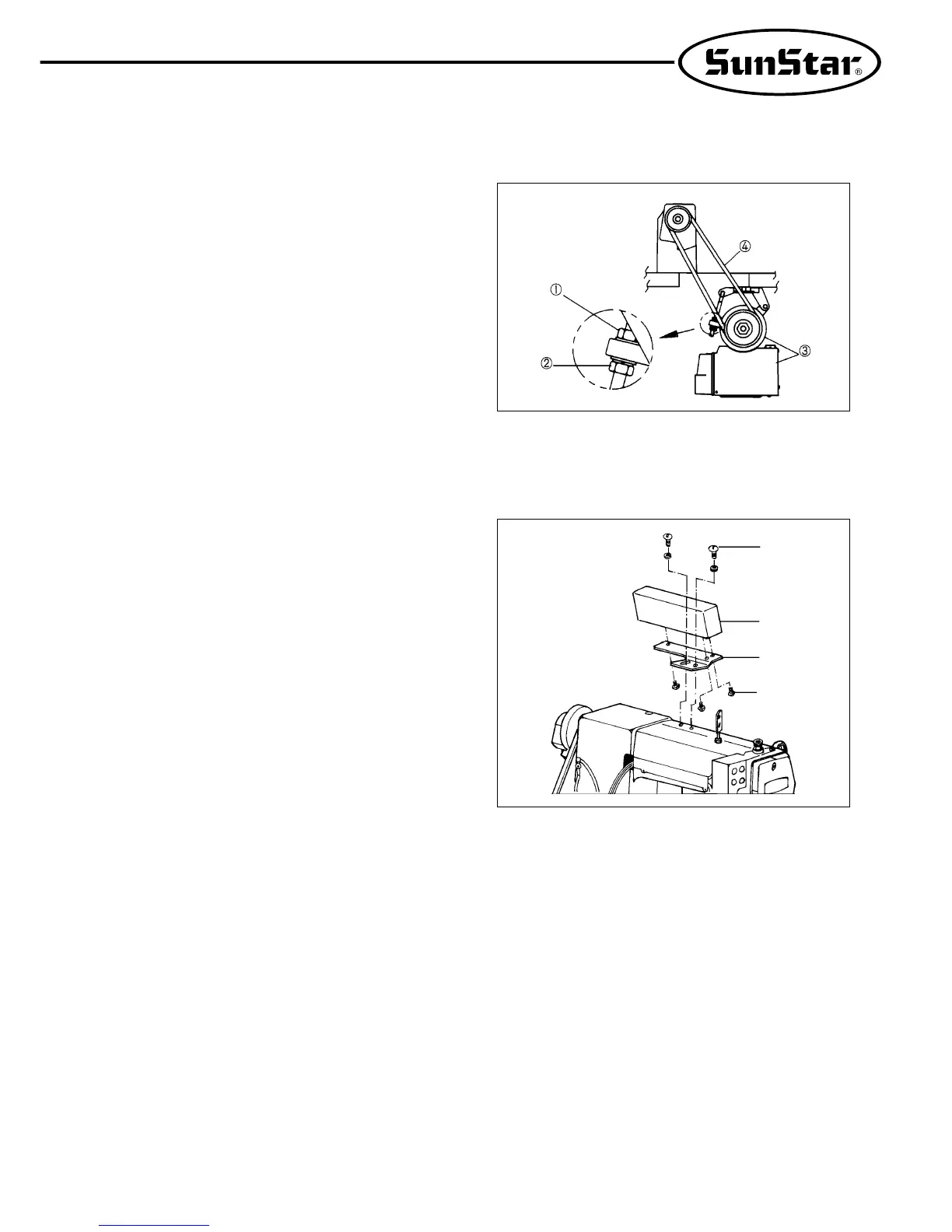

4) Adjustment of belt tension
After the motor is installed, unfasten fixing nuts ① and ②
to give tension to the belt ④ generated by the weight of
the motor ③. At this point, fasten the fixing nut ① and
fixing nut ② consecutively. (Refer to Figure 5)
[ Figure 5 ]
5) Installation of the program unit
A. Fix the attachment plate ② on the program unit ①with
three fixing nuts ③.
B. Mount the unit firmly onto the machine head with two
fixing bolts ④. (Refer to Figure 6)
[ Figure 6 ]
①
④
②
③
