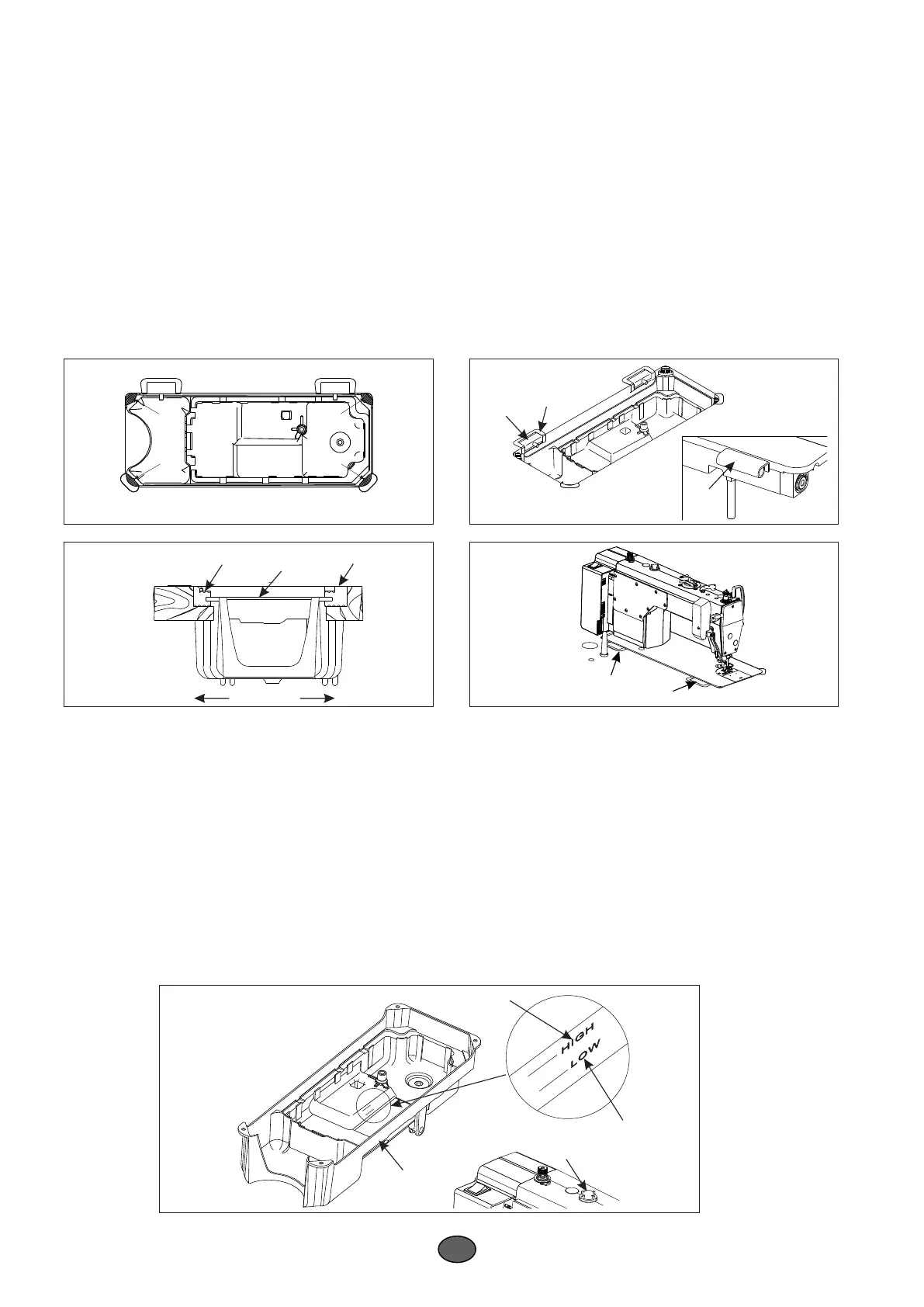

4.INSTALLATION(FIG.1,FIG.2,FIG.3,FIG.4)

5.LUBRICATION(FIG.5)

Fixing oil tray

Attention:in the packing box,the rubber cushions fixed at the four corner of oil trayis not

for any other usage,just for packaging.

1) Oil tray should be put at the four corners of the slot in table plate.

1. Information on lubrication(Fig.5)

1)Fill oil pan ① with sewing machine oil (10 while oil)up to HIGH mark A.

2)When the oil level lowers below LOW mark B, refill the oil pan with the specified oil.

3)When you operate the machine after lubrication, you will see splashing oil through oil sight window② if the lub-

rication is adequate.

4)Note that the amount of the splash oil is unrelated to the amount of the lubricating oil.

Precaution:

When you first operate your machine after set up or after an extended period of disuse, run your machine at 2000

RPM to 2500RPM for about 10 minutes for the purpose of break-in.

2) Fix two arm cushion "1" to the "A" side of oil tray "3" (facing the operator).Fix the two stand bases "2" to the "B"

side of oil tray"3"(hinge side),then fix the oil tray"3"(Fig.1,Fig.2)

3) Plug the hing"1"into hole of bed plate,put the machine head on the table plate,hinge at the

sink place and then fix the machine head on cushions of the four oil tray corners(Fig.3,Fig.4)

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

①

②

③

①

②

①

②

①

②

①

SunStar KM-2520BL/T User Manual
