PART NO. 690809 REV: A 18
Moving FloatLift

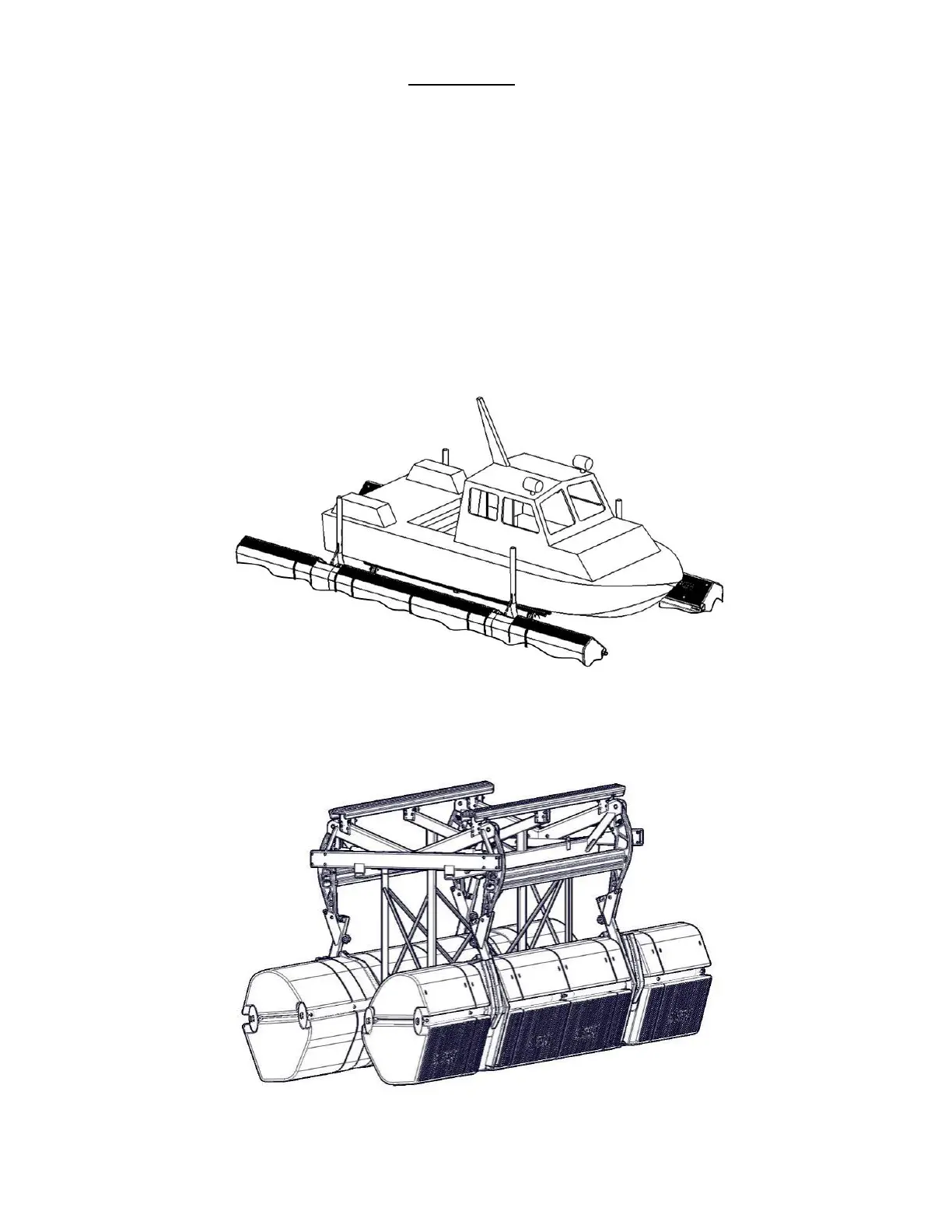

Towing FloatLift
The FloatLift may be towed using a rope bridle of at least 30 ft long, connecting the front or rear U-bolts on
the Upper Float Tube End Plates. Tow at a max speed of 10 knots in fully up position, or as sea con-
ditions dictate.
Motoring FloatLift
With some boats, the lift can be moved using the boat’s power while on the lift. This requires the lift
to be lowered sufficiently so the water intakes are adequately submerged, yet the bunks are supporting
enough weight to keep boat from shifting on lift. For some applications, securing the lift to the boat
with lines may be required. Verify water intakes to boat are not blocked by lift bunks, and props are
clear of lift. If additional depth needed for water pickups toward rear of boat, boat may be positioned
1 ft aft on lift from balance point.
Storing/Shipping fully assembled FloatLift
An optional Shipping Hanger GFA-SH24 for FL24, and GFA-SH36 for FL36 & FL40 is available,
which minimizes the width to 8.5 ft.
