PART NO. 690809 REV: A 23
FLOATLIFT DETAILED OPERATING INSTRUCTIONS
Confirm Installation
Lift is properly moored to dock
Powerpack is properly connected to lift and properly located on dock
Energize Powerpack
Pump A: Turn on Circuit Breaker A
Pump B: Turn on Circuit Breaker B
RC power: Rocker switch on RC box
Key Fob Transmitter
The Powerpack is shipped with the Key Fob Transmitter programmed to the RC Box. If a new Transmitter is used, it will be
necessary to program it to the RC Box. Sometimes it also may become necessary to re-program your Transmitter after a
dead battery or experiencing electrical interference.
Programming Instructions:
Switch RC Unit to ‘ON’
Push and Release RED Program button 1 time
Push Transmitter ‘UP’ button 3 times. The Powerpack will operate during the 2nd or 3rd push. If not, repeat.
Loading boat on lift (raising)
If newly installed Lift, verify Float Control Pins have been installed (see figure on page 17).
With the lift in the Down position, position boat on lift, with the weight of the boat balanced on the lift.
Raise the lift partially to check for fore/aft boat balance and reposition boat to better balance.
Raise the lift to a partially raised position approximately half way, and stop to allow for boarding or disembarking. Con-
tinue to raise the lift to the fully up position, ensuring both sides of floats are in the full up position, which locks them
over-center. The elevation of the front of the floats should be within 4” of the rear of the floats in the fully raised posi-
tion.
The boat should be substantially level on the lift from side to side, with boat laterally centered.
Operation

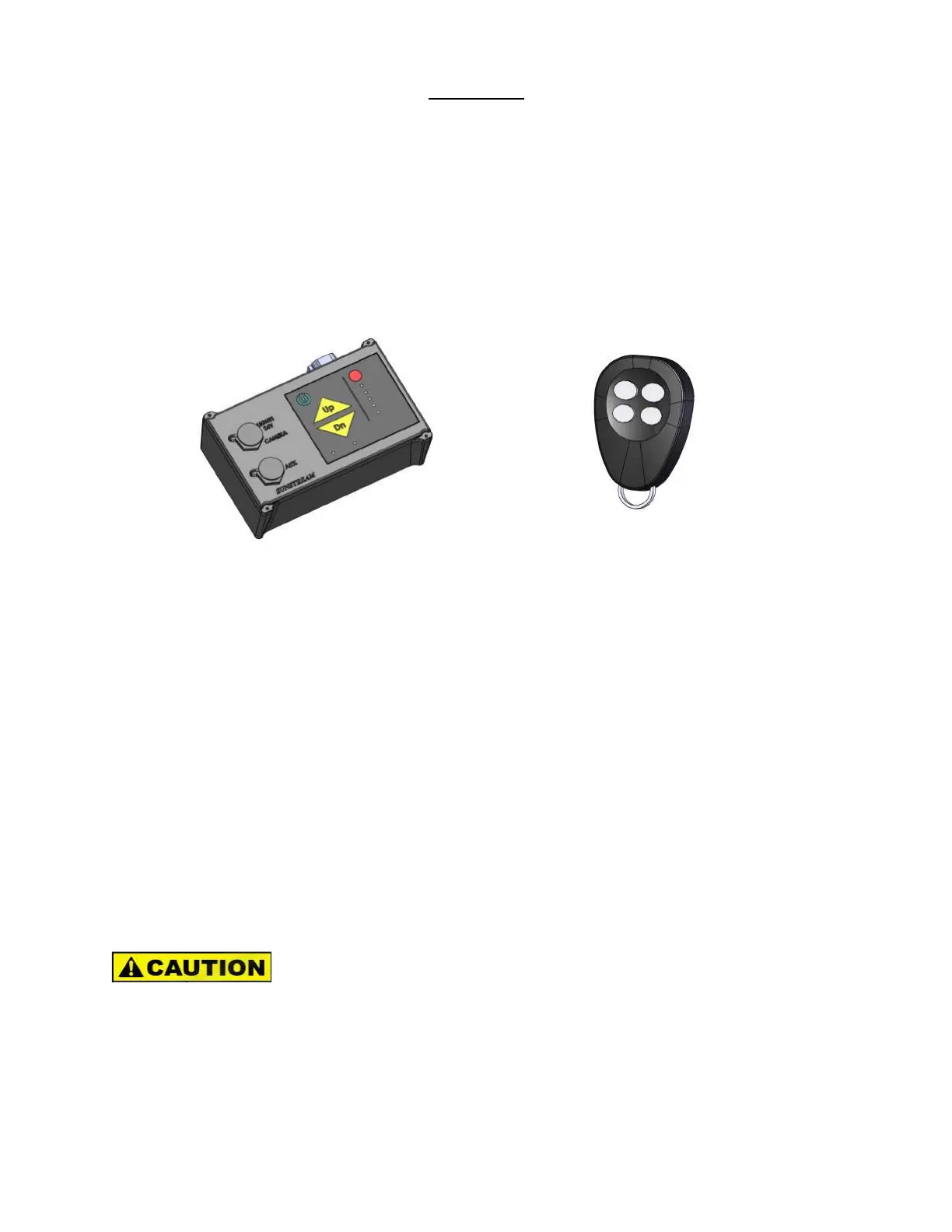

RC Unit
(RC308 shown)
Transmitter
Ensure nothing on lift can cause damage to
boat. Use padding and or fenders.
