PART NO. 690809 REV: A 7

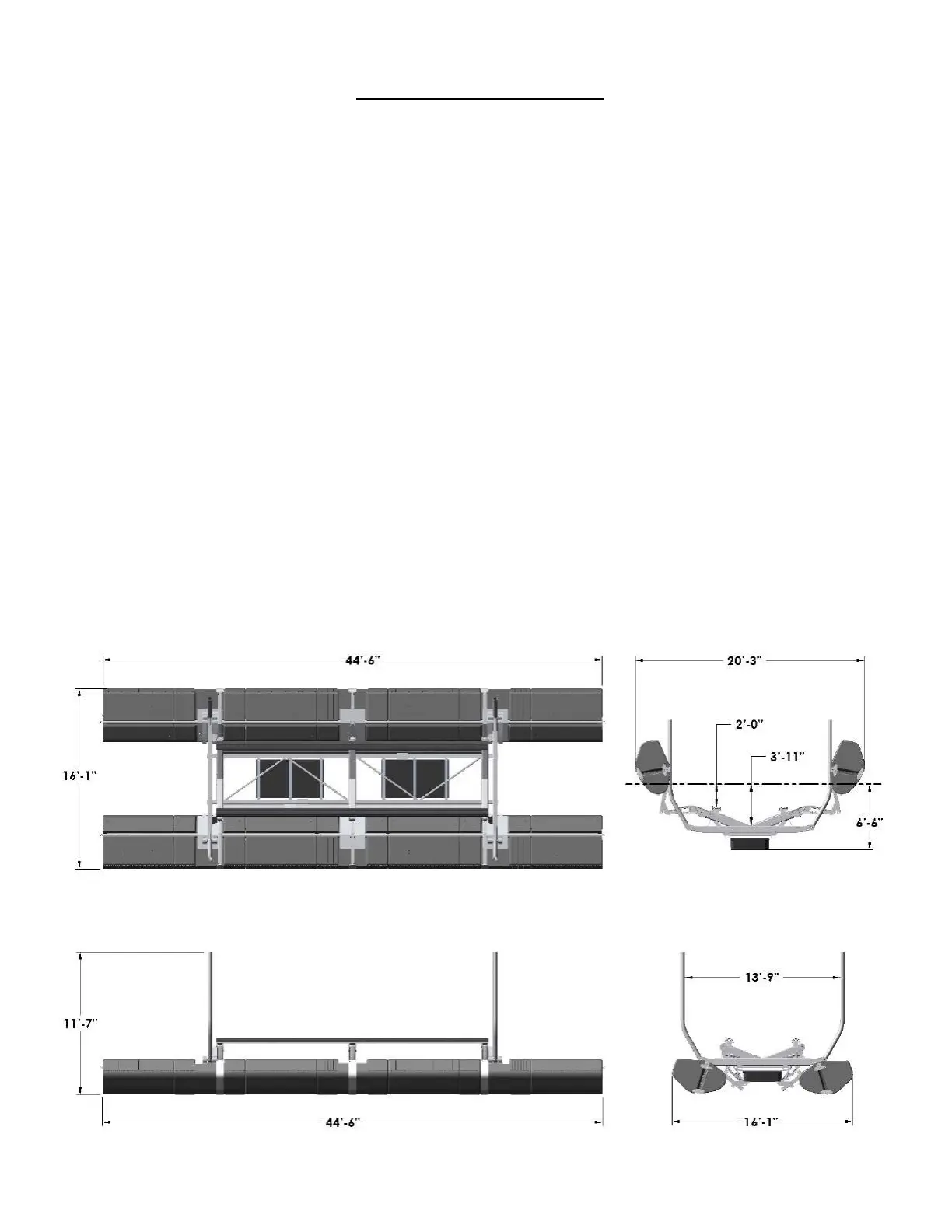

FL40/GFL40 Specification
Boat lifting capacity: 40,000 lbs
Lifting speed: 90 to 150 sec (typ)
Lowering speed: 80 to 100 sec (typ)
Overall length: 44 ft 6 in
Overall width: 16 ft 1 in (up position)
20 ft 3 in (down position)
Min Slip width 22 ft
Min water depth: 6 ft 6 in
Max boat beam 13 ft 9 in
AC power required: 120VAC or 230VAC
AC charging output (High Amp Charger) 20 Amps at 24V
Weight: FloatLift structure without powerpack approx. 9700 lbs
FloatLift structure (without float assys) 4700 lbs
Float Assy (each side) 2500 lbs
Powerpack box (with sealed batteries) Approx. 445 lbs
Powerpack box (without batteries) Approx 200 lbs
Hose length: 35 ft
Structure: Alum 6061-T6 frame with stainless steel hardware
Floats: Rotomolded Polyethylene with expanded styrene foam
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
