If the batteries are being installed in areas of extreme humidity levels, take the following precautions:
A humidity control agent is must be placed inside the enclosure, with controlled airflow to expel moist
air, and/or, the system can be installed in proper room with humidity control.
The SSLB1 battery is well designed to be installed in a 19-inch cabinet. If the battery is going to be
installed outdoors, a suitable IP54 or above enclosure must be used.
In Australia, please refer to AS/NZS 5139 for the installation requirements. This product can be installed
under Section 5 of AS/NZS 5139 for Preassembled BS products.
4.2. Front View

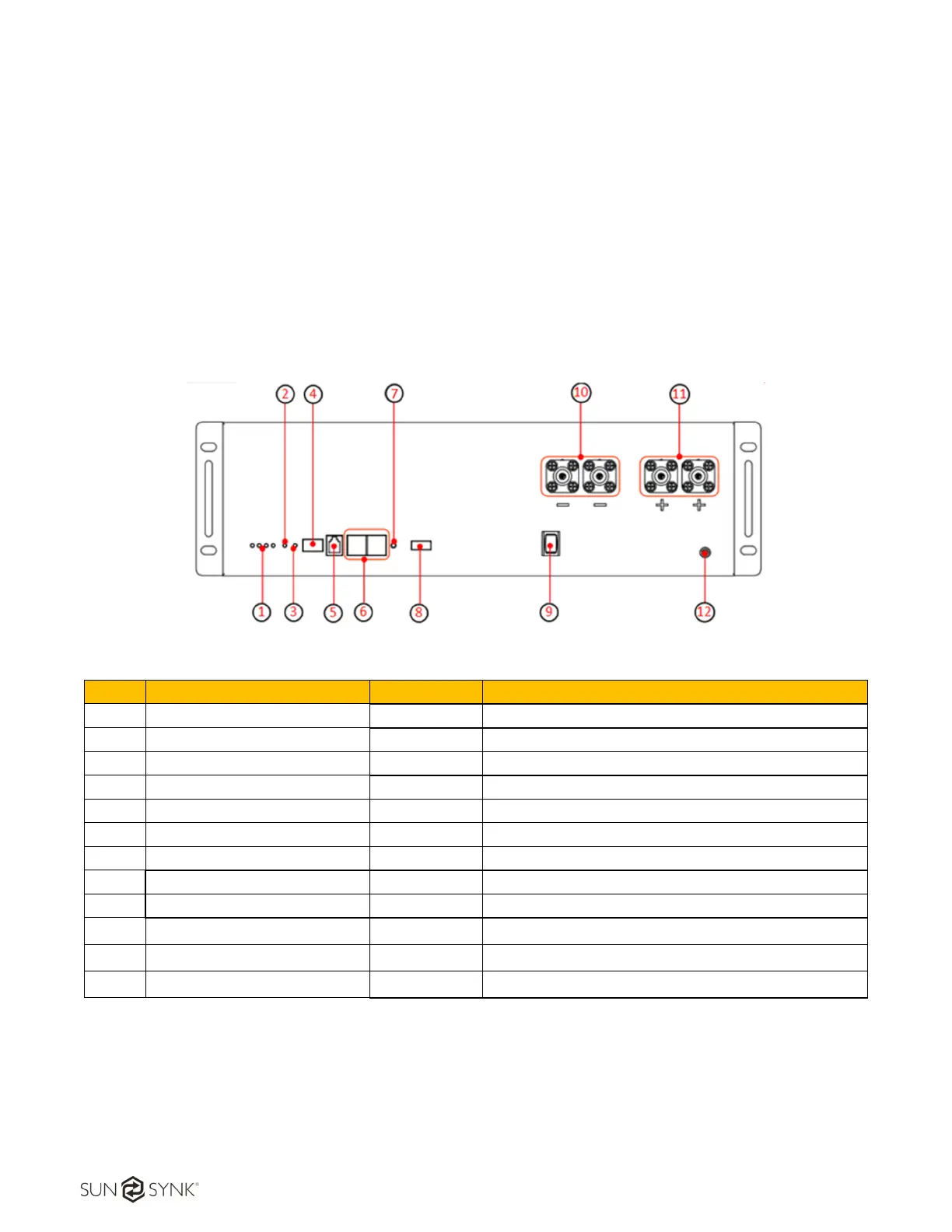

Figure 4 - Front view of the SSLB1
Item Name Model Remarks
1 SOC LED x4
2 Alarm LED
3 RUN LED
4 Dialer
5 Communication port RJ11 RS232 To upper machine
6 Communication port *2 RJ45 CAN To PCS RS485 Internal Connection
7 Reset Waken system from malfunction status
8 Dry Contact
9 Power On/Off Switch
10 Port Negative x2 PSR6XAB
Black 5.7， 25mm2
11 Port Positive x2 PSR6XBB
Orange 5.7， 25mm2
12 GND M6
Yellow-Green， 10AWG
