14
You can add more batteries in parallel to increase the storage capacity. However, no cabinets or racks
are supplied with the battery.
In order to connect multi-units, some steps need to be followed. In this example, it is considered that the
user will connect up to four batteries.
1.
Connect all positive terminals;
2.
Connect all negative terminals;
3.
Connect all the batteries to the same grounding point;

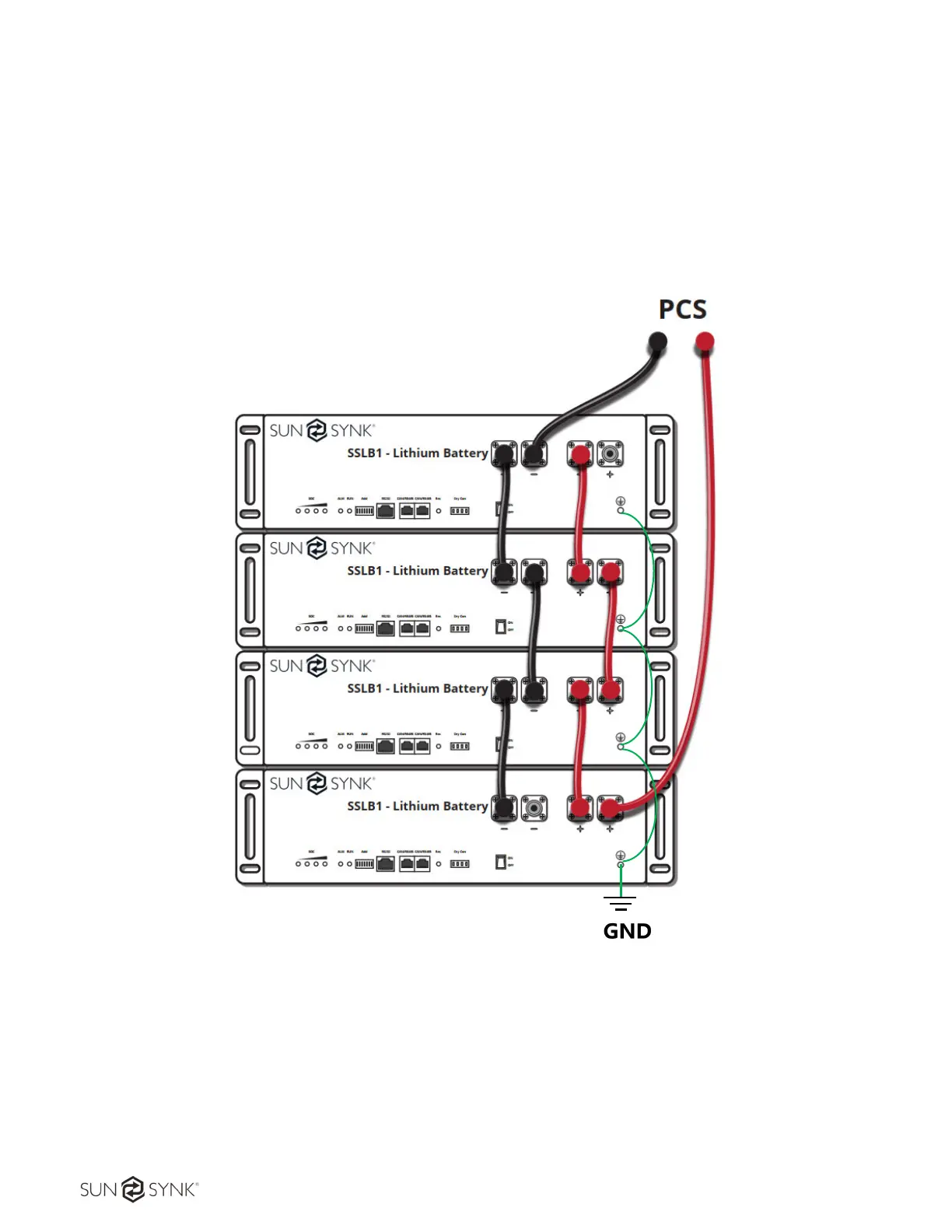

Figure 6 - Multi-Units Connection
4.
In order to set the master and slaves, it is necessary to set up the DIP switches (ON or OFF).
Follow the settings presented in Figure 8 for each case.
