Installation-Assembly Procedures
Attaching Hinge Brackets to Bench

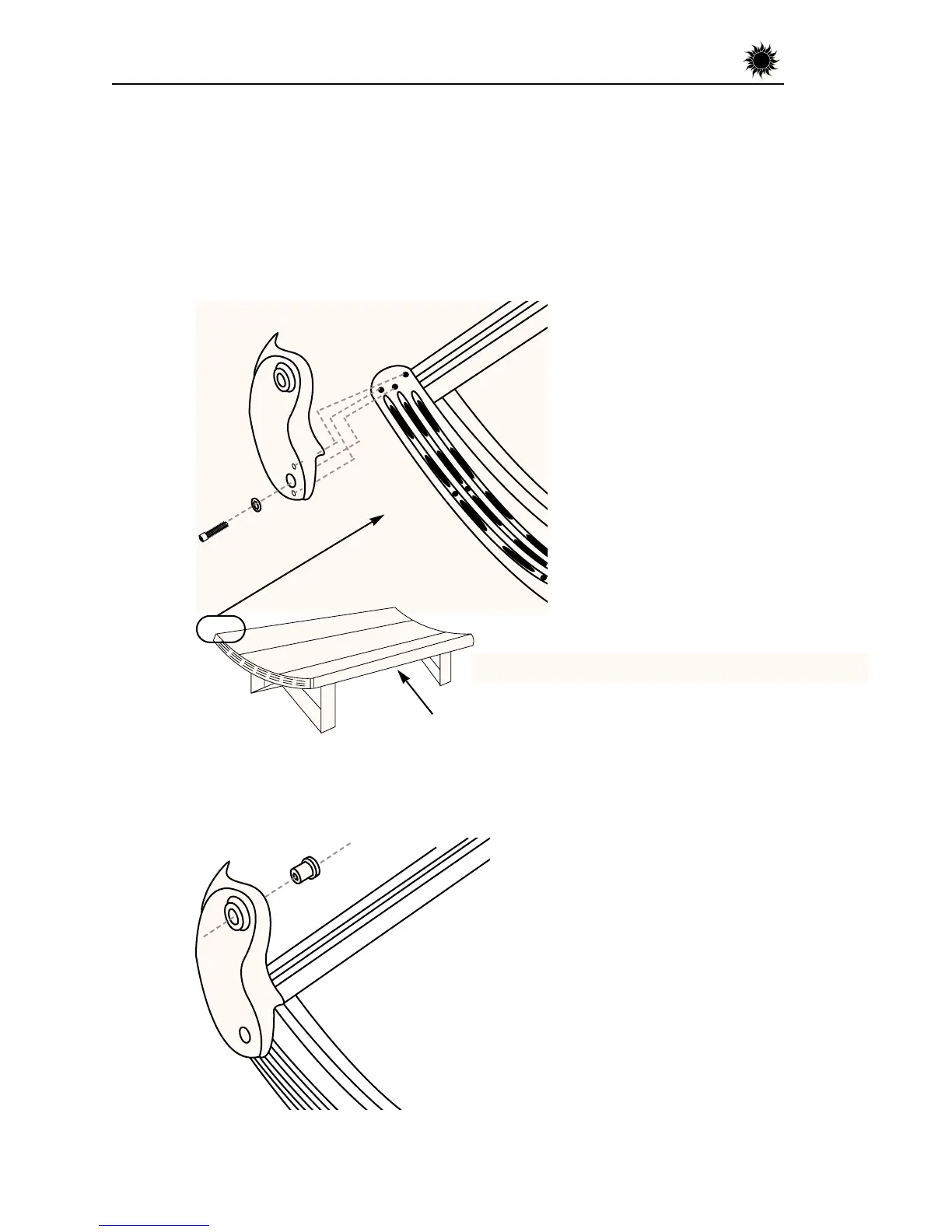

Locate the two hinge brackets and attach to the bench as shown below.
1. Install the hinge bracket to the end of the bed such that the two bosses engage,
then secure using the 5/16" x 1" allen-head bolt and 5/16" metal washer. Tighten
bolt snug, then an additional half turn. Repeat for the other hinge bracket
2. Place the bushings into the hinge brackets as shown below.
BENCH (BACK CORNER MAGNIFIED)
FRONT OF BENCH
To Next Page
