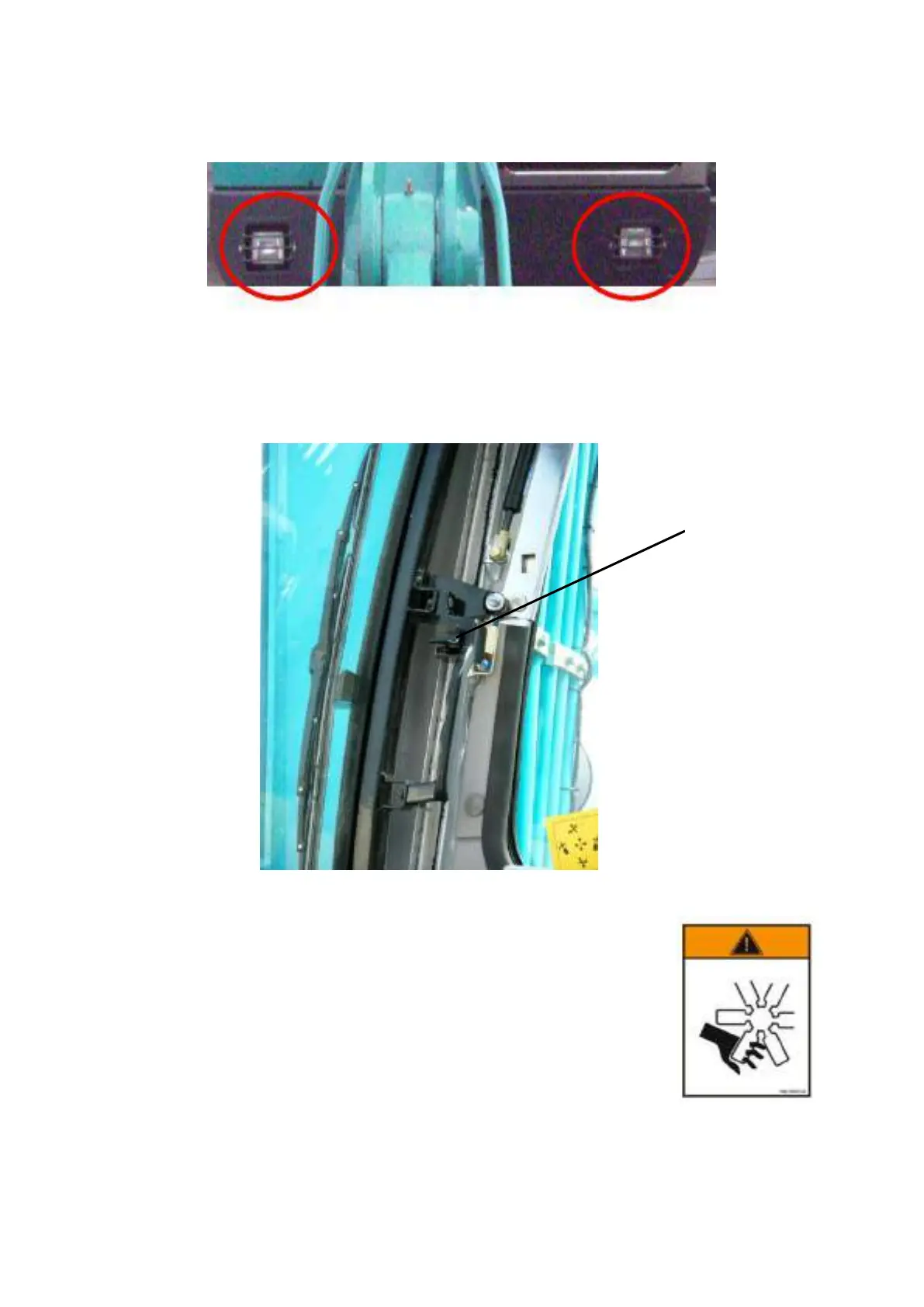

2.10 PLATFORM LIGHT
2.11 FRONT WINDOW
Front window of the cabin can easily be opened for maintenance and leaving purpose. Open the fastening of
front window; push the glass window upwards and backwards to the scheduled position; to fasten glass
window (As figure 2.11).
2.12 WIND HOOD AND UPPER-COVER
Wind hood:
The engine should be equipped with air ducting hood to prevent foreign materials
from being reeled into fan which disturbs the normal work of fan. On the other hand,
the assembly of air ducting hood can prevent accident caused by carelessly putting
hand into the fan (As figure 2.12). It is equipped with mounting plate on both left
and right and is connected with the water tank.
Upper-cover
Figure 2.12
fixing
buckle
Figure 2.11
