System Overview
CrossFire M2 (Mid Power Remote Unit 2nd Generation) system is a distributed antenna system (DAS). It consists of
Access Unit (A2), Expansion Unit (E2-O), and Remote Unit (M2). The Expansion Unit is an optional unit that can expand
the system capacity.
System Connection

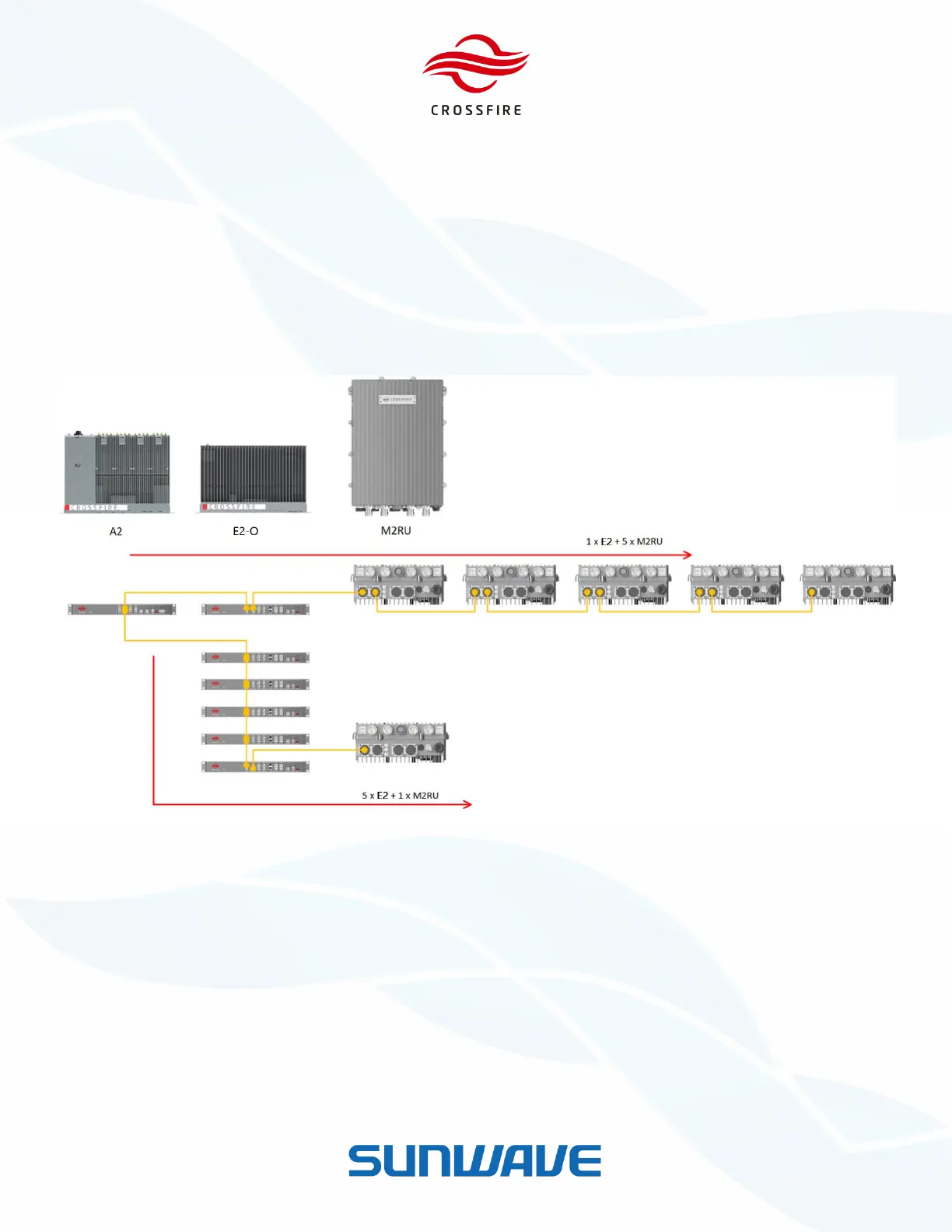

A typical CrossFire M2 system connection is shown in Figure 4.
Figure 4. System Connection
⚫ CrossFire supports 1 Master A2 and 2 Slave A2
⚫ Cascading up to 5 levels of E2-O
⚫ Cascading up to 6 levels of E2-O + M2RU
