SG Series Boilers – Installation and Service Manual
13
Field wiring to terminal block TB4

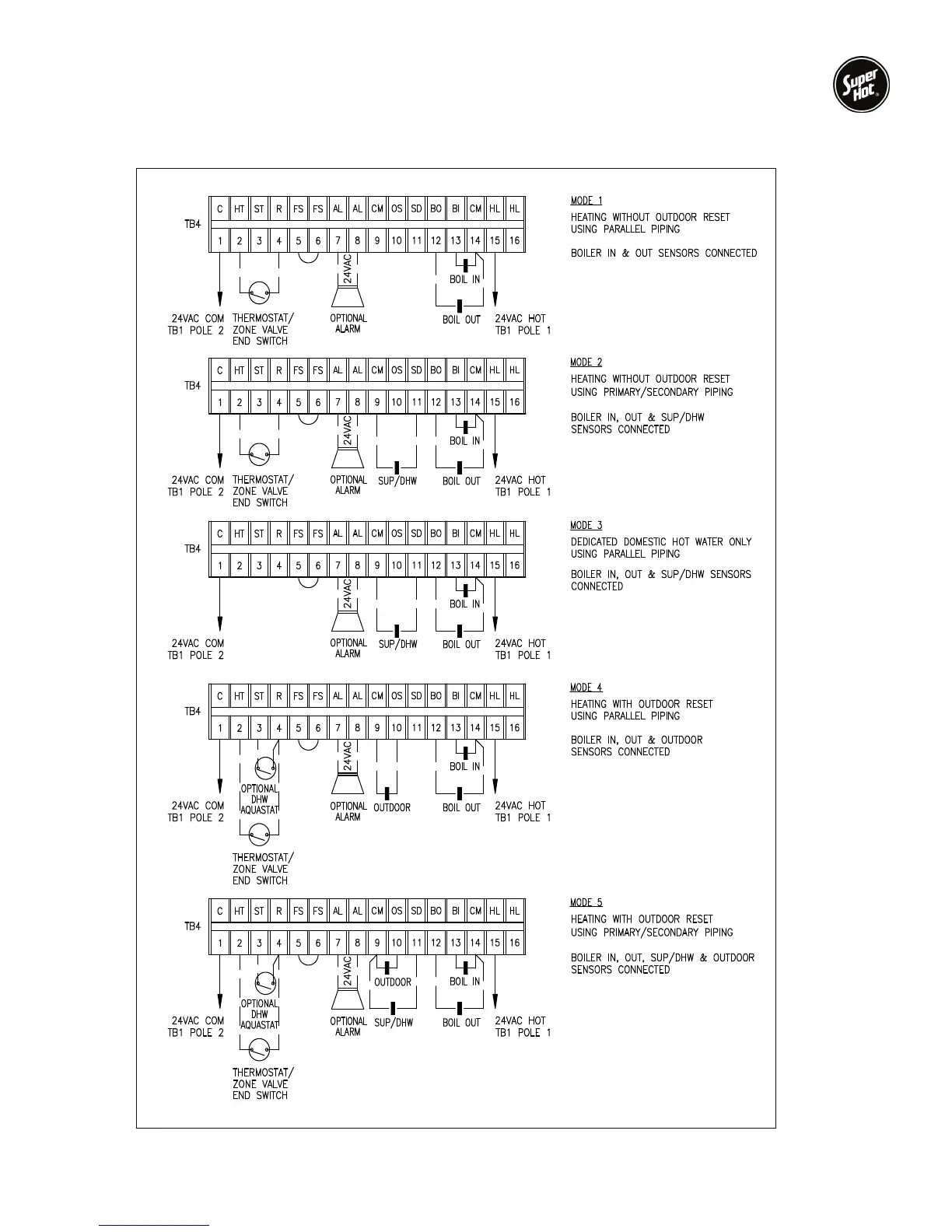

Figure 3 – Field wiring to terminal block TB4
