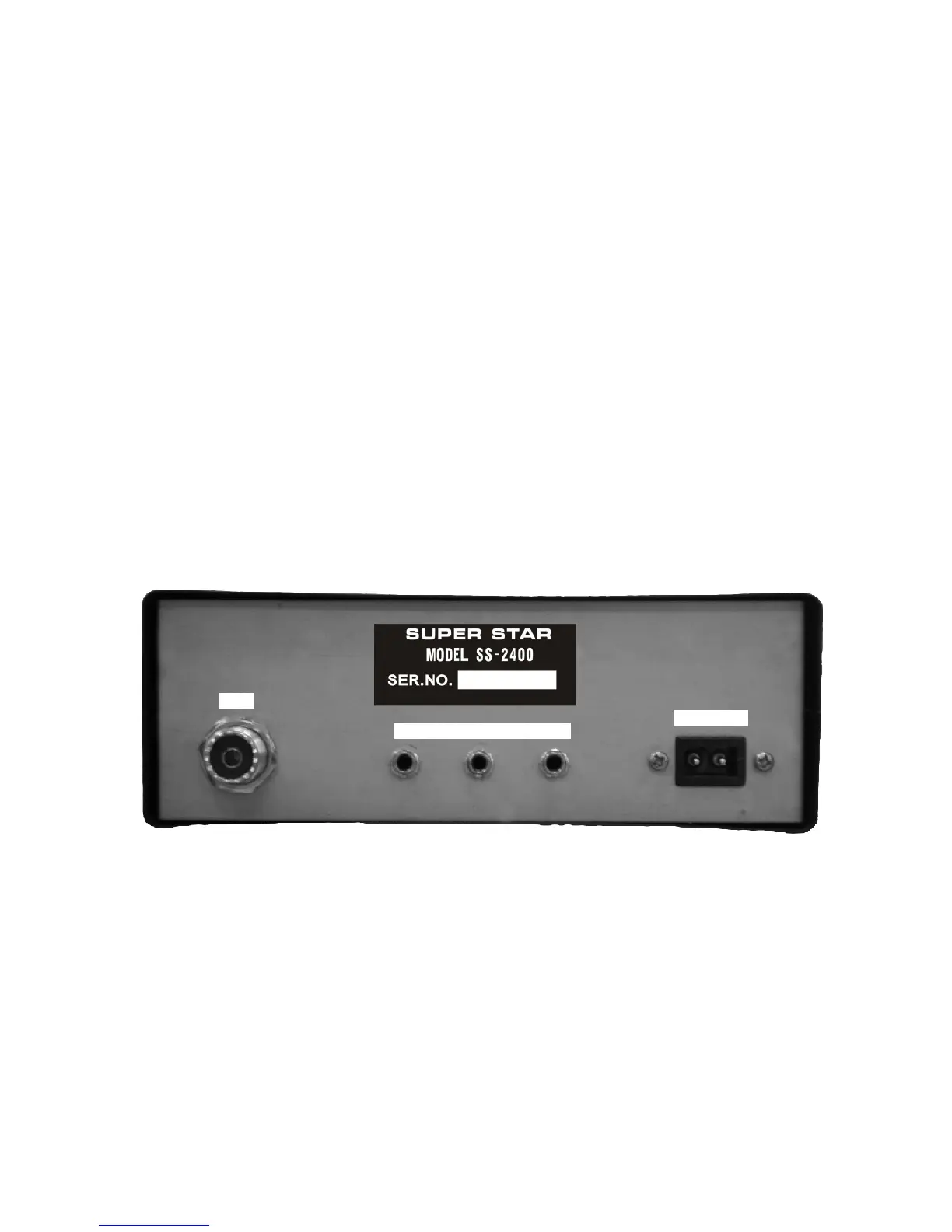

Rear panel Connection
(1) Antenna
Accepts a PL-259 type coaxial connector from the antenna lead-in cable.
(2) CW Key jack
Accepts a 3.5 mm 2-conductor phone plug to connect a CW key.
(3) External Speaker jack
Used to connect an external speaker (8 Ohm 4W) as an extra sound source.
Insertion of the plug from a speaker will silence the internal speaker auto-
matically.
(4) PA Speaker jack
Used to connect a PA speaker (8 Ohm 4W) for PA operation.
Before operating PA you must first connect a PA speaker to this jack.
(5) 13.8V DC jack
13.8 V DC power for the transceiver supplied through this socket (using DC
power cable supplied).
7
ANT
CW EXT SP PA
13.8V DC
