FLASHPAQ Overview and Setup

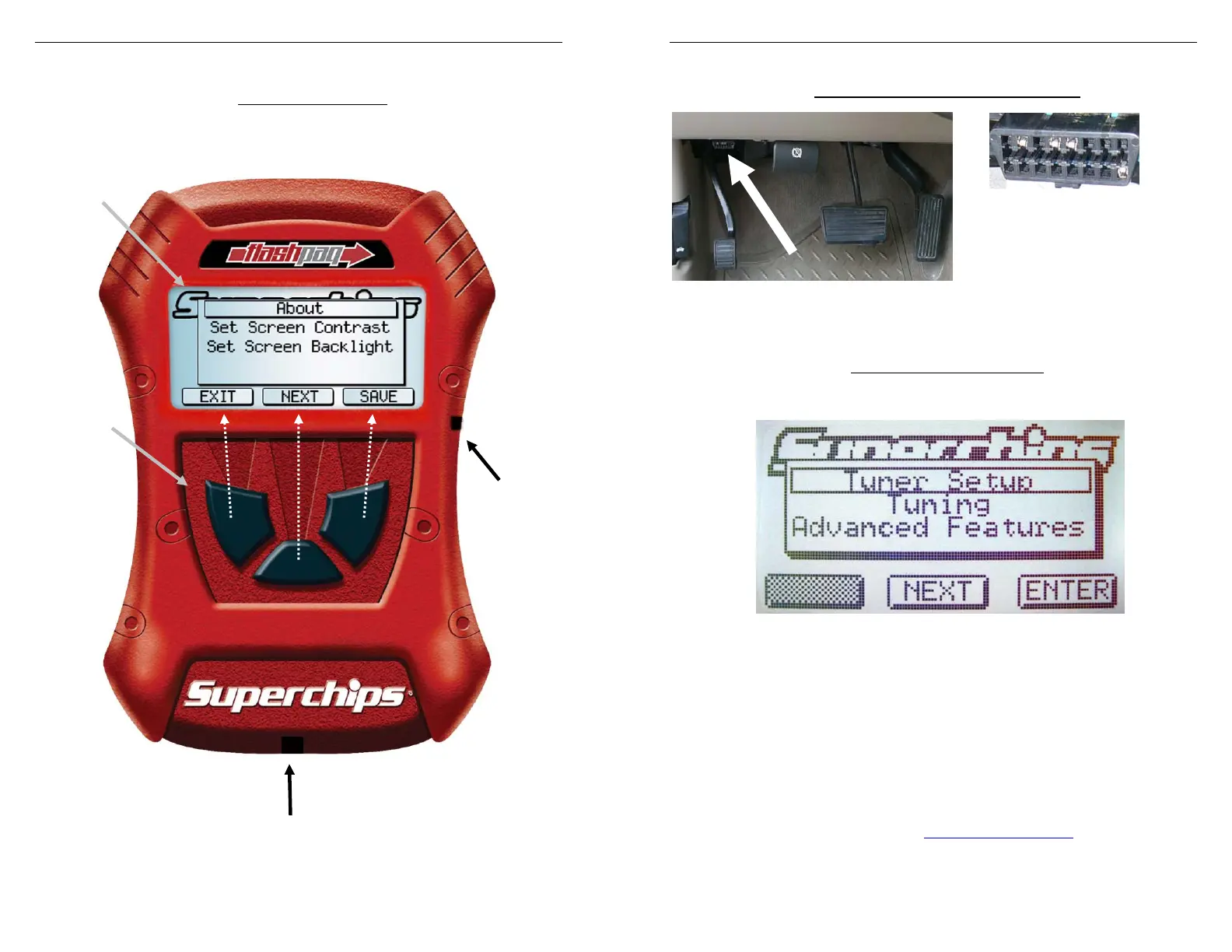

¾ Hardware Overview
Graphical Display
SoftKeys
Buttons
(Note screen
relation)
Vehicle Cable
USB
Port
for PC
Page 6 of 24 Form 0161F 2805 09/2/2008 Superchips Inc .
Superchips Inc. 1790 East Airport Blvd., Sanford, FL. 32773 (407) 585-7000 http://www.Superchips.com
Superchip & Superchips are registered trademarks of Superchips, Inc.
FLASHPAQ Overview and Setup
¾ Connecting the tuner to My Vehicle
Diagnostic port
close up
The Tuner plugs into your vehicle’s The port and cable are setup
diagnostic port usually underneath the dash to only fit on one way. Typically
below the steering wheel (see white arrow). the wider edge faces the top, as
shown above.
¾ Opening screen overview
When the tuner is first powered up, the Opening screen is displayed
 Tuner Setup
o About
o Set Screen Contrast
o Set Screen Backlight
 Tuning
o Read Vehicle
o Change Settings
o View Settings
o Program Vehicle
 Advanced Features
o Diagnostic Codes
o Data Logging (visit www.Superchips.com
for updates)
