4
INSTALLATION
OPERATION
ADJUST DISCHARGE FLOW
1. Choose the correct adapter for the application.
2. Thread adapter into pump discharge.
3. Attach pipe or tubing to the adapter.
4. Run pipe or tubing to pond feature (not included) or
auxiliary pond filter (not included).
NOTE: For maximum flow it is recommended to use
the largest fittings and pipe (not included).
5. Fully submerse pump in water source.
6. Place pump on a solid surface where pump is secure
and does not move.
7. The pump will operate in any direction as long as the
entire pump is fully submerged in the water source.
RISK OF ELECTRICAL SHOCK: Disconnect and lockout power supply before installation,
operation or adjusting discharge flow.
Review safety instructions before installation, operation or adjusting discharge flow.
1. Plug the pump power cord (C) into a 120 volt
grounded outlet. The use of a GFCI outlet (not
included) is highly recommended.
2. Pump will self prime and move water.
NOTE: If pump does not move water, ensure that
the pump is fully submerged in water. Unplug
pump and plug in pump to re-prime. Repeat as
necessary.
Standard Flow
1. Unplug pump power cord from power source.
2. Insert flow cap into the front of the filter cover.
3. Plug power cord into power source.
4. Water will flow through filter and out of the discharge.
Direct Flow*
1. Unplug pump power cord from power source.
2. Remove filter cover from pump.
3. Remove flow cap from the front of the filter cover by
pressing out from the back of the filter cover.
4. Reattach filter cover to pump.
5. Plug power cord into power source.
6. Water will flow directly into pump and out of the
discharge.
* Direct flow offers increased performance when compared to Standard Flow. Direct
flow is for use with fresh water only. Water source must be free of debris. Debris
may damage the impeller.

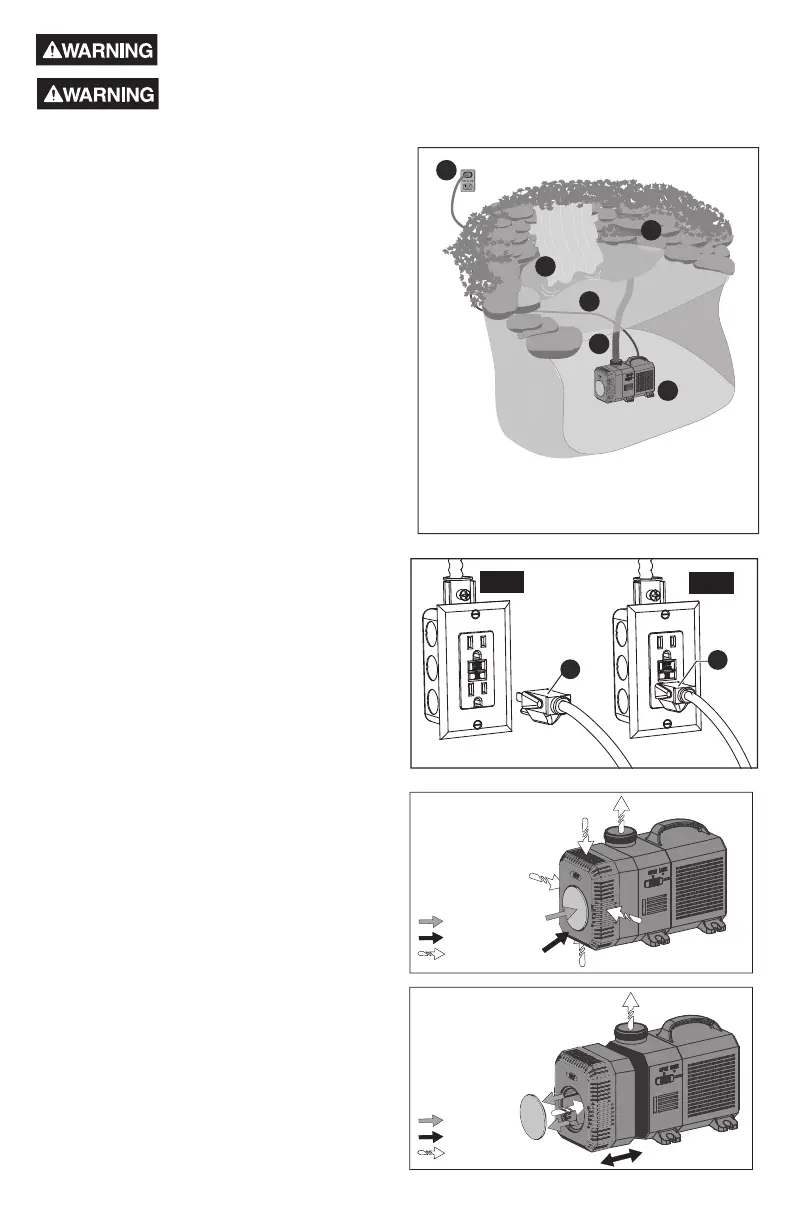

A
E
F
B
C
D
A. Pond Pump
B. Discharge Hose*
C. Power Cord
D. GFCI Outlet*
E. Water Feature*
F. Pond / Landscaping*
*Not included
Installation
Standard Flow
With Water Filter
C. Flow Cap
F. Filter Cover
W. Water Flow
Direct Flow
Bypass Water Filter
C. Flow Cap
F. Filter Cover
W. Water Flow
Step 1 Step 2
*Properly
grounded GFCI
protected
receptacle
C
C
