MAINTENANCE - PUMP FILTER
MAINTENANCE - MAGNETIC DRIVE
MAINTENANCE - WINTER CARE
1. Unplug pump power cord from power source.
2. Turn the filter cover (B) counter-clockwise and remove it from the volute (D).
3. Remove filter (C) and thoroughly clean using fresh water.
4. Reassemble the parts in reverse order.
1. Unplug pump power cord from power source.
2. Turn the filter cover (B) counter-clockwise and remove it from the volute (D).
3. Remove flow cap (A).
4. Remove filter (C).
5. Slide locking mechanism on the volute plate (D) to the open location.
6. Turn the volute plate (D) counter-clockwise and remove it from the pump body (G).
7. Remove the shaft/impeller assembly (E) and impeller shaft bushing (F) from impeller cavity.
8. Clean any corrosion or debris from the filter cover, volute, impeller, shaft, and the impeller cavity using
fresh water.
9. Reassemble the parts in reverse order.
10. Inspect the power cord to ensure that it is in good condition and has no nicks or cuts.
1. Unplug pump power cord from power source.
2. Remove pump from water source.
3. Disconnect any pipe or hose connected to the pump.
4. Thoroughly clean the pump and filter sponge.
5. Store the pump in frost free area with a temperature of 34°F or above.
RISK OF ELECTRICAL SHOCK: Disconnect and lockout power supply before removing or
servicing pump.
Review safety instructions before removing or servicing pump.

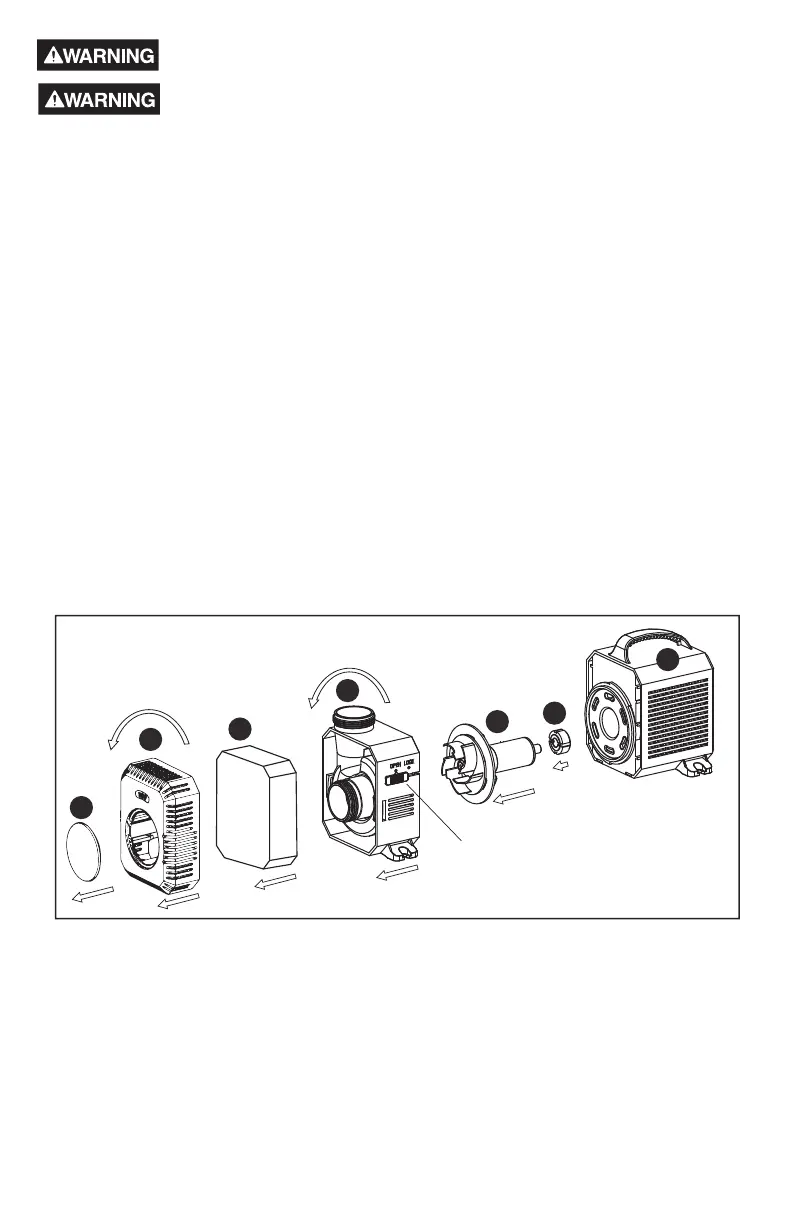

Maintenance
Open / Lock
A
B
C
D
E
F
G
