FINISH TO YOUR TASTE
There are a wide variety of “finished looks” for
these fireplaces, from formal wall decor with
elaborate mantels to rustic wood paneling or
warm brick facings.
Only noncombustible materials like stone, tile,
brick, etc., may overlap the black front facing.
Do not extend these materials beyond the
black facing and into the firebox area. Be sure
not to interfere with the installation and opera-
tion of glass doors or block the upper or lower
grilles. Seal all joints between the black facing
and wall surrounds to prevent air intrusion.
Use noncombustible caulking material only to
seal the black metal facing to the surround
material on the finished wall.
Combustible materials may project beyond
the sides of the fireplace opening as long as
they are kept within the shaded areas illus-
trated in Figures 47 and 48 .
Figure 47
Figure 48
63L25 FTF8-S4
Stabilizer 63L26 FTF10-S4
63L32 F8FS30-2
Firestop Spacer (30°) 63L37 F10FS30-2
Offset/ Return 63L23 FTF10-ES30
Package (30°) 63L22 FTF8-ES30

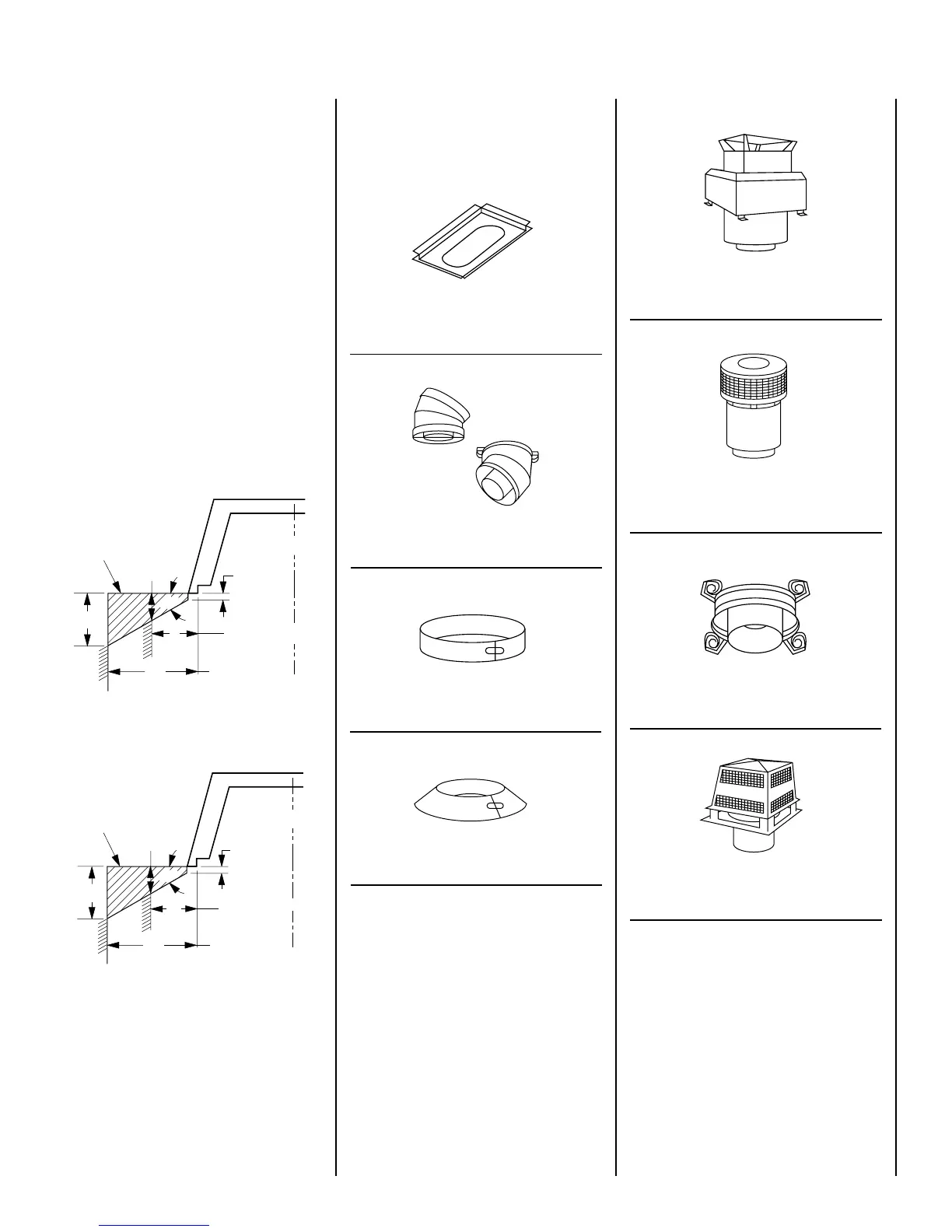

INSTALLATION COMPONENTS
The following items are available for use in the
installation of this appliance.
9 1/2"
18"
Min. Distance
To Unprotected
Side Wall
8"
30°
Combustible
Materials
Allowed In
Shaded Area
4 3/4"
1"
43" Models
Min. Distance
To Protected
Side Wall
Fireplace
7 3/4"
15"
Min. Distance
To Unprotected
Side Wall
8"
30°
Combustible
Materials
Allowed In
Shaded Area
4 3/4"
1"
38" Models
Min. Distance
To Protected
Side Wall
Fireplace
Chase Termination 63L49 FTF10-CT1
(Square) 63L48 FTF8-CT1
Chase Termination 63L46 FTF10-CTDT
(Round) 63L45 FTF8-CTDT
Chase Termination 63L52 FTF10-CT2
(Square) 63L51 FTF8-CT2
Locking Band 63L60 FLB
Model Part Number Weight
BRF-3875 037633 170 lbs.
BRF-4375 037634 190 lbs.
BCF-3885 037631 170 lbs.
BCF-4385 037632 190 lbs.
Storm Collar 63L59 FSC
