Superior VRT3542WH - Replacement Parts Identification; Ordering Replacement Parts

NOTE:DIAGRAMS&ILLUSTRATIONARENOTTOSCALE.
17
3
4
5
2
1
6
3
4
5
No. Description
VRT2536WS VRT3536WS VRT3536WH VRT3542WS VRT3542WH
Part No. Qty. Part No. Qty. Part No. Qty. Part No. Qty. Part No. Qty.
Gas Fireplace Assembly - - - - - - - -
1. Firescreen H2325 2 H2694 2 H2694 2 H2699 2 H2699 2
2. Rod, Screen H3919 2 H3919 2 H3919 2 H2700 2 H2700 2
3a. Refractory,Left H7758 1 H7762 1 H7766 1 H7762 1 H7771 1
3b. Refractory, Right H7759 1 H7761 1 H7765 1 H7761 1 H7770 1
4. Refractory, Rear H7770 1 H7764 1 H7767 1 H7768 1 H7772 1
5. Refractory, Bottom - - H7763 1 H7763 1 H7769 1 H7769 1
6. Hood H1989 1 H1989 1 H1989 1 H1990 1 H1990 1
3
4
5
2
1
6
3
4
5

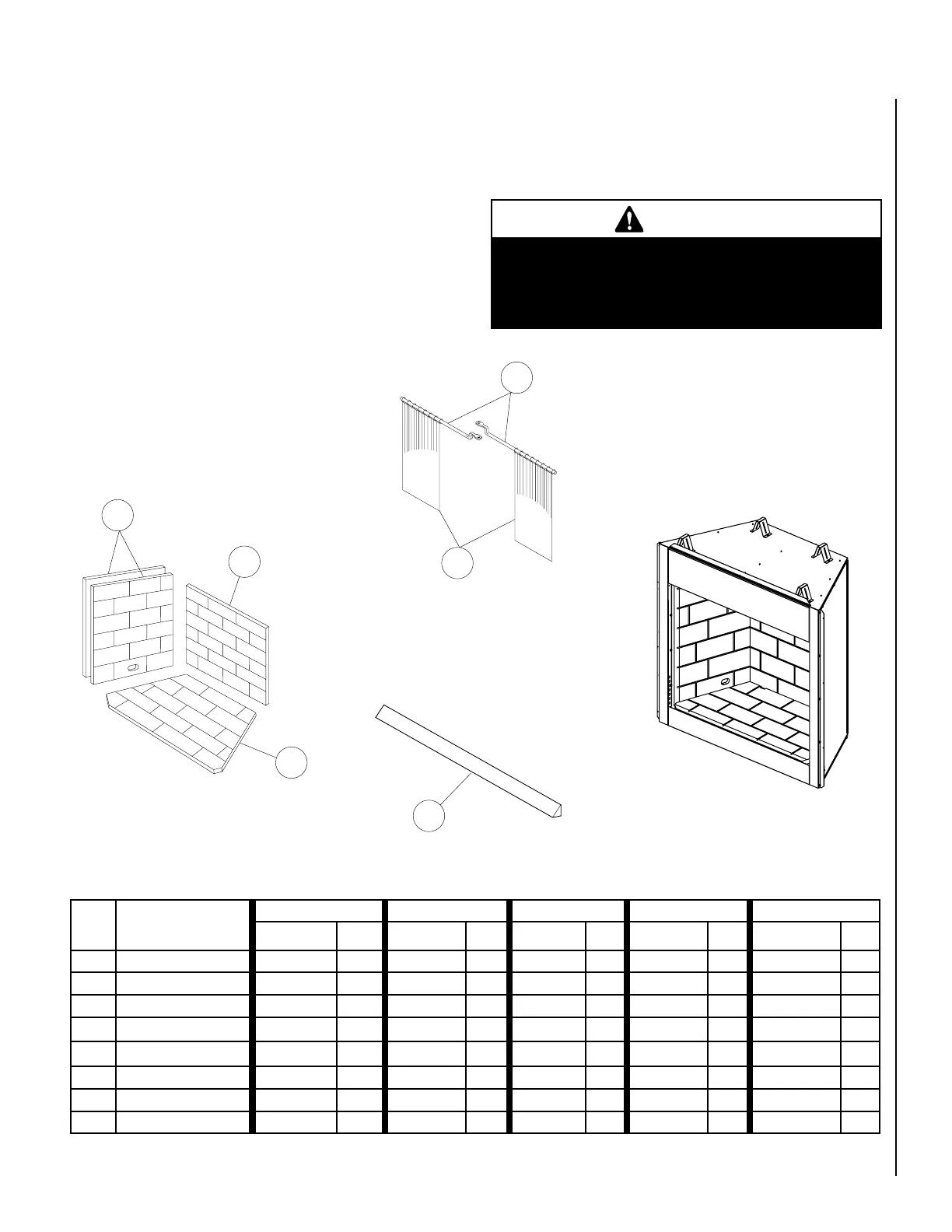

Anexplodedviewofthereboxwithnumberedpartsandareplacement
parts list can be found on the Page. Normally, all parts should be ordered
through your distributor or dealer. Parts will be shipped at prevailing
prices at time of order.
Whenorderingrepairparts,alwaysgivethefollowinginformation:
1.The*modelnumberoftherebox.
2.The*serialnumberoftherebox.
3. The part number.
4. The description of the part.
5.Thequantityrequired.
6.Theinstallationdateoftherebox.
REPLACEMENT PARTS
3
4
5
2
1
6
3
4
5
* NOTE: The model and serial number can be found on the rating label
located on the bottom left front corner of the appliance.
Ifyouencounteranyproblemsorhaveanyquestionsconcerningthe
installation of a Vent-Free heater in this system, please contact your dis-
tributor or dealer or visit our website at www.SuperiorFireplaces.us.com.
WARNING
Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this appliance may result in property
damage or personal injury.
