A2SDi-HLN4F Series User's Manual
Power LED

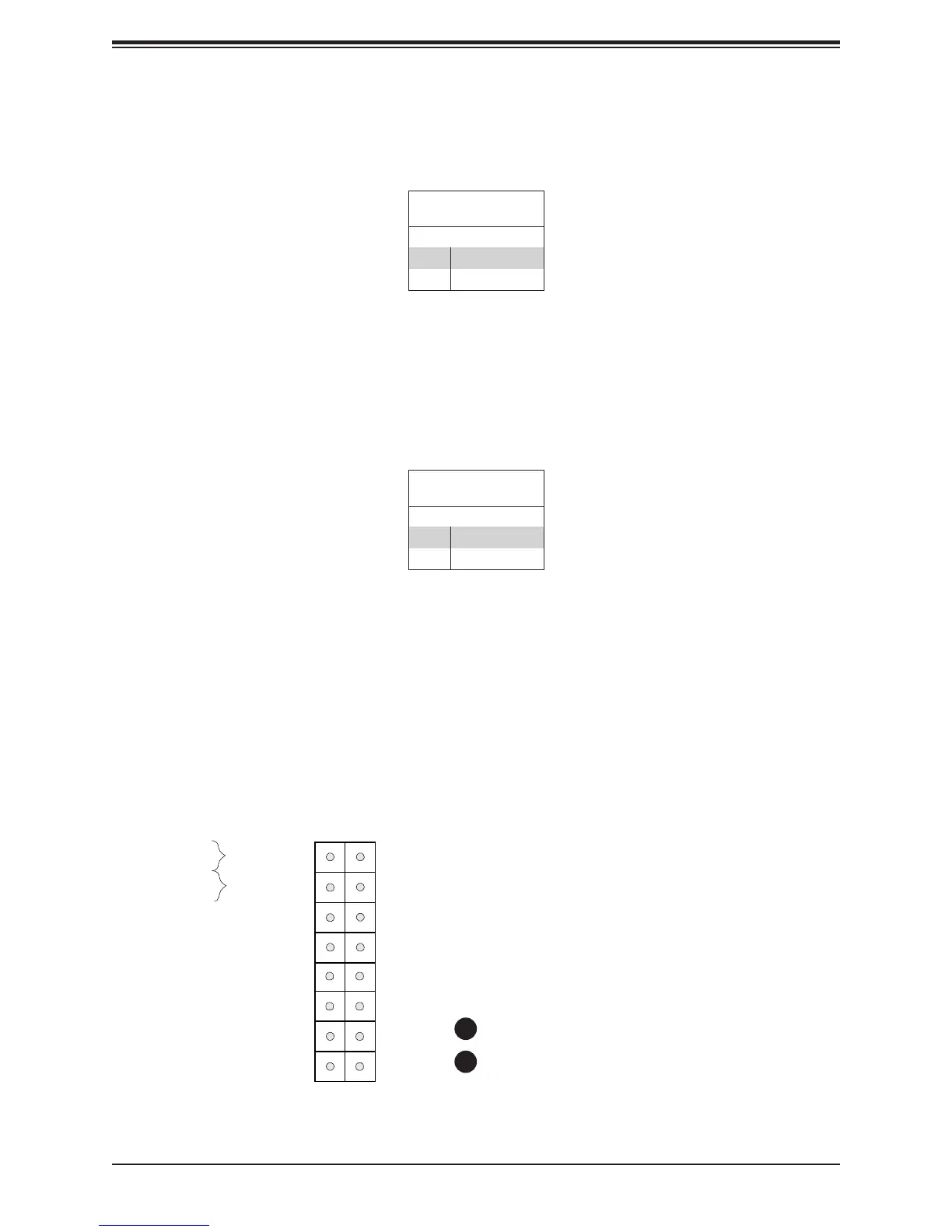

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin denitions.
HDD LED
The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate
the status of HDD-related activities, including SATA. Refer the table below for pin denitions.
Power Button
OH/Fan Fail LED
NIC1 Activity LED
Reset Button
HDD LED
PWR LED
Reset
PWR
3.3V Stby
3.3V Stby
Ground
15
3.3V Stby
16
1 2
Ground
NIC2 Activity LED
Power Fail LED
UID
3.3V
3.3V
1
2
1. PWR LED
2. HDD LED
Power LED
Pin Denitions (JF1)
Pin# Denition
15 +3.3V
16 Pwr LED
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 3.3V Stby
14 HDD LED
