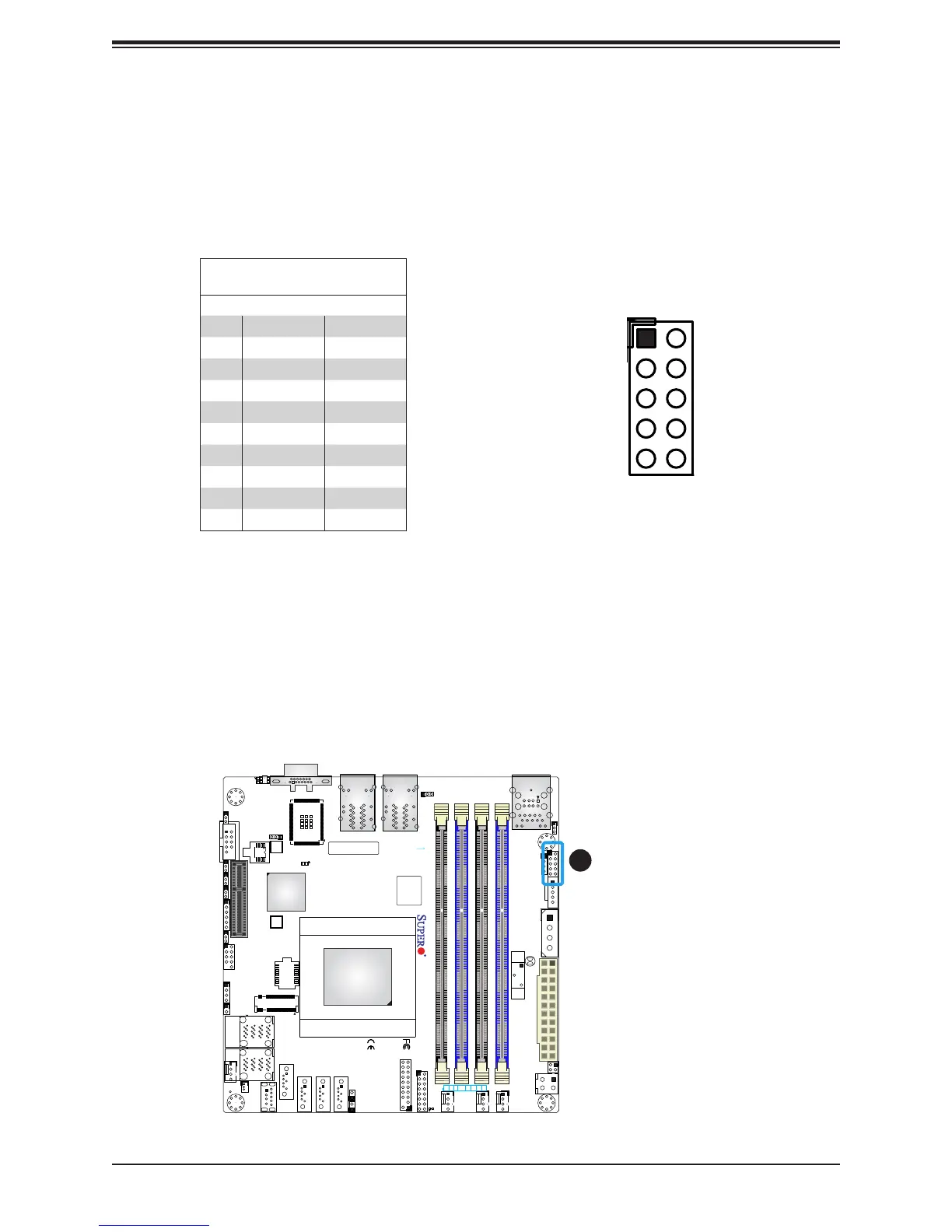

1. JGP1
General Purpose I/O Header
JGPIO1 is a 10-pin general purpose I/O header located near the IPMI port. Each pin can be
congured to be an input or output pin. The GPIO is controlled via the PCA9554 8-bit GPIO
expansion. The base address is 0xF040(D31:F4).
JGP1 Header
Pin Denitions
Pin# Denition
1 +5V +5V
2 Ground Ground
3 GP0 GPP_E0
4 GP1 GPP_F1
5 GP2 GPP_E1
6 GP3 GPP_F2
7 GP4 GPP_E2
8 GP5 GPP_F3
9 GP6 GPP_F0
10 GP7 GPP_F4
