Chapter 2: Installation
DIMM Installation
1. Install the desired number of SODIMMs into the memory slots, starting with DIMMA1,
DIMMB1, then DIMMA2, DIMMB2.
2. Align the key on the bottom of the SODIMM module against the receptive point on
the memory slot. Take note of the notches on the side of the DIMM module and of the
locking clips on the socket to avoid causing damage.
3. Press the SODIMM module straight down into the socket with both hands until it is
securely seated in the socket. The side clips will automatically lock the module into
place.
DIMM Removal
Use your thumbs to push the side clips away from the module to release it from the socket.

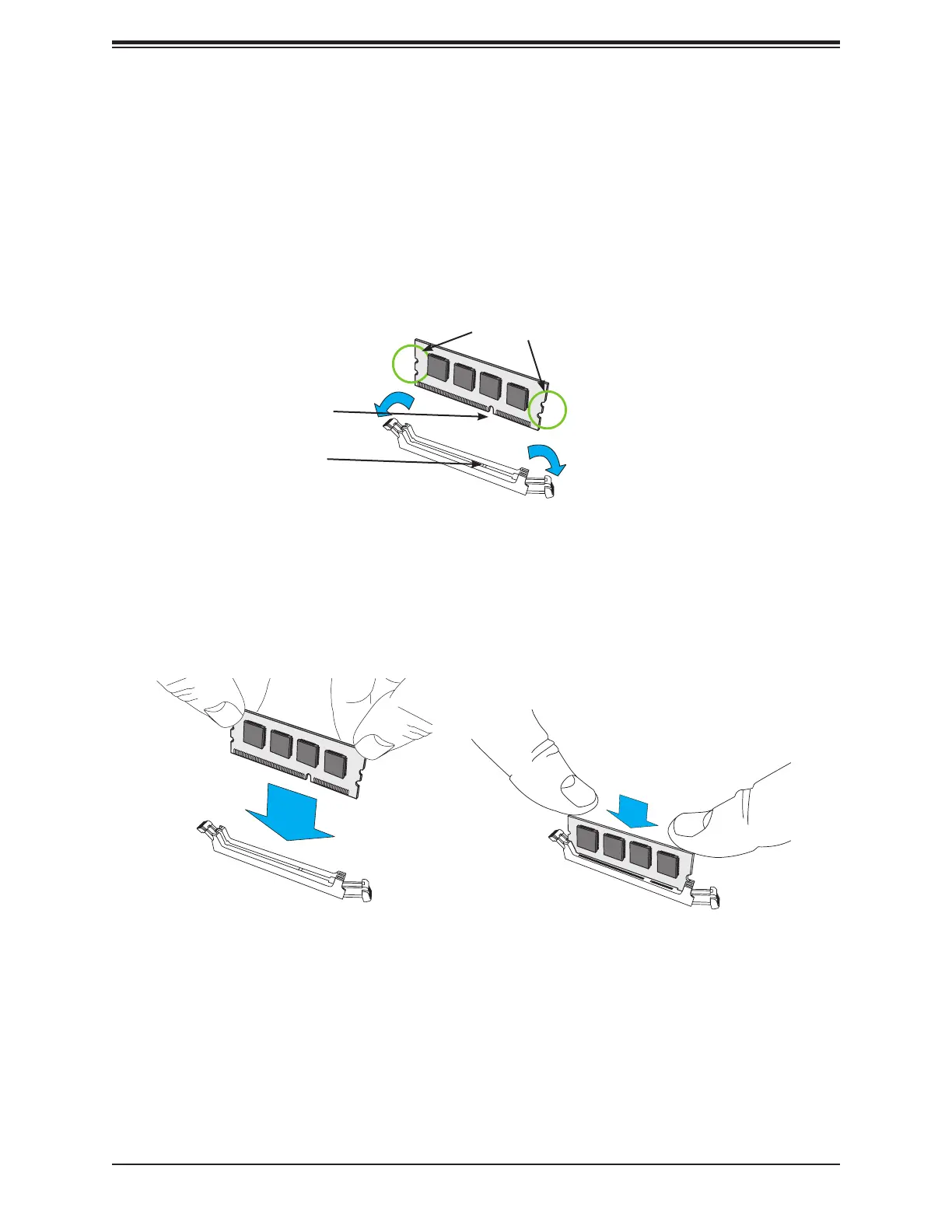

Module Notch
Module Key
Socket Key
