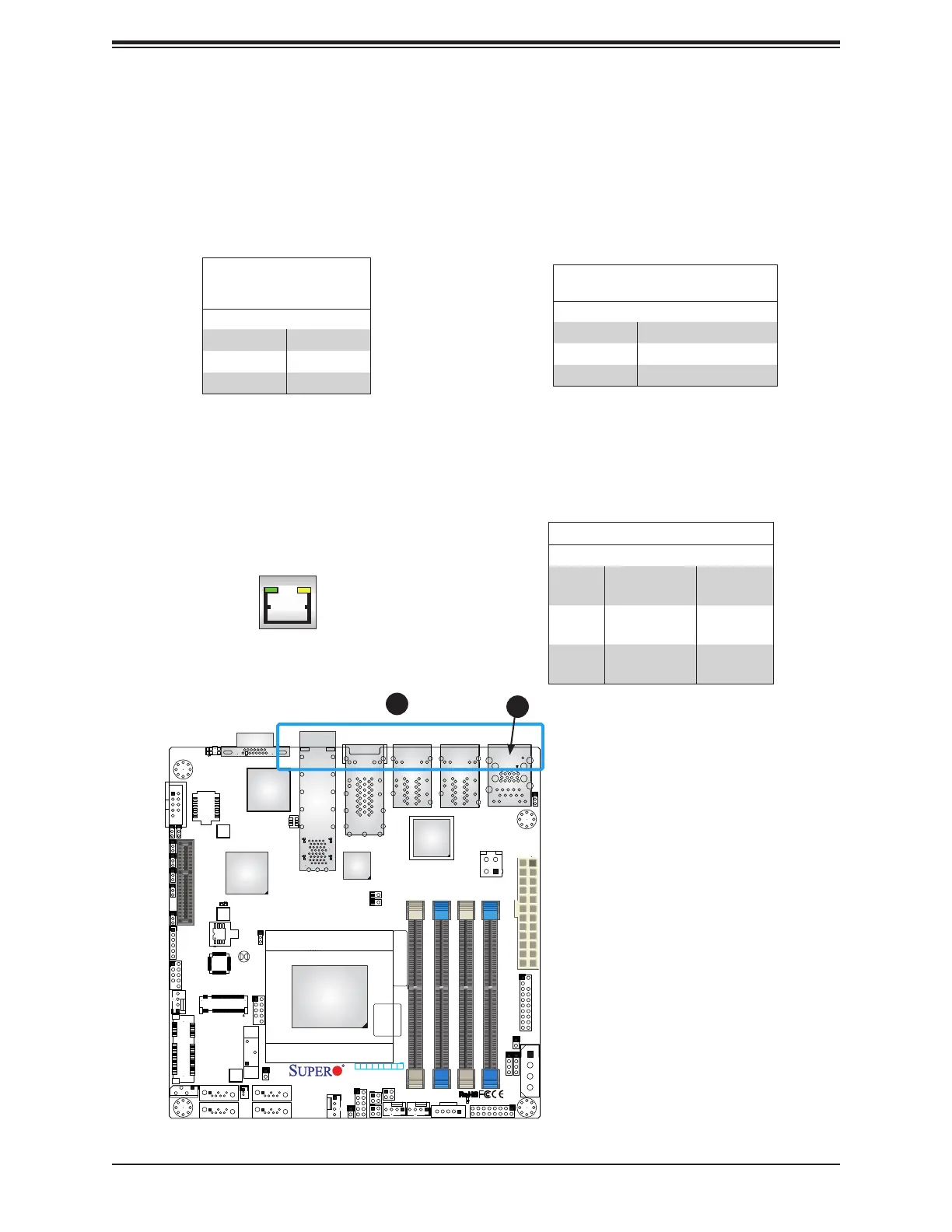

2.9 LED Indicators
LAN1~4 LEDs
Each Ethernet port on the I/O back panel has two LEDs. One LED indicates activity when
ashing while the other LED may be green, amber or off to indicate the speed of the
connection.
LAN1~4 LED
(Connection Speed
Indicator)
LED Color Denition
Off 10 Mb/s
Green 100 Mb/s
Amber 1 Gb/s
IPMI LAN LEDs
A dedicated IPMI LAN is also included on the motherboard. The amber LED on the right of
the IPMI LAN port indicates activity, while the green LED on the left indicates the speed of
the connection. Refer to the table below for more information.
IPMI LAN LEDs
Color Status Denition
Off Off
No
Connection
Solid
Green
Link/Speed
(Left)
100 Mb/s
Blinking
Amber
Activity
(Right)
Active
IPMI LAN
Activity LEDLink LED
LAN 1/LAN 2
IPMI LAN
(X8ST3-F)
COM1
BIOS LICENSE
BAR CODE
A2SDi-LN4F
REV:1.02
DESIGNED IN USA
JPH1
1
JGP1
1
JBT1
JSMB1
JD1
C
A
LEDT1
C
A
LEDT3
LEDT2
A
C
LEDT4
A
C
LED1
1
JTGLED2
1
JLANLED1
1
JTGLED1
OSC1
JI2C2
1
JI2C1
1
JPTG1
JPG1
JPL1
1
JPME2
1
JWD1
JBR1
JPV1
BT1
SRW1
JL1
1
JRT3
JRT4
LED2
A
C
C
A
LEDM1
JMP1
PRESS FIT
1
JMD1
SRW4
SRW3
1
JSD1
FANA
1
FAN3
1
1
FAN1
1
FAN2
JPI2C1
I-SATA1
I-SATA0
I-SATA3
I-SATA2
JF1
1
JTPM1
JPW1
PCI-E 3.0 X4 / I-SATA
IPMI LAN
MANUFACTURING MODE
LAN7
LAN8
LAN1
LAN3
DIMMB1 DIMMB2
DIMMA2 DIMMA1
ALWAYS POPULATE DIMMx1 FIRST
Intel Atom SoC
FCBGA1310
CPU
USB4/5
USB2/3
USB0/1 (3.0)
LAN4
LAN2
LAN5
LAN6
VGA
SUPERDOM
PWR
ON
JF1
CPU SLOT7 PCI-E 3.0 X4
RST
FAIL
PS
LED
UIDNIC
2
NIC
1LED
HDD
PWR
LED
1-2:ENABLE
2-3:DISABLE
JPG1:
2-3:DISABLE 1-2:ENABLE
VGA
JPL1:
2-3:DISABLE
1-2:ENABLE
JI2C2:
1-2:ENABLE
2-3:DISABLE
JI2C1:
UID
2-3:ME
1-2:NORMAL
JPME2:
JPH1
Intel
i350-AM4
BMC
AST2400
1
1. LAN Port LEDs
2. Dedicated IPMI LAN LED
2
LAN5/6 10G LED
(Connection Speed Indicator)
LED Color Denition
Off No Connection
Green 10G
Amber 1G
