Supermicro A2SDi-TP8F User Manual

33
Chapter 2: Installation
Power LED
The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below
for pin denitions.
HDD LED
The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate
the status of HDD-related activities, including IDE, SATA activities. Refer to the table below
for pin denitions.
NIC1/NIC2 (LAN1/LAN2)
The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins
11 and 12 of JF1, and the LED connection for LAN Port 2 is on Pins 9 and 10. NIC1 LED
and NIC2 LED are 2-pin NIC LED headers. Attach NIC LED cables to NIC1 and NIC2 LED
indicators to display network activities. Refer to the table below for pin denitions.

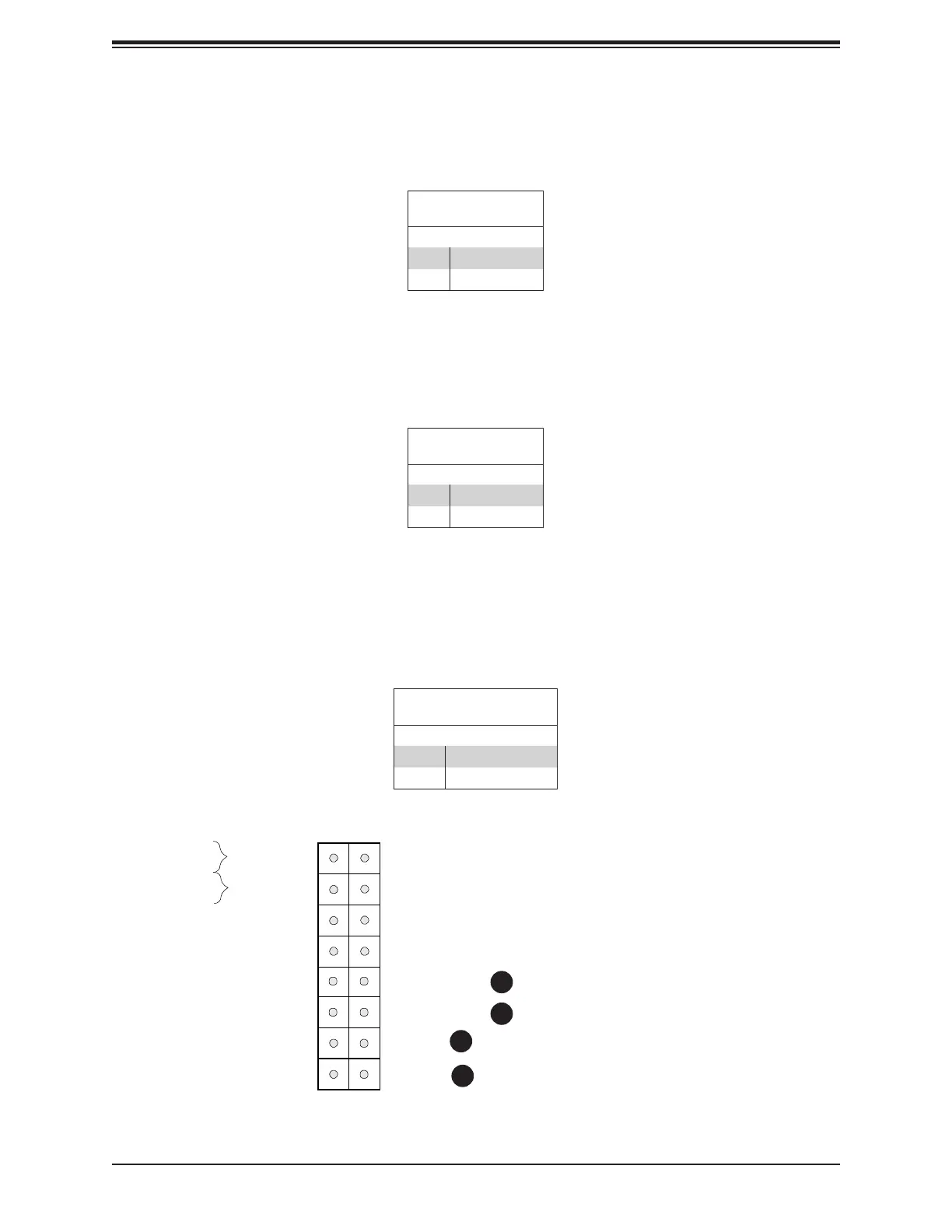

Power Button
UID LED
NIC1 Active LED
Reset Button
HDD LED
PWR LED
Reset
PWR
3.3V
3.3V Stby
3.3V Stby
Ground
15
3.3V Stby
3.3 V
OH/Fan Fail LED
16
1 2
Ground
Power Fail LED
NIC2 Active LED
1
4
3
2
1. PWR LED
2. HDD LED
3. NIC1 LED
4. NIC2 LED
Power LED
Pin Denitions (JF1)
Pins Denition
15 +3.3V
16 PWR LED
HDD LED
Pin Denitions (JF1)
Pins Denition
13 +3.3V Stby
14 HD LED
LAN1/LAN2 LED
Pin Denitions (JF1)
Pins Denition
9/11 +3.3V Stby
10/12 LAN Activity LED
