Supermicro A2SDi-TP8F User Manual

49
Chapter 2: Installation

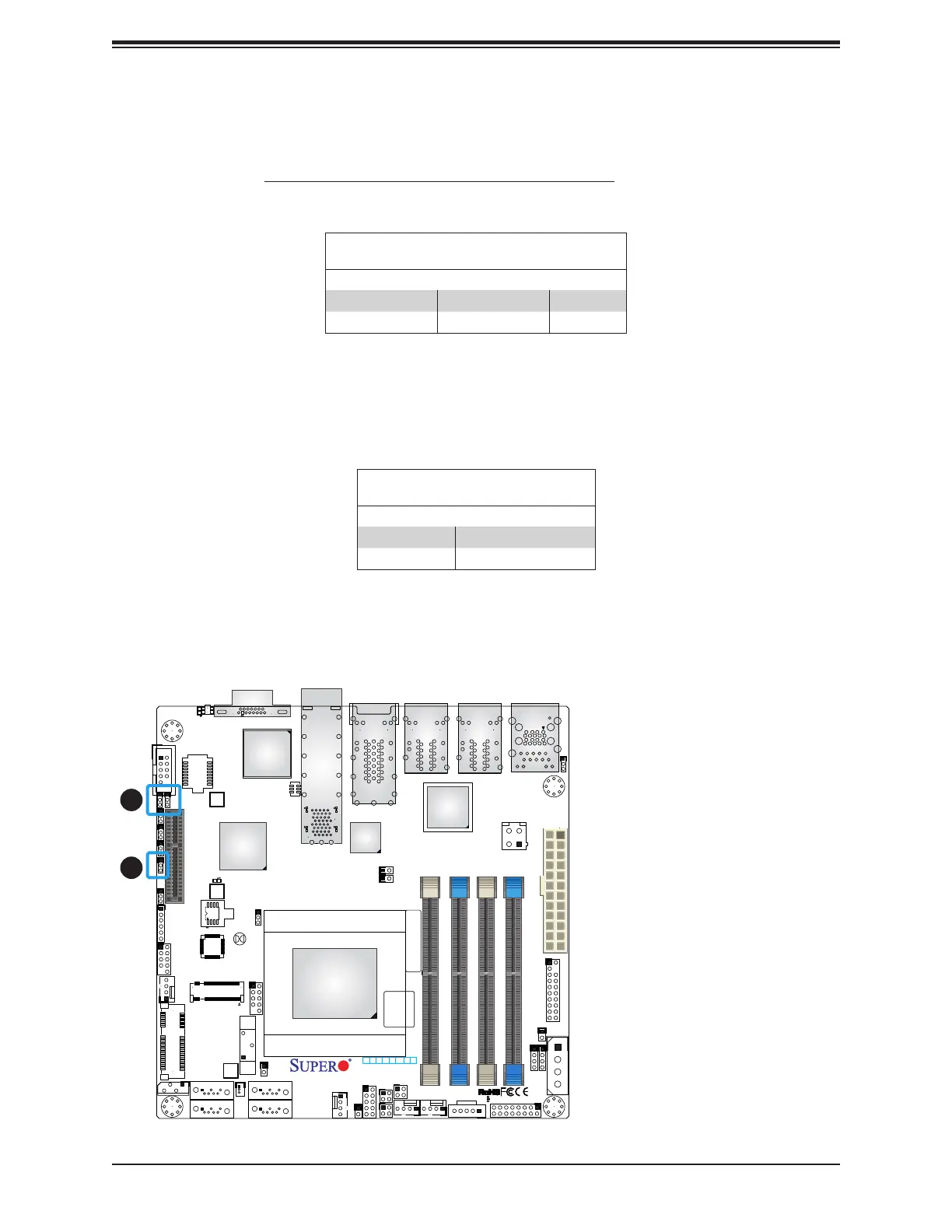

SMBus to PCI Slots
Jumpers JI
2
C1 and JI
2
C2 allow you to connect the System Management Bus (I
2
C) to the
PCI-E/PCI slots. Both jumpers must be set to the same setting (JI
2
C1 controls the clock and
JI
2
C2 controls the data). The default setting is set to pins 2-3 (Disabled).
SMBus to PCI Slots
Jumper Settings
JI
2
C1 Setting JI
2
C2 Setting Denition
JI
2
C1: Pins 1-2 JI
2
C2: Pins 1-2 Enabled
JI
2
C1: Pins 2-3 JI
2
C2: Pins 2-3 Disabled
COM1
BIOS LICENSE
BAR CODE
A2SDi-LN4F
REV:1.02
DESIGNED IN USA
JPH1
1
JGP1
1
JBT1
JSMB1
JD1
C
A
LEDT1
C
A
LEDT3
LEDT2
A
C
LEDT4
A
C
LED1
1
JTGLED2
1
JLANLED1
1
JTGLED1
OSC1
JI2C2
1
JI2C1
1
JPTG1
JPG1
JPL1
1
JPME2
1
JWD1
JBR1
JPV1
BT1
SRW1
JL1
1
JRT3
JRT4
LED2
A
C
C
A
LEDM1
JMP1
PRESS FIT
1
JMD1
SRW4
SRW3
1
JSD1
FANA
1
FAN3
1
1
FAN1
1
FAN2
JPI2C1
I-SATA1
I-SATA0
I-SATA3
I-SATA2
JF1
1
JTPM1
JPW1
PCI-E 3.0 X4 / I-SATA
IPMI LAN
MANUFACTURING MODE
LAN7
LAN8
LAN1
LAN3
DIMMB1 DIMMB2
DIMMA2 DIMMA1
ALWAYS POPULATE DIMMx1 FIRST
Intel Atom SoC
FCBGA1310
CPU
USB4/5
USB2/3
USB0/1 (3.0)
LAN4
LAN2
LAN5
LAN6
VGA
SUPERDOM
PWR
ON
JF1
CPU SLOT7 PCI-E 3.0 X4
RST
FAIL
PS
LED
UIDNIC
2
NIC
1LED
HDD
PWR
LED
1-2:ENABLE
2-3:DISABLE
JPG1:
2-3:DISABLE 1-2:ENABLE
VGA
JPL1:
2-3:DISABLE
1-2:ENABLE
JI2C2:
1-2:ENABLE
2-3:DISABLE
JI2C1:
UID
2-3:ME
1-2:NORMAL
JPME2:
JPH1
Intel
i350-AM4
BMC
AST2400
1
1. SMBus to PCI Slots
2. 10Gb LAN Enable/Disable
2
JPTG1
Use this jumper to enable 10Gb LAN support. Refer to the table below for jumper settings.
10Gb LAN Enable/Disable
Jumper Settings
Jumper Setting Denition
Pins 1-2 Enabled
Pins 2-3 Disabled
