Supermicro AOC-S100GC-i2C User Manual

2-2
Super AOC-S100GC-i2C Add-On Card User's Guide
REV:1.02
AOC-S100GC-i2C
DESIGNED IN USA
LED1
LED2
J4
JP2
PORT1 PORT2
JNCSI1
JP4
JP1
1
5
1
4
1
3
1
2
1
1
1
6
1
7
1
8
1
9
2-2 Major Onboard Components

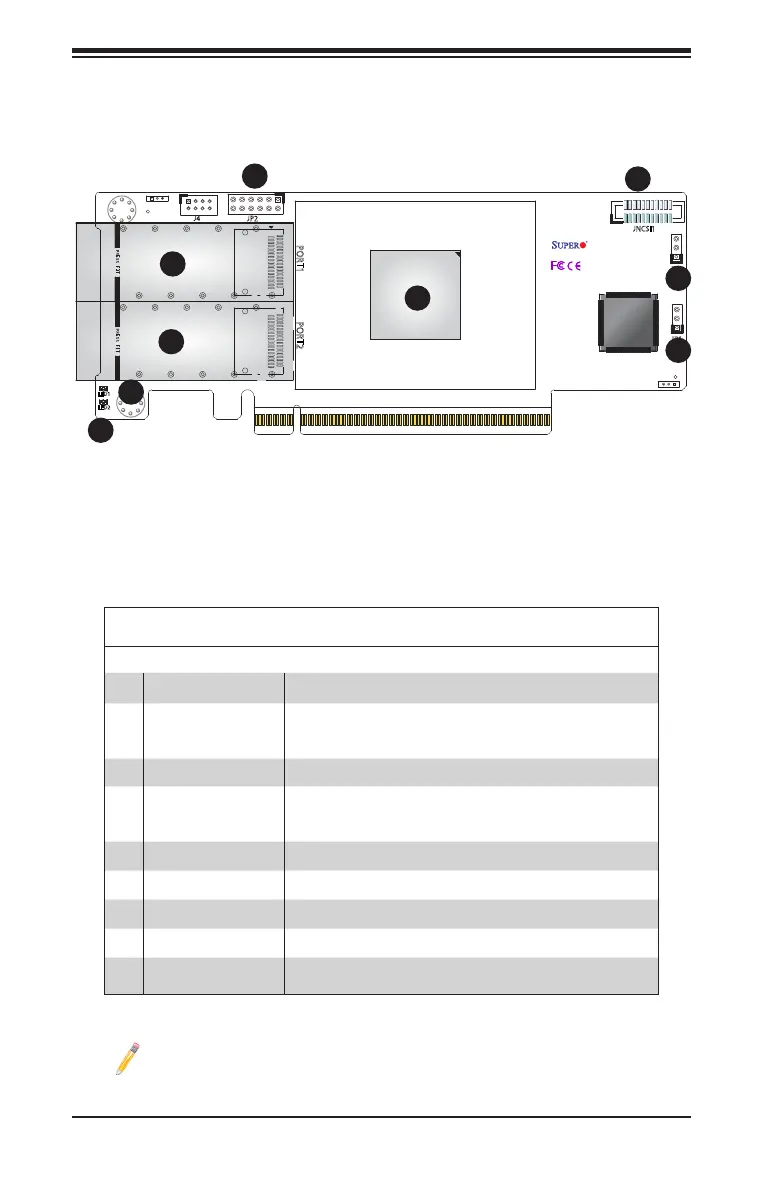

AOC-S100GC-i2C Layout
AOC-S100GC-i2C Major Components
No Component Name Denition
1 Intel E810-CAM2 Intel E810-CAM2
2 JP1
1-2: SMBUS ARP mode (default)
2-3: Static SMBUS address mode
3 JP2 Jumper
4 JP4
1-2: Standby Mode disabled (default)
2-3: Standby Mode enabled
5 QSFP28 Quad Small Form-Factor Pluggable 28
6 QSFP28 Quad Small Form-Factor Pluggable 28
7 LED1 QFSP28 Port 1 Link/Active LED
8 LED2 QFSP28 Port 2 Link/Active LED
9 JNCSI1 NCSI header
Note: Please consult with Supermicro before enabling JP4.
