Chapter 2: Hardware Components

2-3

REV:1.02

AOC-S100GC-i2C

DESIGNED IN USA

LED1

LED2

JP2

PORT1 PORT2

JNCSI1

JP4

JP1

2-3 QSFP28 Ethernet Connections

QSFP28 Port

A Quad-Small-Form-Factor-Pluggable 28 (QSFP28) connector is located at J2/J3

on the add-on card. The QSFP28 ports operate at up to 100Gb/s. Plug the Direct

Attached Copper (DAC) cable into the QSFP28 ports for network connections. See

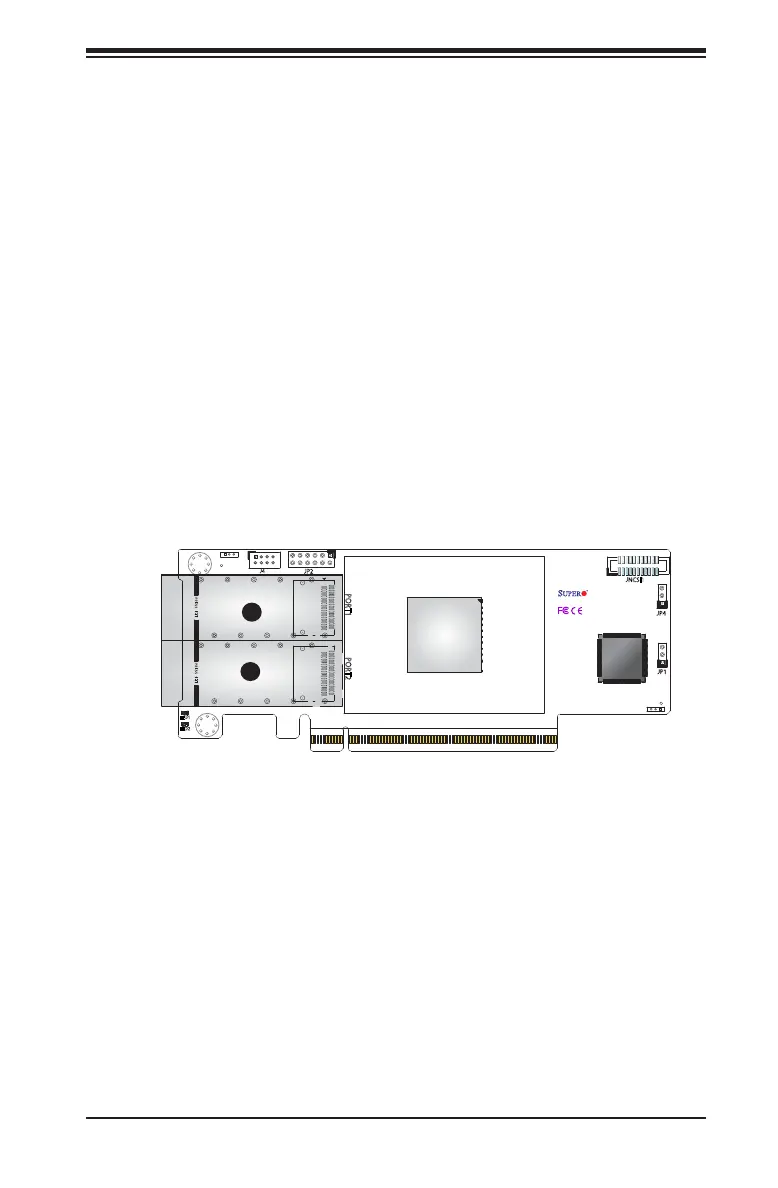

the layout below for the location.

1. QSFP28

2. QSFP28
