Supermicro AOC-S100GC-i2C User Manual

2-4
Super AOC-S100GC-i2C Add-On Card User's Guide
REV:1.02
AOC-S100GC-i2C
DESIGNED IN USA
LED1
LED2
J4
JP2
PORT1 PORT2
JNCSI1
JP4
JP1
1
2
1
1
2-4 NC-SI Header & PCI-E 4.0 x16 Connector
NC-SI Header
A Network-Controller Sideband Interface (NC-SI) header is located at JNCSI1 on
the add-on card. Connect an appropriate cable from this header to a motherboard
to provide an out-of-band (sideband) connection between the onboard Intel® E810-
CAM2 Controller and a Network Interface Controller (NIC) for remote management.
For the network sideband interface to work properly, you will need to use a mother-
board that supports NC-SI and also need to have a special cable. Please contact
Supermicro at www.supermicro.com to purchase the cable for this header. See the
layout below for the location of the JNCSI1 header.
PCI-E 4.0 x16 Connector
Insert the PCI-E 4.0 x16 connector into a PCI-E 4.0 x16 slot on a motherboard to
use this add-on card. See the layout below for the location.

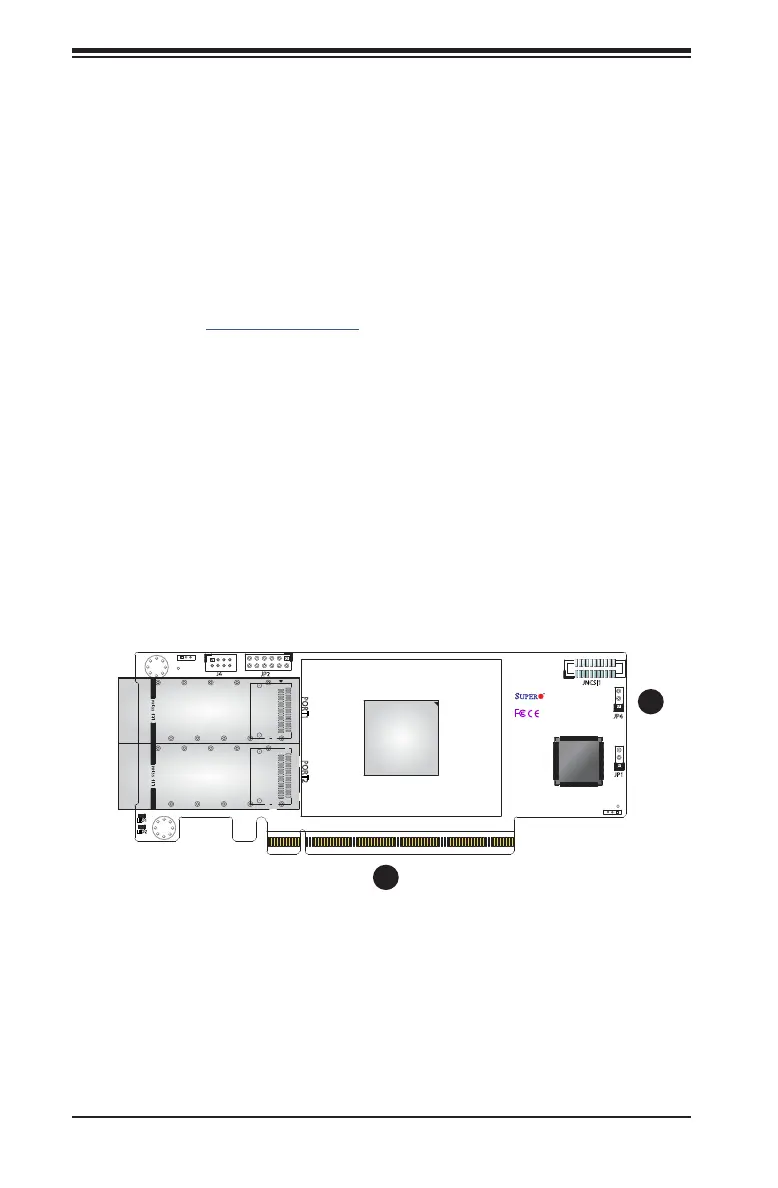

1. NS-CI Header
2. PCI-E 4.0 x16 Connector
