Supermicro Supero X9SCi-LN4 User Manual

2-34
X9SCi-LN4/X9SCi-LN4F/X9SCA/X9SCA-F User's Manual

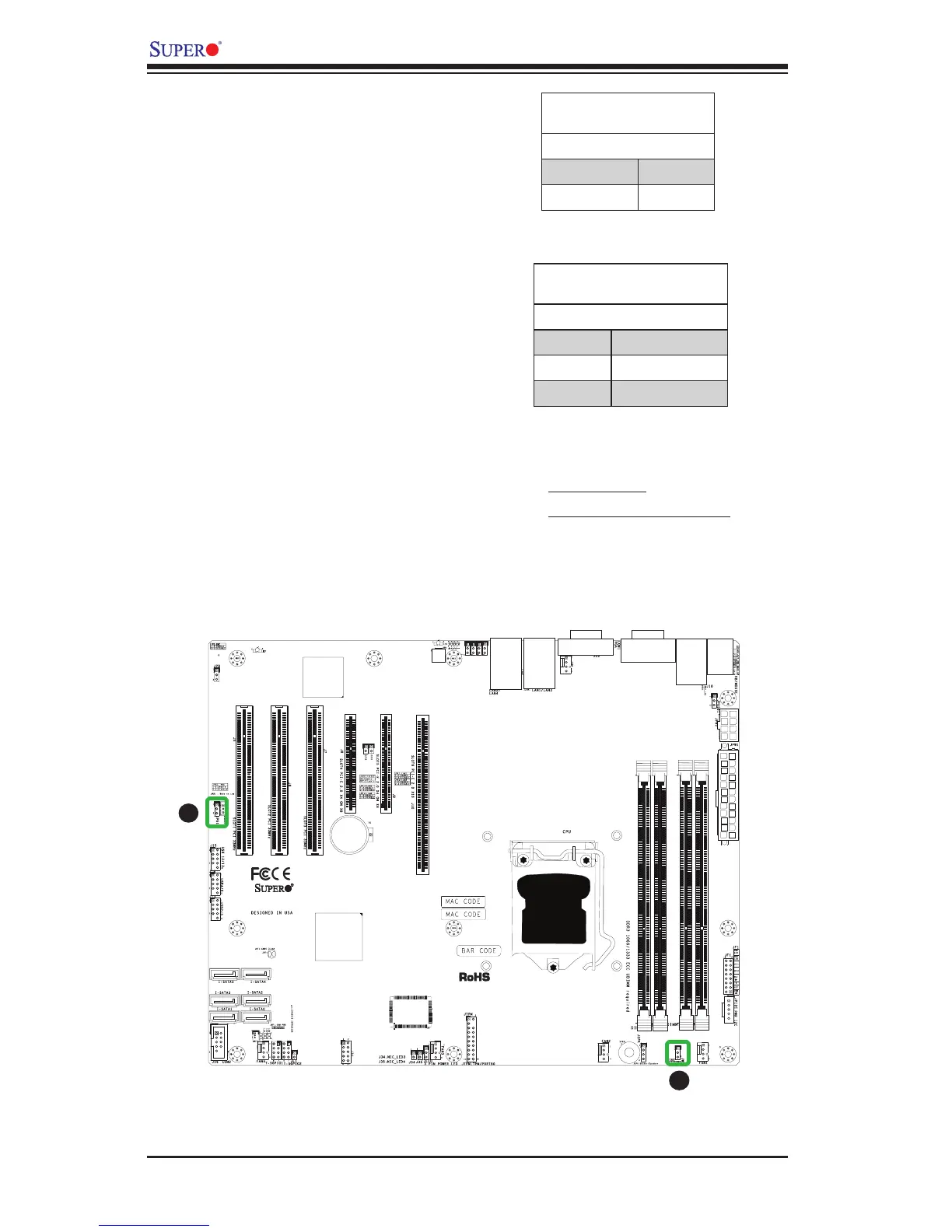

B
A
A. VGA Enable
B. Watch Dog Timer Enable
VGA Enable/Disable
Jumper Settings (JPG1)
Both Jumpers Denition
Pins 1-2 Enabled
Pins 2-3 Disabled
VGA Enable (JPG1)
JPG1 allows you to enable or disable
the onboard VGA connector. The default
position is on pins 1 and 2 to enable
VGA. See the table on the right for
jumper settings.
Watch Dog Enable (JWD)
Watch Dog (JWD) is a system moni-
tor that can reboot the system when a
software application hangs. Close Pins
1-2 to reset the system if an applica-
tion hangs. Close Pins 2-3 to generate
a non-maskable interrupt signal for the
application that hangs. See the table on
the right for jumper settings. Watch Dog
must also be enabled in the BIOS.
Watch Dog
Jumper Settings
Jumper Setting Denition
Pins 1-2 Reset (default)
Pins 2-3 NMI
Open Disabled

Supermicro Supero X9SCi-LN4 Specifications

General

CPU Socket	LGA 1155
Chipset	Intel C204
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32 GB
Storage Interfaces	SATA
Form Factor	Micro ATX
SATA	6 x SATA 3.0 Gb/s
LAN	Intel 82574L
Video Outputs	VGA
USB Ports	6 x USB 2.0 (2 rear, 4 via header)
