19
Chapter 2: Maintenance and Component Installation
Insert this
end rst
Press down until the module
locks into place.
Locking clip
3. Insert the SODIMM module vertically at a 45 degree angle. Press down until the module
locks into place.
4. The side clips automatically secure the SODIMM module, locking it into place.
Align

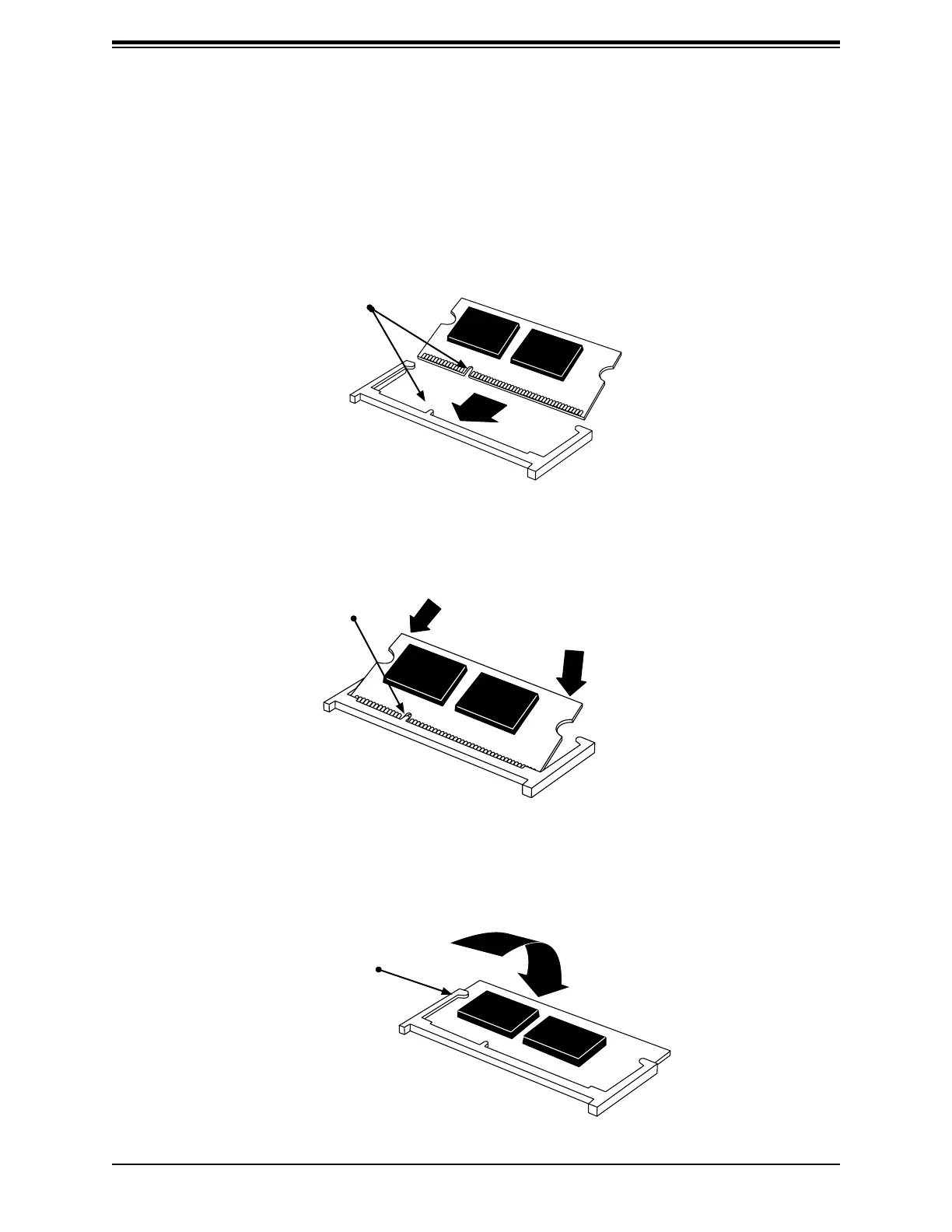

SO-DIMM Installation
1. Power down the system as described in Section 2.1 and remove the cover as described
in Section 2.2
2. Position the SODIMM module's bottom key so it aligns with the receptive point on the
slot.
