Supermicro X10DRL-i SUPERO User Manual

2-6
X10DRL-i Motherboard User’s Manual
Gently push
down to pop the
load plate open.

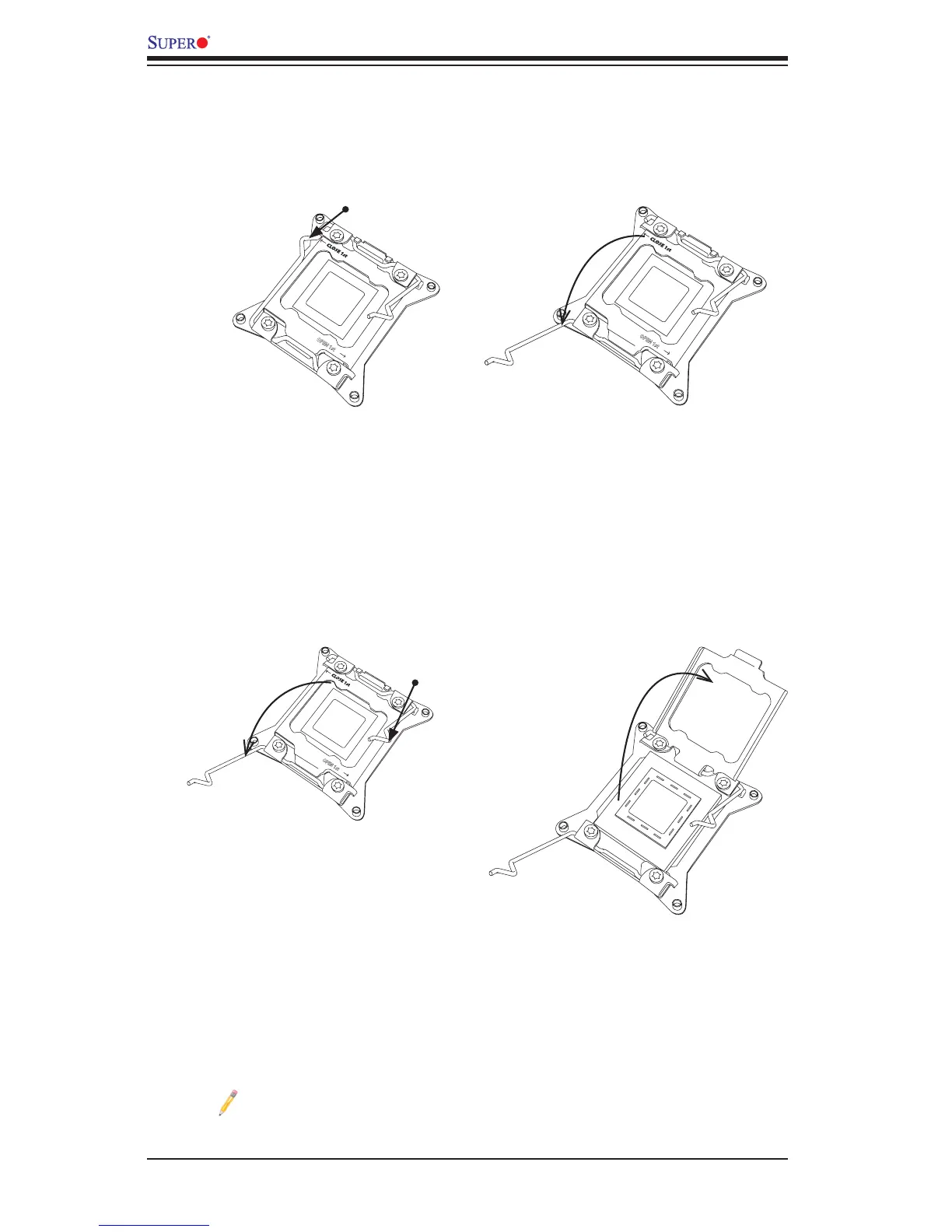

2. Press the second load lever labeled 'Close 1st' to release the load plate that
covers the CPU socket from its locking position.
3. With the lever labelled 'Close 1st' fully retracted, gently push down on the
lever labelled 'Open 1st' to open the load plate. Lift the load plate to open it
completely.
OPEN 1st
OPEN 1st
1
2
Press down on Load
Lever 'Close 1st'
OPEN 1st
1
Pull lever away from
the socket
2
Note: All graphics, drawings and pictures shown in this manual are for il-
lustration only. The components that came with your machine may or may
not look exactly the same as those shown in this manual.

Supermicro X10DRL-i SUPERO Specifications

General

Form Factor	ATX
Chipset	Intel C612
Integrated Graphics	ASPEED AST2400
Socket	LGA 2011-3
Memory Support	DDR4 ECC RDIMM and LRDIMM
Memory Slots	8 DIMM slots
Storage	10 SATA3 (6Gbps)
USB Ports	4x USB 3.0 ports (2 rear, 2 via header) 6x USB 2.0 ports (2 rear, 4 via header)
RAID Support	RAID 0, 1, 5, 10
IPMI	Yes, with dedicated LAN port
BIOS	AMI BIOS
Networking	Dual Gigabit Ethernet LAN ports (Intel i210)
