Supermicro X10DRL-i SUPERO User Manual

Chapter 2: Installation
2-9
OPEN 1st
Motherboard
Screw#1
Screw#2

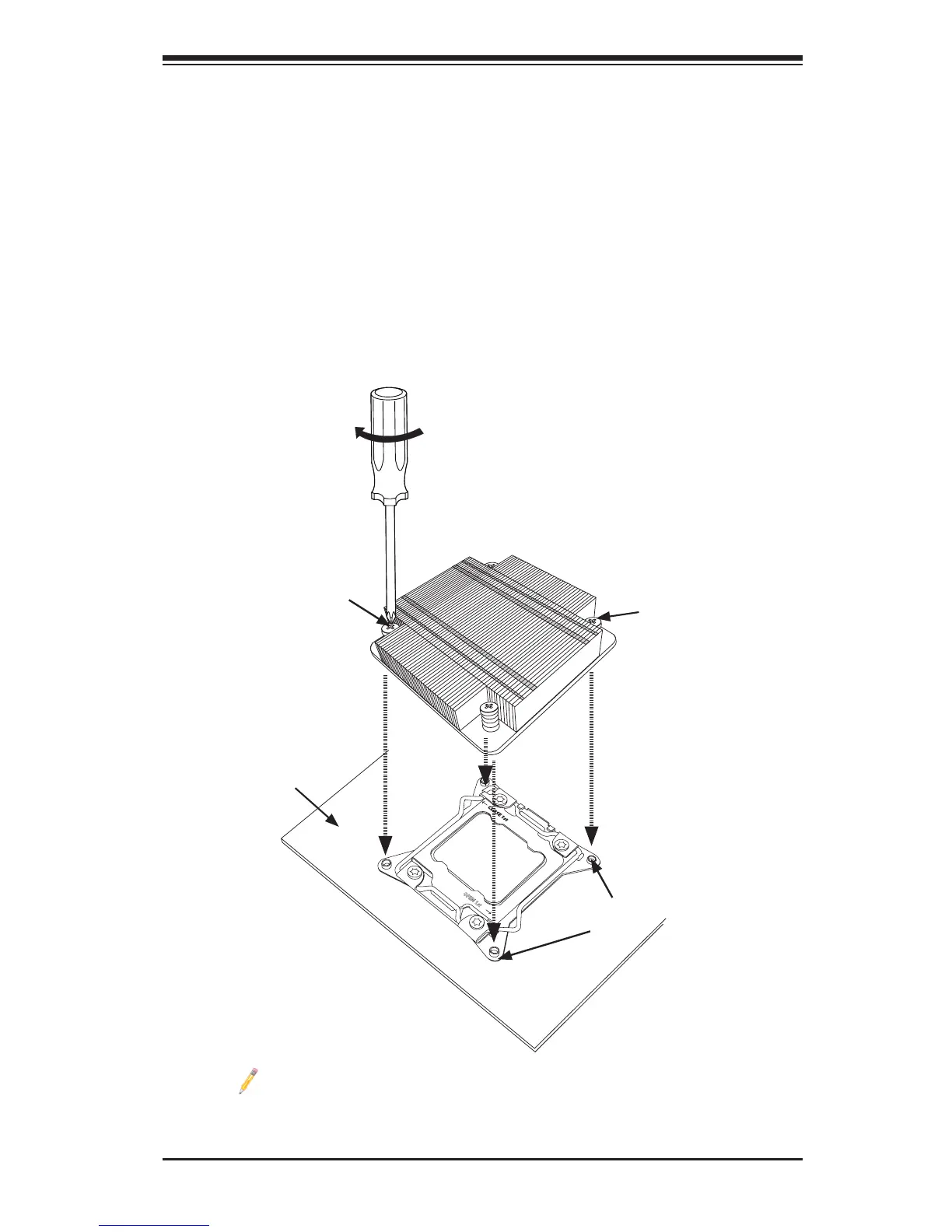

Installing a Passive CPU Heatsink
1. Do not apply any thermal grease to the heatsink or the CPU die -- the re-
quired amount has already been applied.
2. Place the heatsink on top of the CPU so that the four mounting holes are
aligned with those on the Motherboard and the Heatsink Bracket underneath.
3. Screw in two diagonal screws (i.e., the #1 and the #2 screws) until just snug
(-do not over-tighten the screws to avoid possible damage to the CPU.)
4. Finish the installation by fully tightening all four screws.
Mounting Holes
Note: For optimized airow, please follow your chassis airow direction
to install the correct CPU heatsink direction. Graphic drawings included
in this manual are for reference only. They might look different from the
components installed in your system.

Supermicro X10DRL-i SUPERO Specifications

General

Form Factor	ATX
Chipset	Intel C612
Integrated Graphics	ASPEED AST2400
Socket	LGA 2011-3
Memory Support	DDR4 ECC RDIMM and LRDIMM
Memory Slots	8 DIMM slots
Storage	10 SATA3 (6Gbps)
USB Ports	4x USB 3.0 ports (2 rear, 2 via header) 6x USB 2.0 ports (2 rear, 4 via header)
RAID Support	RAID 0, 1, 5, 10
IPMI	Yes, with dedicated LAN port
BIOS	AMI BIOS
Networking	Dual Gigabit Ethernet LAN ports (Intel i210)
