Supermicro X12 Series User Manual

Chapter 1: Configuring VROC RAID Settings
11
1.2 Configuring RAID Settings

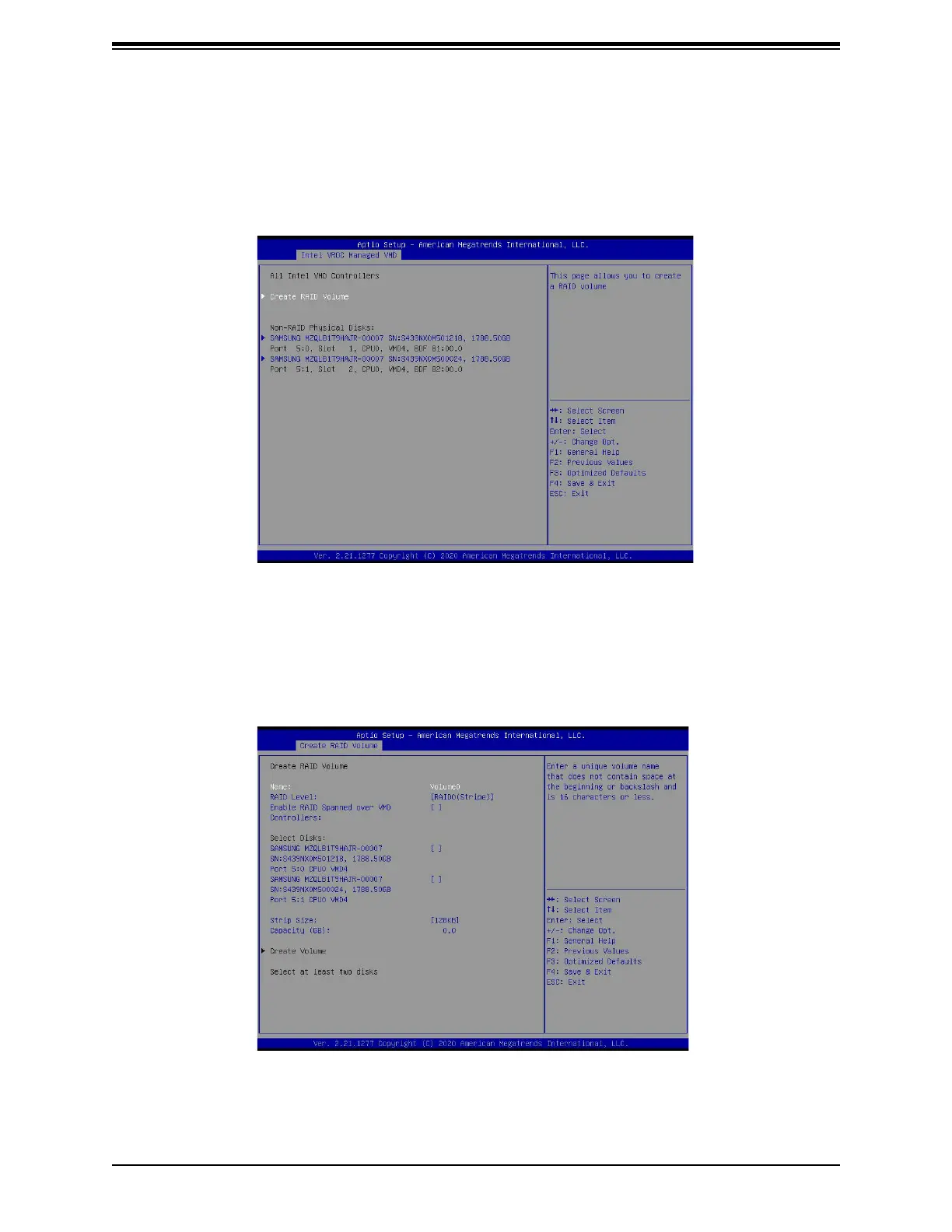

Follow the instructions provided in Section 1.1 to access the All Intel VMD Controllers
submenu as show in the screen below. Please carefully follow the instructions listed in this
section to configure RAID settings for your devices as desired.
To Create a RAID Volume
From the screen above, use the arrow keys to select Create RAID Volume and press <Enter>
to enter the Create RAID Volume submenu as shown below. The Create RAID Volume
submenu will allow you to create and configure the settings of the RAID volume as you
desire.

Supermicro X12 Series Specifications

General

Chipset	Intel C621A
Memory Type	DDR4
Form Factor	ATX, EATX
PCIe Slots	Varies by model
M.2 Slots	Varies by model
SATA Ports	Varies by model
Network Ports	Varies by model
USB Ports	Varies by model
Supported CPU	Intel Xeon Scalable processors
RAID Support	Hardware RAID support (varies by model)
