Super X13DAI-T User's Manual
1. Align peek nut (marked A) on the heatsink against threaded fastener (marked a) on the
CPU socket. Then align peek nuts (marked B, C, D) on the heatsink against threaded
fasteners (marked b, c, d) on the CPU socket, making sure that all peek nuts on the
heatsink are properly aligned with the correspondent threaded fasteners on the CPU
socket.
2. Once they are aligned, gently place the heatsink on top of the CPU socket, making sure
that each peek nut is properly attached to its corresponding threaded fastener.

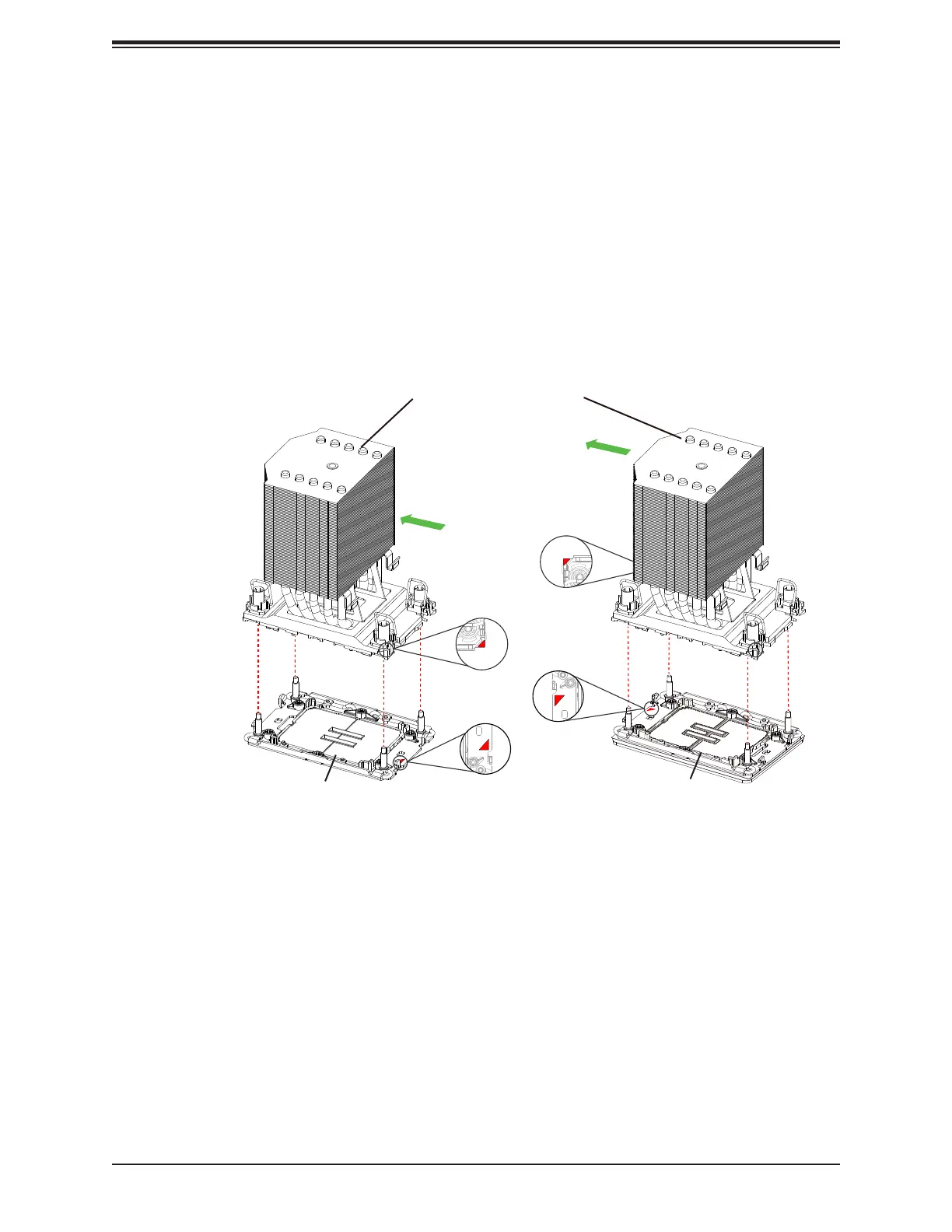

Installing the PHM into the CPU Socket
A, B, C, D:
Peek Nut on the Heatsink
a, b, c, d:
Threaded Fastener on
the CPU socket
A
C
D
B
a
b
d
c
Air Flow Direction
B
D
C
A
b
a
c
d
Air Flow Direction
Pin 1
Pin 1
Pin 1
Pin 1
4U Heatsink (Top Side)
CPU2 Socket
CPU1 Socket
