Chapter 2: Installation

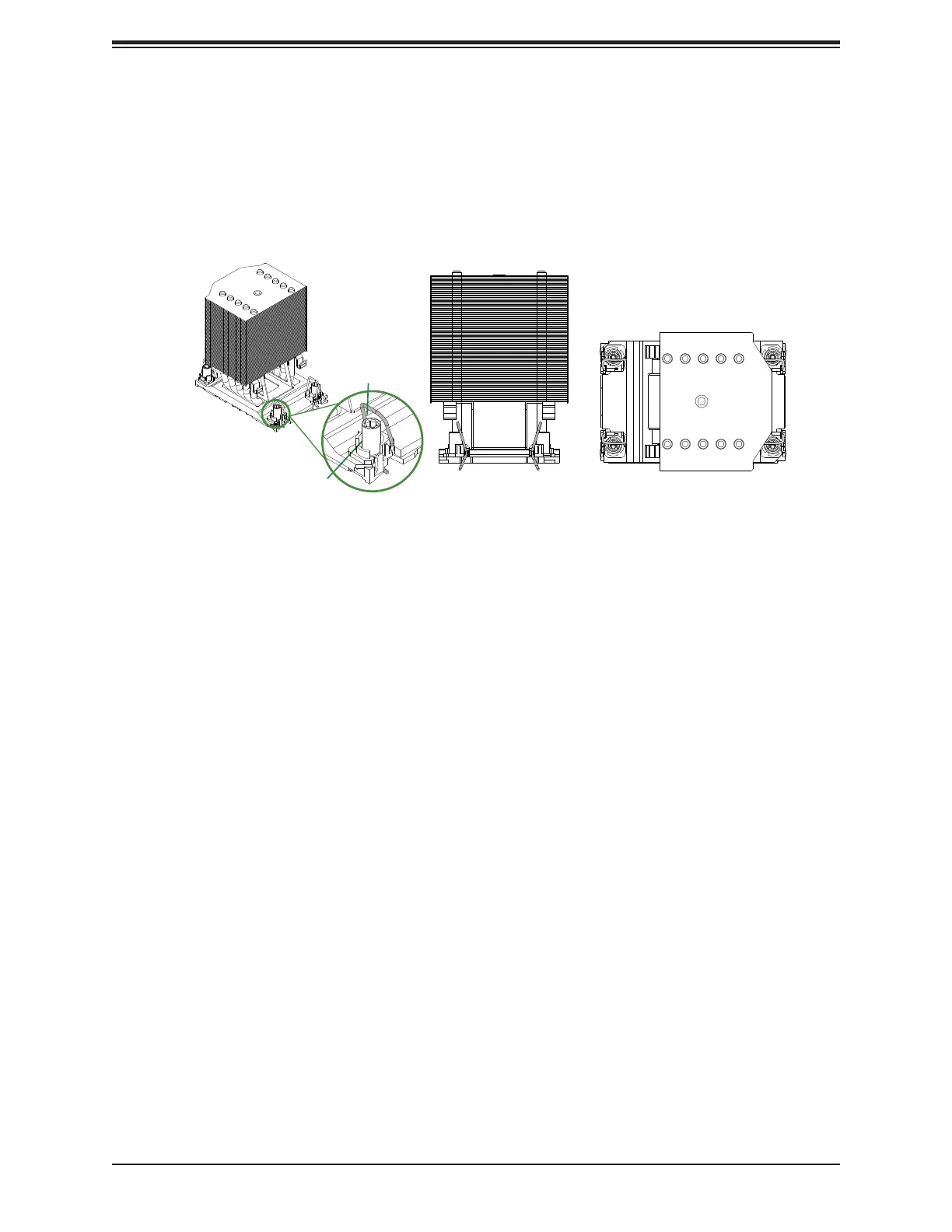

3. Check the rotating wires (marked 1, 2, 3, 4) to make sure that they are at unlatched
positions as shown below before installing the PHM into the CPU socket.
Side View
Top View
Unlatched State
Rotating Wire 1
Peek Nut
4U Heatsink
