47
Chapter 2: Installation

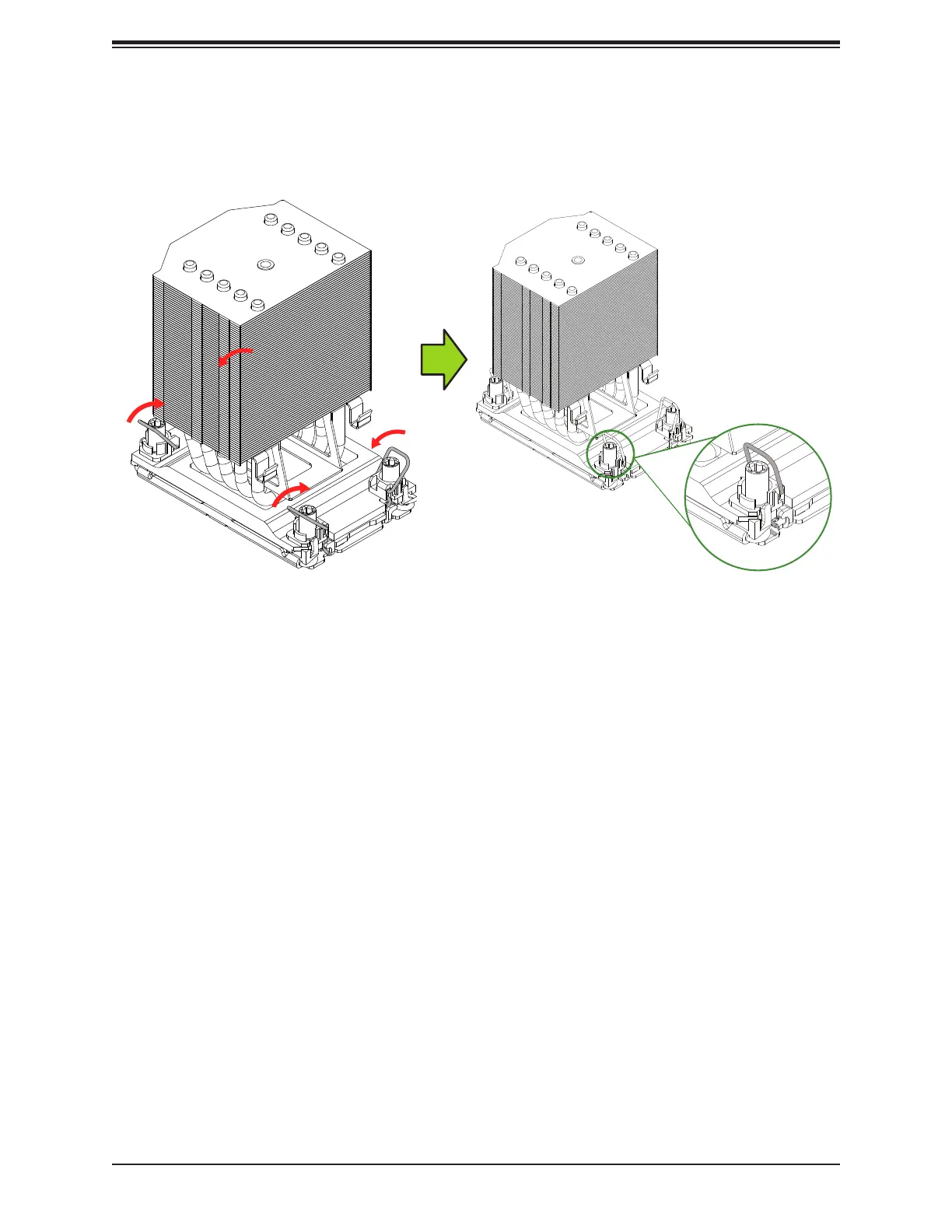

2. Once the peek nuts are loosened from the CPU socket, press the rotating wires inwards
to unlatch the PHM from the socket as shown below.
Unlatched State
4U Heatsink
