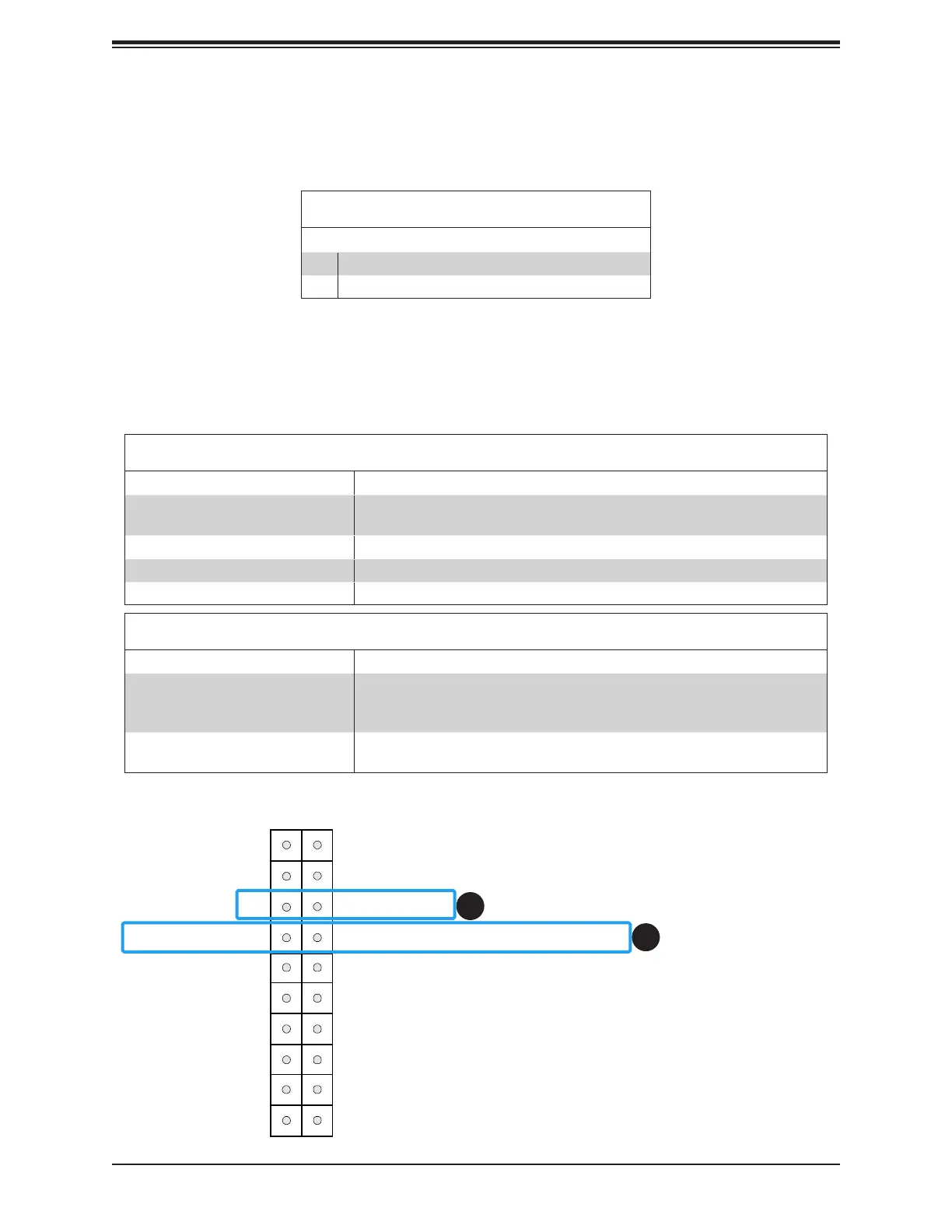

Power Fail LED
The Power Fail LED connection is located on Pin 5 and Pin 6 of JF1. When this LED turns
solid red, it indicates a power failure. Refer to the table below for pin denitions.
1. Power Fail LED
2. Information LED
Power Button
(Blue LED_Cathode_UID)
NIC1 (Activity) LED
Reset Button
HDD LED
FP PWR LED
ID_UID/3.3V Stby
Ground
19
Ground
20
1 2
Ground
Power Fail (for LED6)
NIC2 (Link) LED
NMI
PWR LED-(Cable)
(Red OH/Fan Fail/PWR Fail for LED5/Blue UID LED)
3.3V
PWR LED+(Cable)
JF1
Red+
Blue+
NIC2 (Activity) LED
NIC1 (Link) LED
Key
Key
3.3V
1
2
Power Fail LED
Pin Denitions (JF1)
Pin# Denition
5 3.3V
6 PWR Fail for LEDPWR (Solid red on: PWR failure)
Information LED-Blue+ (OH/Fan Fail/PWR Fail LED/Blue UID LED) (Pin 7 & Pin 8 of JF1)
LED Indicator Status
Status Description
Solid red (on) Overheating, recovering/updating, ash not detected or golden image checking
fail have occurred.
Blinking red (1Hz) Fan failure: check for an inoperative fan.
Blinking red (0.25Hz) Power failure: check for a non-operational power supply.
Blinking red (10Hz) (FP red LED) CPLD recovery mode error(s).
Information LED (OH/Fan Fail/PWR Fail/UID LED)
The Information LED (OH/Fan Fail/PWR Fail/UID LED) connection is located on Pin 7 and
Pin 8 of JF1. The LED on Pin 8 provides warnings of overheat, power failure, or fan failure.
Refer to the table below for more information.
Information LED-Blue+ (Blue UID LED) (Pin 7 & Pin 8 of JF1)
LED Indicator Status
Status Description
BIOS/BMC blinking blue (10Hz)
(blinking for a few minutes, and
stop when recovery complete)
Recovering/Updating;
CPLD recovery mode.
BIOS/BMC blinking blue (10Hz)
(never stop)
OTP has not been programmed.
