Supermicro X13DAI-T User Manual

65
Chapter 2: Installation

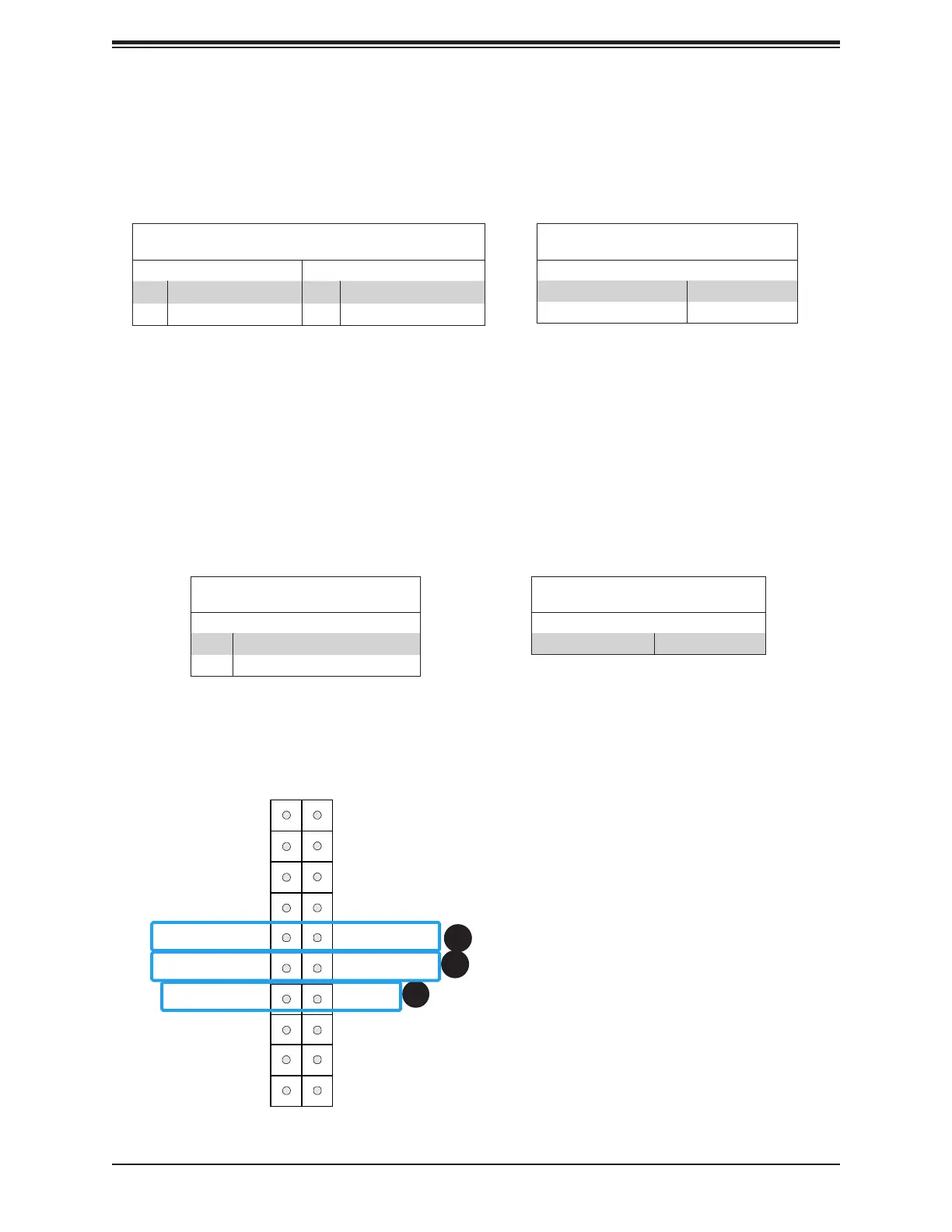

NIC1/NIC2 (LAN1/LAN2)
The NIC (Network Interface Controller) LED connection for LAN port 1 is located on Pin 11
and Pin 12 of JF1, and LAN port 2 is on Pin 9 and Pin 10. Refer to the tables below for pin
denitions.
1. NIC2 (LAN2) LED
2. NIC1 (LAN1) LED
3. ID_UID/HDD LED
LAN1/LAN2 LED
Pin Denitions (JF1)
Pin# Denition Pin# Denitin
9 NIC 2 Activity LED 10 NIC 2 Link LED
11 NIC 1 Activity LED 12 NIC 1 Link LED
ID_UID Button/HDD LED
The UID Button/HDD LED connection is located on Pin 13 and Pin 14 of JF1. The UID Button
is used for a chassis that supports a front UID Button. The front UID Button functions in the
same way as the rear UID Button; both are for input only and cannot be used for output.
When this LED is blinking green, it indicates HDD is active. Attach a cable to Pin 13 and Pin
14 to show ID_UID status and hard drive activity. Refer to the tables below for pin denitions.
ID_UID/HDD LED
Pin Denitions (JF1)
Pin# Denition
13 ID_UID/3.3V Stdby
14 HDD Activity
Power Button
(Blue LED_Cathode_UID)
NIC1 (Activity) LED
Reset Button
HDD LED
FP PWR LED
ID_UID/3.3V Stby
Ground
19
Ground
20
1 2
Ground
Power Fail (for LED6)
NIC2 (Link) LED
NMI
PWR LED-(Cable)
(Red OH/Fan Fail/PWR Fail for LED5/Blue UID LED)
3.3V
PWR LED+(Cable)
JF1
Red+
Blue+
NIC2 (Activity) LED
NIC1 (Link) LED
Key
Key
3.3V
1
2
3
ID_UID/HDD LED
Pin Denitions (JF1)
Color State
Blinking Green HDD Active
LAN1/LAN2 LED
LED Indicator Status
Color State
NIC 2: Blinking green LAN 2: Active
NIC 1: Blinking green LAN 1: Active
