Super X13DAI-T User's Manual

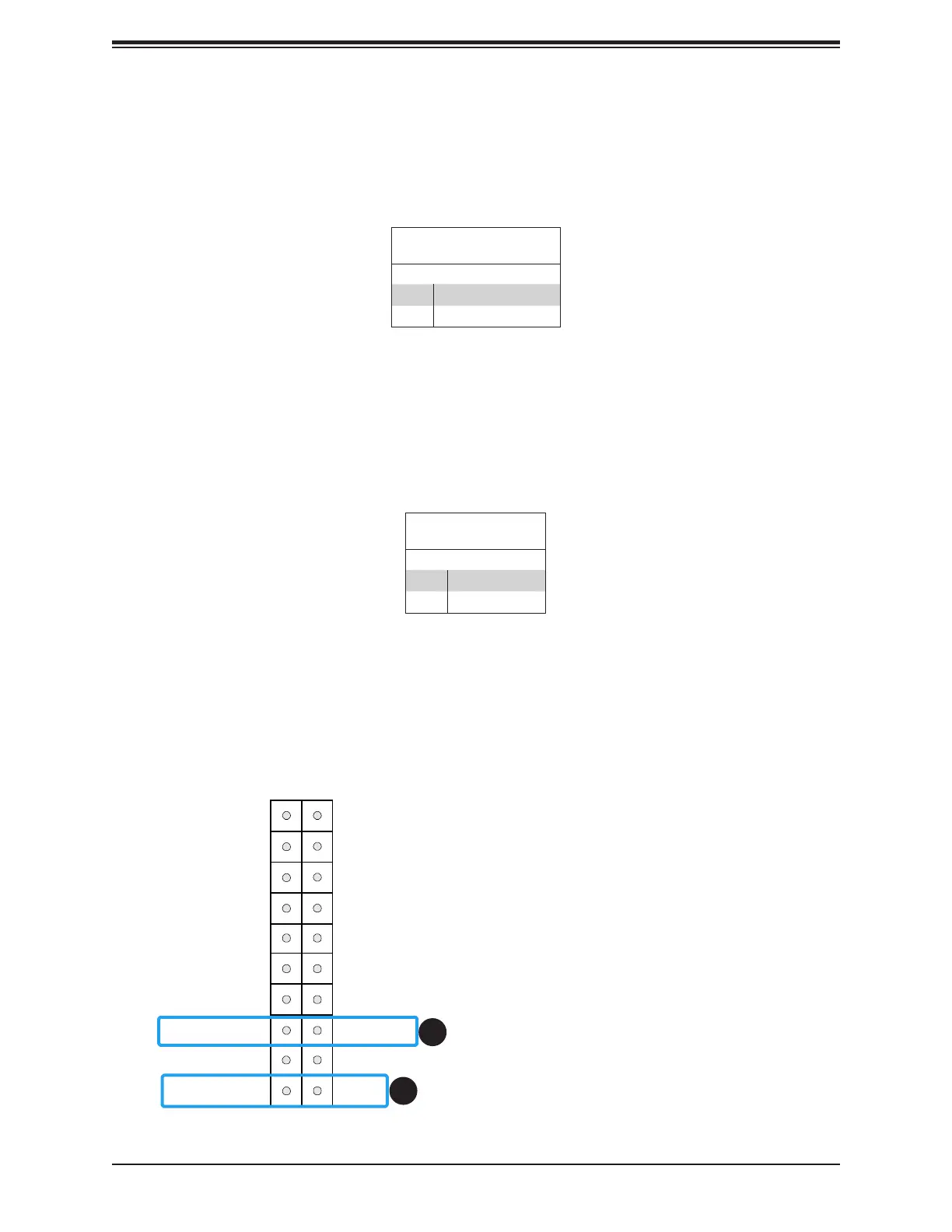

Front Panel Power LED
The Front Panel Power LED connection is located on Pin 15 and Pin 16 of JF1. Refer to the
table below for pin denitions. Please note that Pin 15 and Pin 16 are also for the connection
of PWR LED+(Cable).
FP Power LED
Pin Denitions (JF1)
Pin# Denition
15 3.3V
16 FP PWR LED
NMI Button
The non-maskable interrupt (NMI) button header is located on Pin 19 and Pin 20 of JF1.
Refer to the table below for pin denitions. Please note that Pin 19 and Pin 20 are also for
the connection of PWR LED-(Cable).
NMI Button
Pin Denitions (JF1)
Pin# Denition
19 NMI
20 Ground
1. FP PWR LED
2. NMI
Power Button
(Blue LED_Cathode_UID)
NIC1 (Activity) LED
Reset Button
HDD LED
FP PWR LED
ID_UID/3.3V Stby
Ground
19
Ground
20
1 2
Ground
Power Fail (for LED6)
NIC2 (Link) LED
NMI
PWR LED-(Cable)
(Red OH/Fan Fail/PWR Fail for LED5/Blue UID LED)
3.3V
PWR LED+(Cable)
JF1
Red+
Blue+
NIC2 (Activity) LED
NIC1 (Link) LED
Key
Key
3.3V
1
2
