2.3 Motherboard Installation
All motherboards have standard mounting holes to t di󰀨erent types of chassis. Make sure
that the locations of all the mounting holes for both the motherboard and the chassis match.
Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly
recommended because they ground the motherboard to the chassis. Make sure that the metal
stando󰀨s click in or are screwed in tightly.

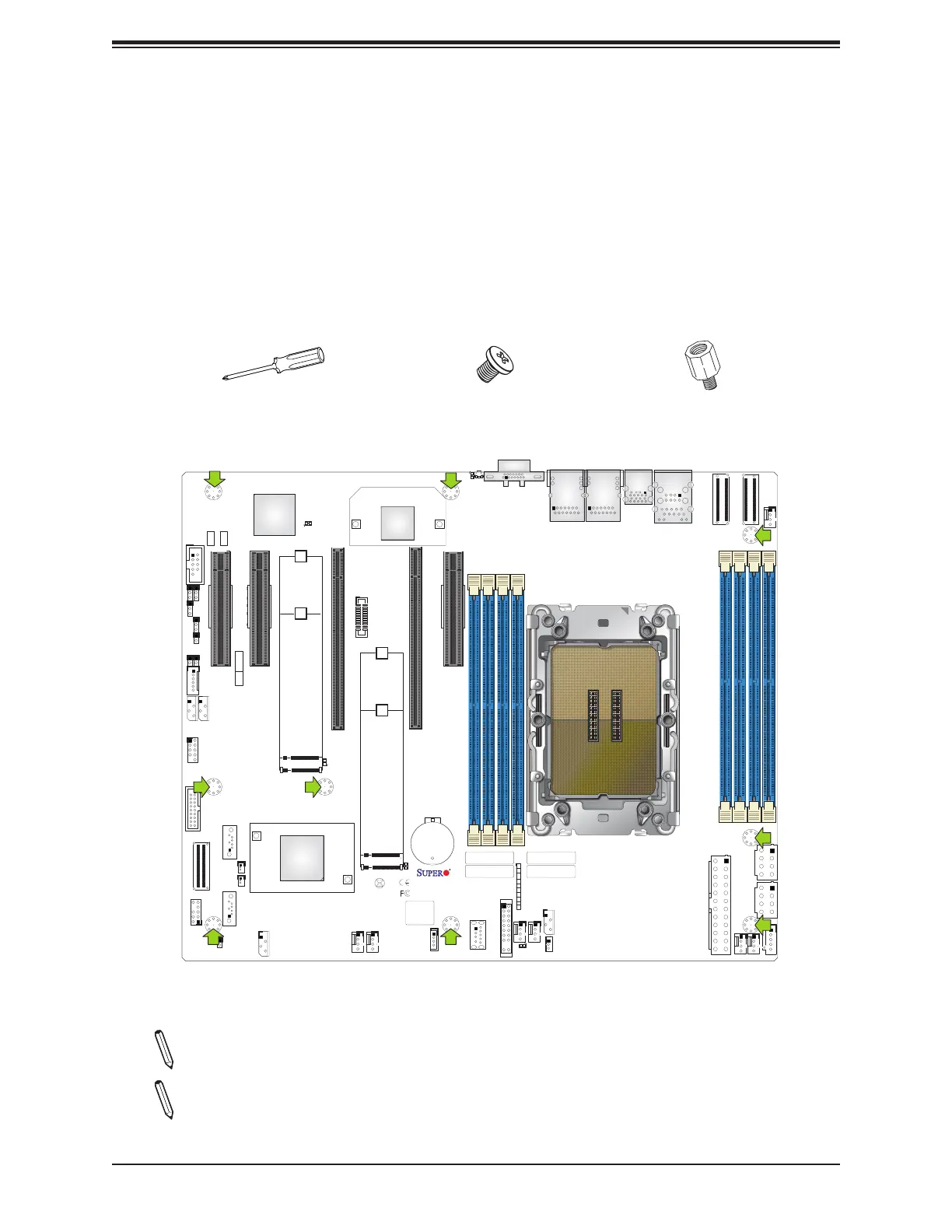

Location of Mounting Holes
Note 1: To avoid damaging the motherboard and its components, do not use a
force greater than 8 lbf-in on each mounting screw during motherboard installation.
Note 2: Some components are very close to the mounting holes. Take precautionary
measures to avoid damaging these components when installing the motherboard to
the chassis.
Phillips
Screwdriver
(1)
Stando󰀨s (9)
Only if Needed
Phillips Screws
(9)
Tools Needed
