2.6 Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specically for use
with a Supermicro chassis. See the gure below for the descriptions of the front control panel
buttons and LED indicators.

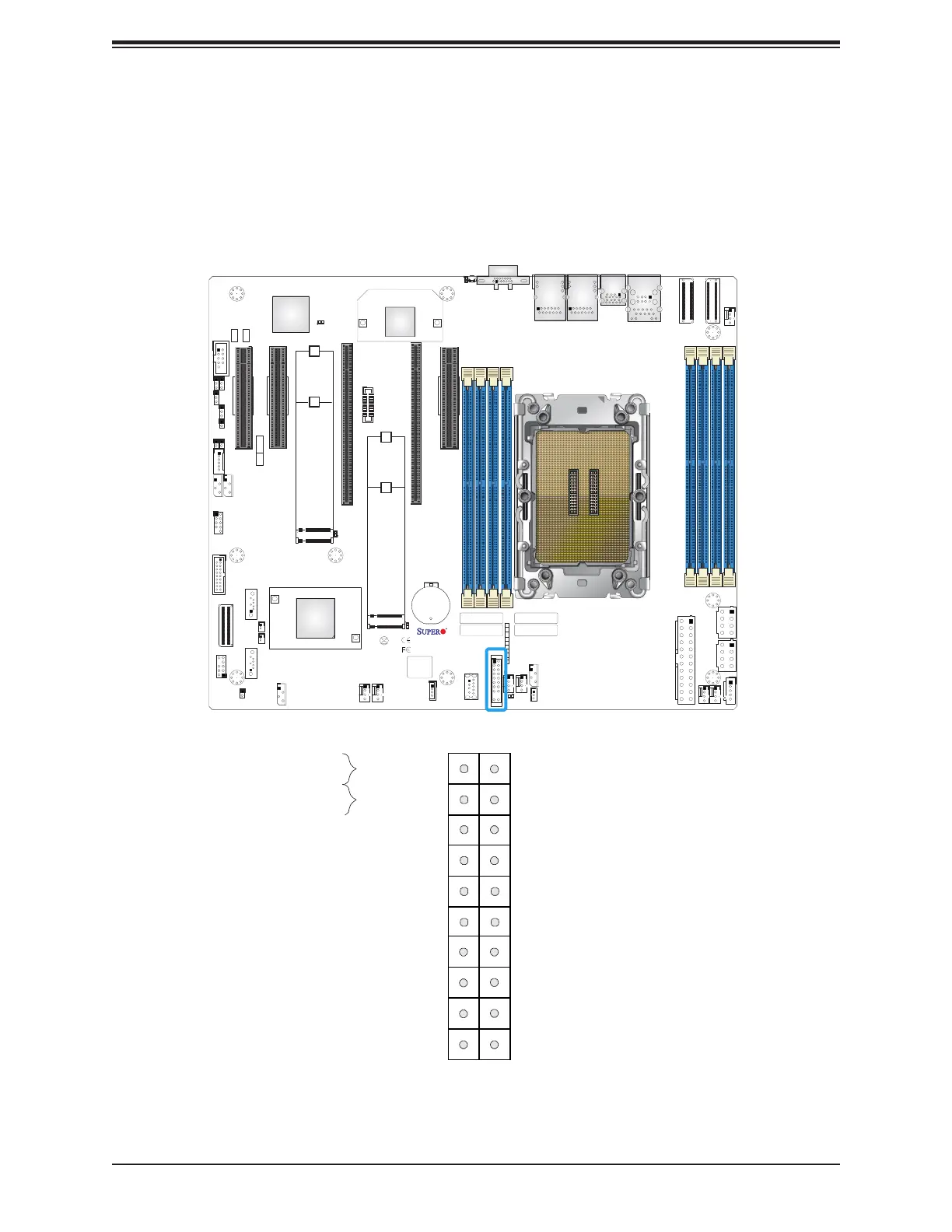

Figure 2-2. JF1 Header Pins
