Chapter 2: Installation

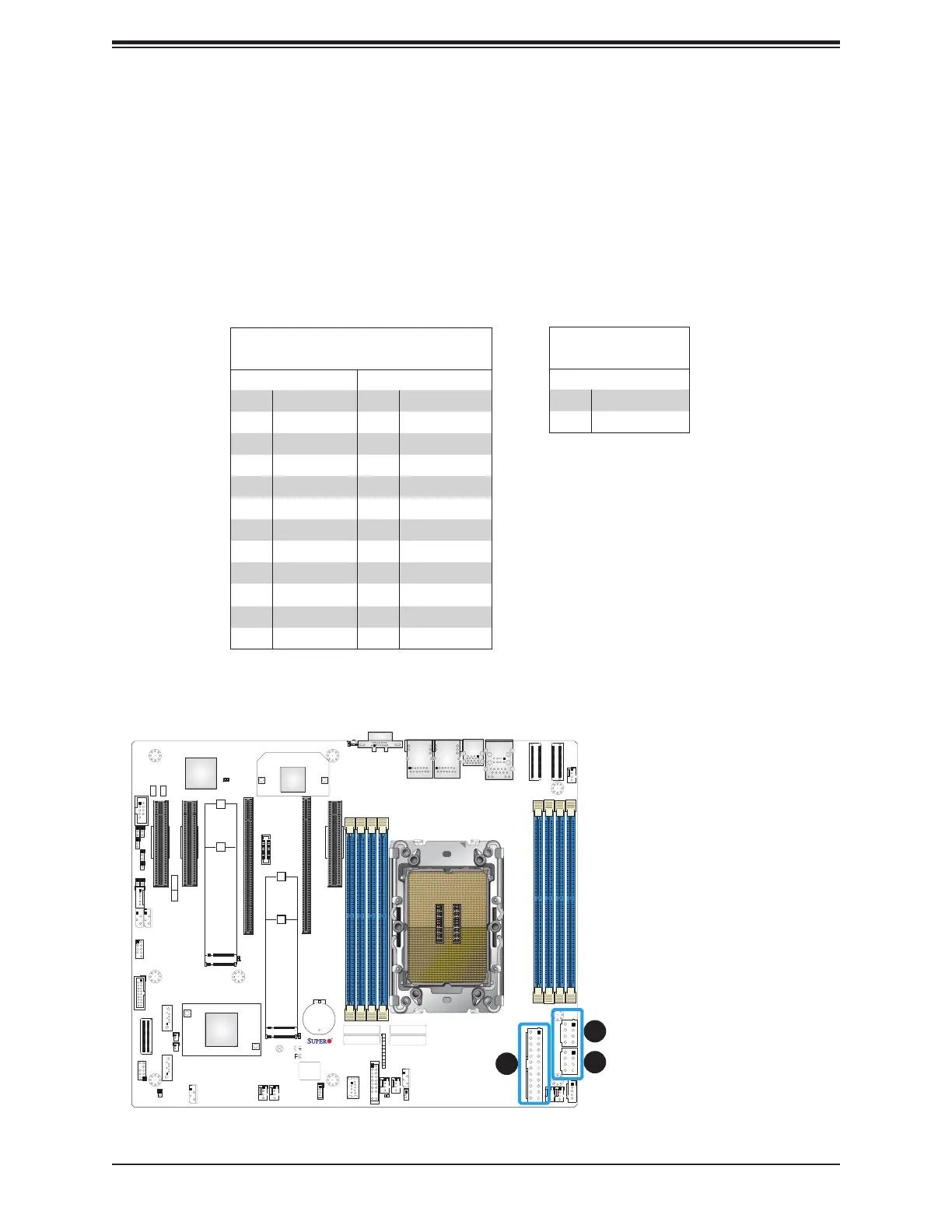

2.7 Connectors
Power Connections
ATX Power 24-pin Connector
Pin Denitions
Pin# Denition Pin# Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
BIOS LICENSE
SAN MAC
REV:1.01
X13SEI-TF
MAC CODE
IPMI CODE
DESIGNED IN USA
BAR CODE
+
JPCIE7
JPCIE2
JPCIE1
JPCIE6
JPCIE4
JS1
JI2C_FP1
JNVME2
JNVME1
LEDBMC
LED6
LED7
LED4
JPL3
JPME1
JPL2
JPL1
JBT1
MH13
MH12
MH10
MH11
BT1
JPFR3
JPFR2
JPFR1
JL1
JSTBY1
JSD1
JSD2
FAN1
FAN2
FAN3
FAN4
FAN5
FANAFANB
JNVI2C1
JSEN1
JI2C_EXP1
JIPMB1
JRK1
JUIDB1
JPI2C1
JPWR1
JPWR2
MH8
MH7
MH4
MH1
MH2
MH3
MH5
MH6
MH9
JTPM1
SATA 8
SATA 9
JF1
JNCSI1
JPWR3
JM2_1
JM2_2
BMC
X550
PCH
C741
Header for 5V STBY power
M.2 NVME
M.2-C1
2-3:DISABLE JPL1:LAN1 1-2:ENABLE
CMOS CLEAR
M.2 NVME
M.2-C2
JPL3:LAN1/2
JPL2:LAN2 1-2:ENABLE 2-3:DISABLE
2-3:DISABLE 1-2:ENABLE
USB7(3.2 Gen 1)
NVME2/3
NVME0/1
USB0/1
BMC_LAN
USB4/5
(3.2 Gen 1)
LAN1LAN2
VGA
COM1
CPU SLOT1 PCIe 5.0 X8
CPU SLOT2 PCIe 5.0 X8
CPU SLOT4 PCIe 5.0 X16
CPU SLOT6 PCIe 5.0 X16 CPU SLOT7 PCIe 5.0 X8
CPU
LED LEDLED 1
2
FAIL
ON
HDD
X NMI
PWRUID NIC
NIC
PS
PWR
RST
JF1
PWR I2C
LEDPWR
RAID KEY-1
SATA DOM POWERSATA DOM POWER
SUPERDOM
SUPERDOM
USB6(3.2 Gen 1)
SATA0-7
TPM/PORT80
CHASSIS INTRUSION
USB2/3
2-3:ME RECOVERY 1-2:NORMAL JPME1
IPMI
DIMMB1 DIMMA1 DIMMD1 DIMMC1
DIMMG1 DIMME1
DIMMH1
DIMMF1
1
2
1. 24-Pin ATX Power
2. 8-Pin CPU Power
3. 8-Pin CPU Power
8-pin CPU Power
Pin Denitions
Pin# Denition
1-4 GND
5-8 12V
Power Connectors
JPWR3 is the 24-pin power connector for ATX power source. JPWR1 and JPWR2 are the 12V
DC power connectors that provide power to the CPU in conjunction with JPWR1 or they can be
used as the sole 12V DC only power inputs when JPWR1 is not in use.
