Super X13SEI-TF/-F User's Manual
OH/Fan Fail LED
20
NIC1 Activity LED
19
HDD LED
PWR LED
3.3V Stby
3.3V Stby
UID LED
X
Ground
NMI
X
NIC2 Activity LED
3.3V Stby
3.3V Stby
Power Button
Reset Button
Reset
PWR
Ground
Ground
1 2
Power Fail LED
3.3V
1. Power LED
2. NMI Button
1
Power LED

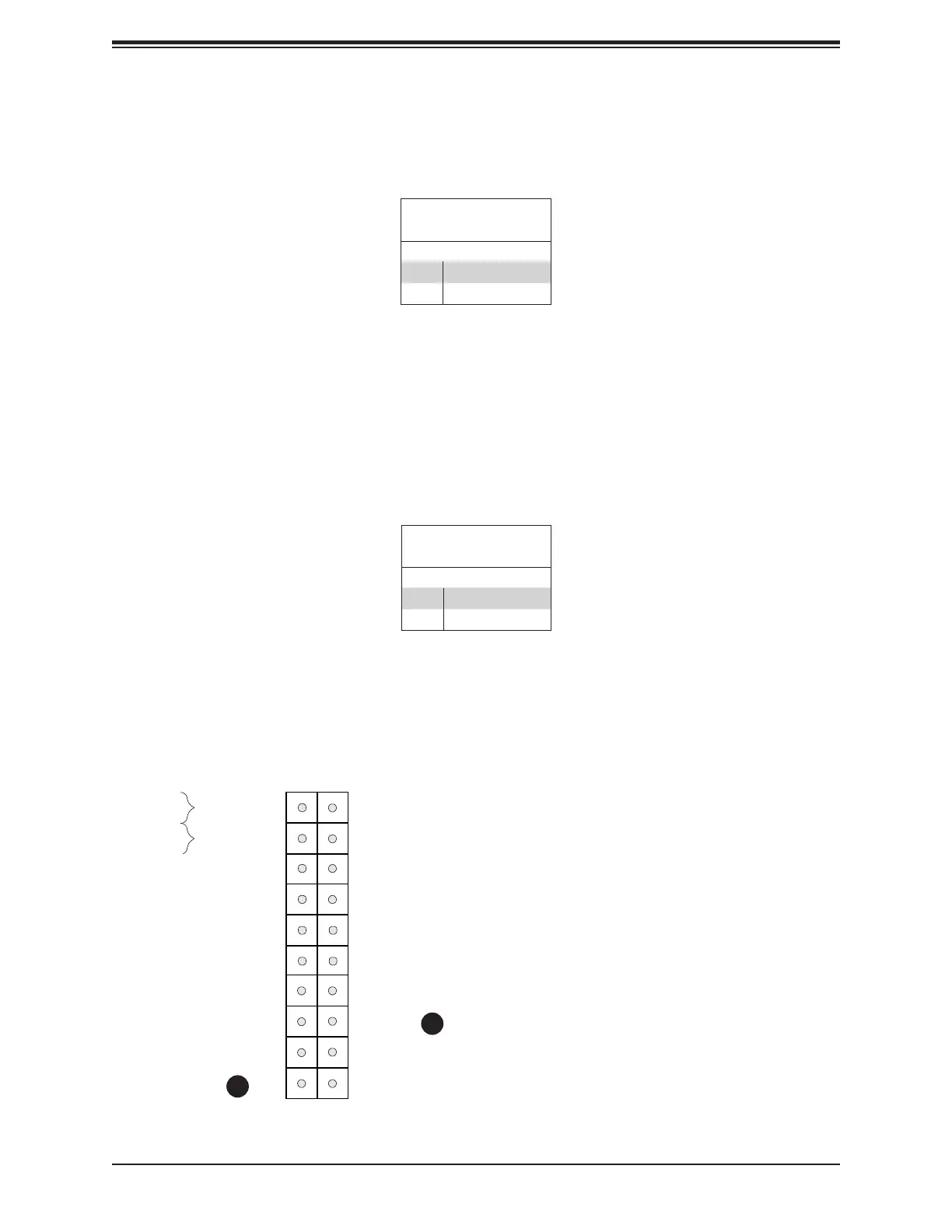

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for
pin denitions.
Power LED
Pin Denitions (JF1)
Pins Denition
15 +3.3V Stby
16 PWR LED
NMI Button
The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the
table below for pin denitions.
NMI Button
Pin Denitions (JF1)
Pins Denition
19 Control
20 Ground
