Chapter 2: Installation
BIOS LICENSE
SAN MAC
REV:1.01
X13SEI-TF
MAC CODE
IPMI CODE
DESIGNED IN USA
BAR CODE
+
JPCIE7
JPCIE2
JPCIE1
JPCIE6
JPCIE4
JS1
JI2C_FP1
JNVME2
JNVME1
LEDBMC
LED6
LED7
LED4
JPL3
JPME1
JPL2
JPL1
JBT1
MH13
MH12
MH10
MH11
BT1
JPFR3
JPFR2
JPFR1
JL1
JSTBY1
JSD1
JSD2
FAN1
FAN2
FAN3
FAN4
FAN5
FANAFANB
JNVI2C1
JSEN1
JI2C_EXP1
JIPMB1
JRK1
JUIDB1
JPI2C1
JPWR1
JPWR2
MH8
MH7
MH4
MH1
MH2
MH3
MH5
MH6
MH9
JTPM1
SATA 8
SATA 9
JF1
JNCSI1
JPWR3
JM2_1
JM2_2
BMC
X550
PCH
C741
Header for 5V STBY power
M.2 NVME
M.2-C1
2-3:DISABLE JPL1:LAN1 1-2:ENABLE
CMOS CLEAR
M.2 NVME
M.2-C2
JPL3:LAN1/2
JPL2:LAN2 1-2:ENABLE 2-3:DISABLE
2-3:DISABLE 1-2:ENABLE
USB7(3.2 Gen 1)
NVME2/3
NVME0/1
USB0/1
BMC_LAN
USB4/5
(3.2 Gen 1)
LAN1LAN2
VGA
COM1
CPU SLOT1 PCIe 5.0 X8
CPU SLOT2 PCIe 5.0 X8
CPU SLOT4 PCIe 5.0 X16
CPU SLOT6 PCIe 5.0 X16 CPU SLOT7 PCIe 5.0 X8
CPU
LED LEDLED 1
2
FAIL
ON
HDD
X NMI
PWRUID NIC
NIC
PS
PWR
RST
JF1
PWR I2C
LEDPWR
RAID KEY-1
SATA DOM POWERSATA DOM POWER
SUPERDOM
SUPERDOM
USB6(3.2 Gen 1)
SATA0-7
TPM/PORT80
CHASSIS INTRUSION
USB2/3
2-3:ME RECOVERY 1-2:NORMAL JPME1
IPMI
DIMMB1 DIMMA1 DIMMD1 DIMMC1
DIMMG1 DIMME1
DIMMH1
DIMMF1

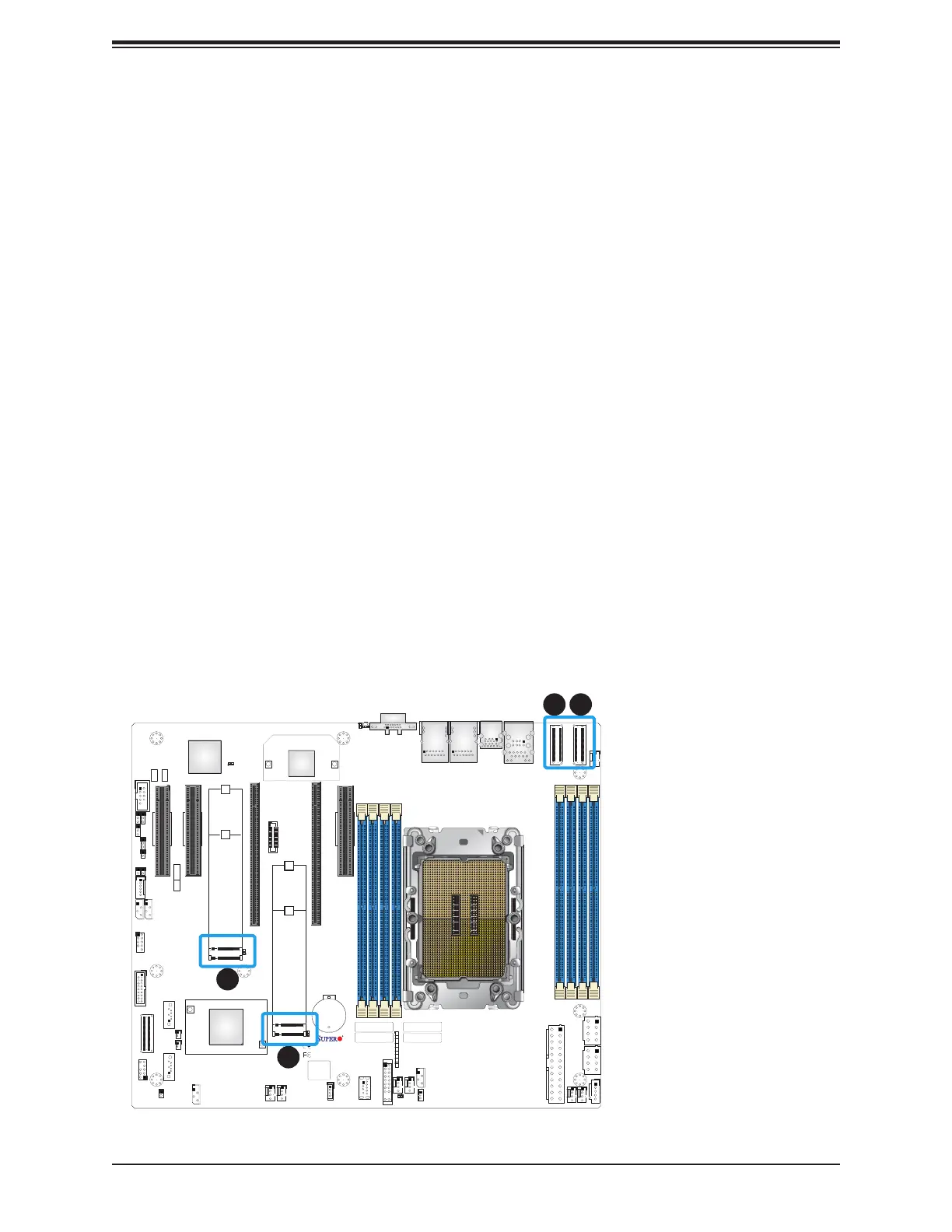

M.2 Slots
This motherboard has two M.2 slots (JM2_1, JM2_2). M.2 was formerly known as Next Generation
Form Factor (NGFF) and serves to replace mini PCIe. M.2 allows for a variety of card sizes,
increased functionality, and spatial e󰀩ciency. The M.2 slots on the motherboard supports PCIe
5.0 x4 from the CPU in the 22110 and 2280 form factors.
1. JM2_1
2. JM2_2
3. NVME0/1
4. NVMe2/3
1
2
4 3
MCIO Connectors
The two MCIO connectors at NVME0/1 and NVME2/3 supports PCIe 5.0 x8 devices for four
NVMe SSDs.
