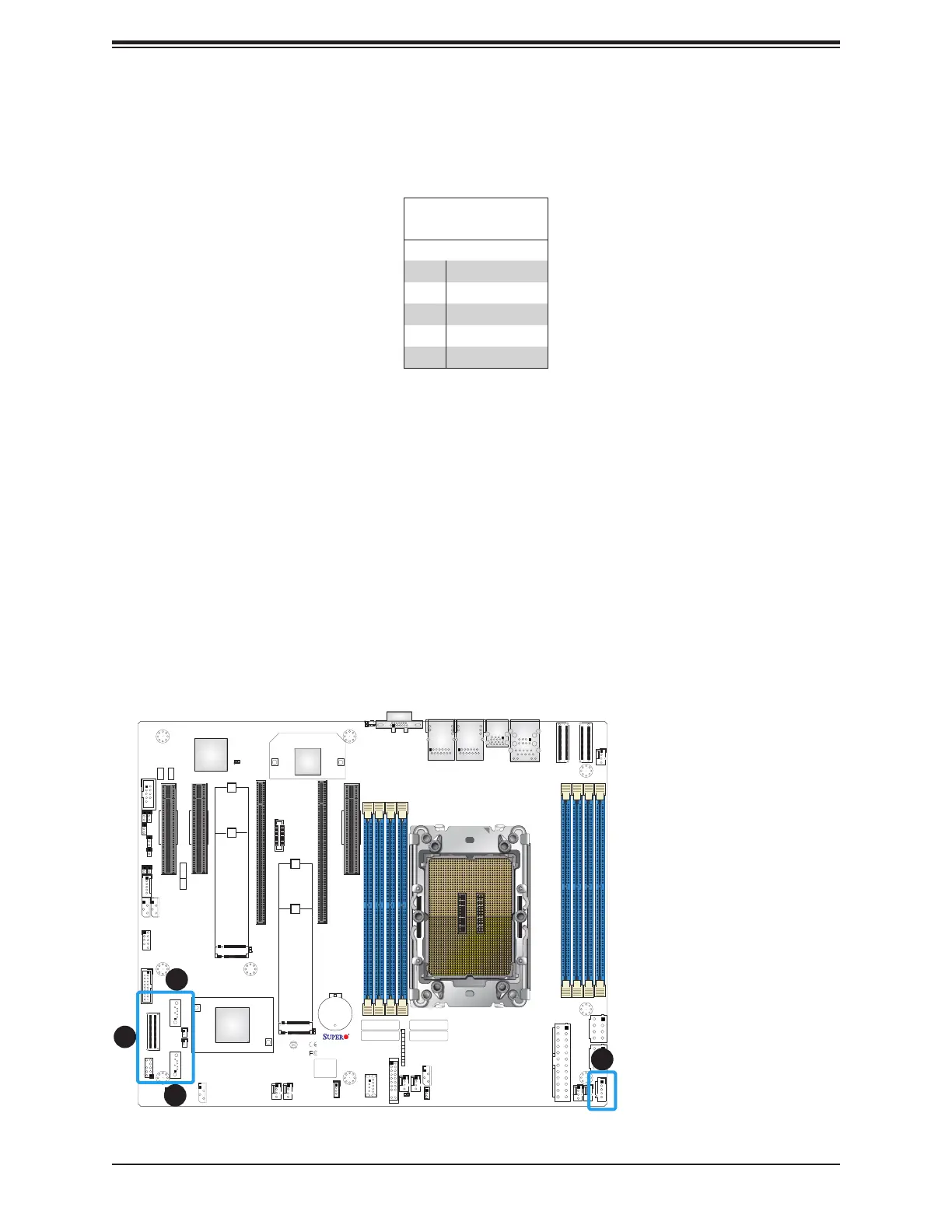

1. Power SMB (I
2
C) Header
2. JS1
3. SATA8
4. SATA9
Power SMB (I
2
C) Header
Power System Management Bus (I
2
C) header at JPI
2
C1 monitors the power supply, fan and
system temperatures. Refer to the table below for pin denitions.
Power SMB Header
Pin Denitions
Pin# Denition
1 Clock
2 Data
3 Power Fail
4 Ground
5 +3.3V
SATA 3.0 Ports
This motherboard has nine SATA 3.0 ports located at JS1 (SATA0–7), SATA8, and SATA9. SATA0
can be used with Supermicro SuperDOM's SATA DOM connectors with power pins built in, and
do not require external power cables. Supermicro SuperDOMs are backward compatible with
regular SATA HDDs or SATA DOMs that need external power cables.
