F-13
Appendix F: SAS-846EL Backplane Specieations
Description: This cable has one SFF-8484 (32 pin) connector on one end and
iPass (SFF-8087/mini-sas) connector (36 pins) at the other. This cable connects
from the HBA to the SAS-846EL backplane.
Cable Name: iPass TO 4-lane
Part #: CBL-0117L Length: 46 cm (18 inches)
Figure F-12: Dual Internal Host Bus Adapter
Supported Internal HBA Cables
Use the following listed cables to create connections between the internal HBA and
SAS-846EL backplane. The cables required depend on the HBA connector.
HBA
(Host Bus Adapter)
Connecting an Internal Host Bus Adapter to the
Backplane
The following section lists the most common cables used to connect the Host Bus
Adapter (HBA) to the backplane.

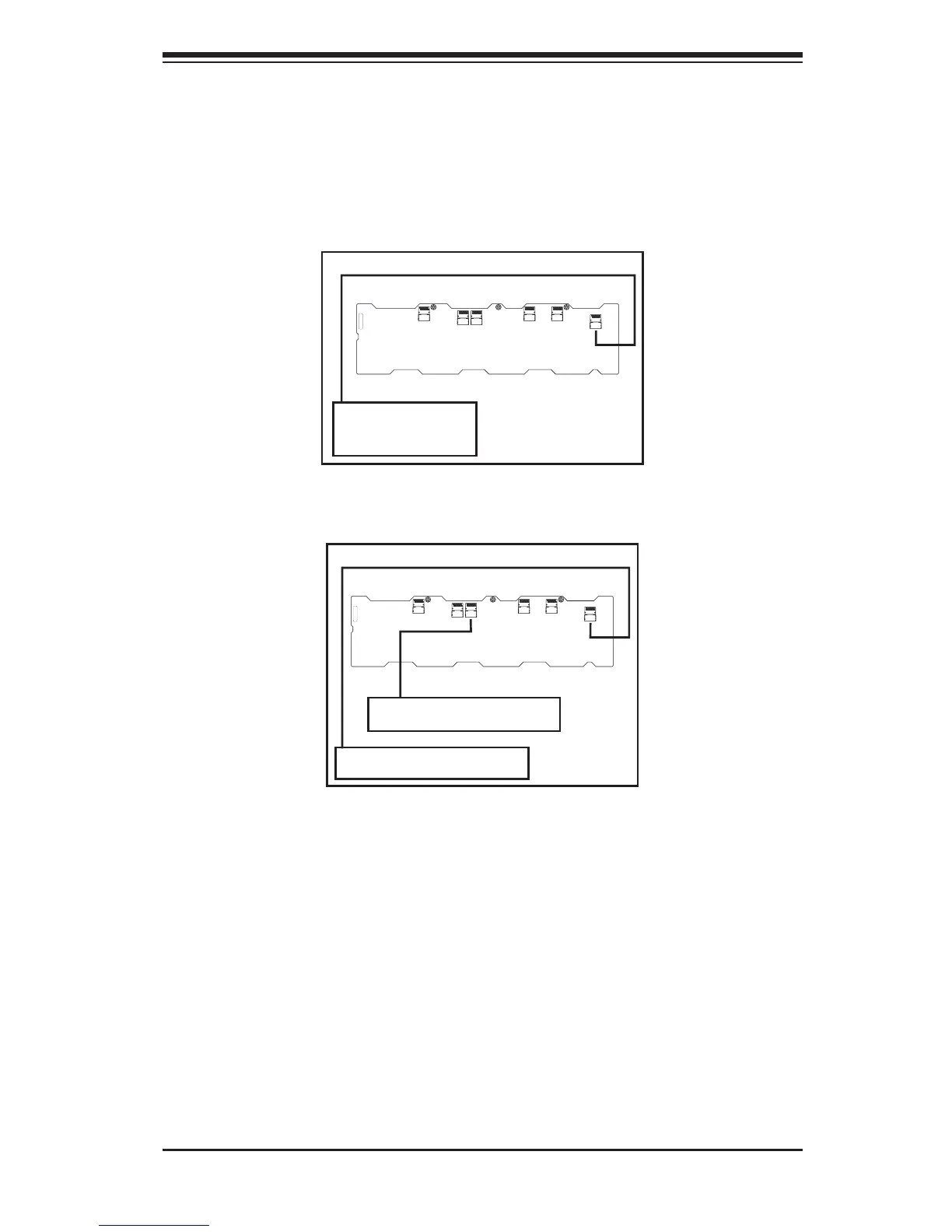

Figure F-11: Single Internal Host Bus Adapter
HBA (Host Bus Adapter)
HBA (Host Bus Adapter)
To Next Page
