SC847 Chassis Manual
4-6
4-4 Installing Optional Fixed Hard Drives
(Tray p/n: MCP-220-84701-0N)
The SC847 chassis includes brackets for installing either one 3.5" xed hard drive,
or two 2.5" xed hard drives within the chassis. Each chassis can accomodate up
to two internal drive trays supporting up to two 3.5" hard drives or up to four 2.5"
hard drives.

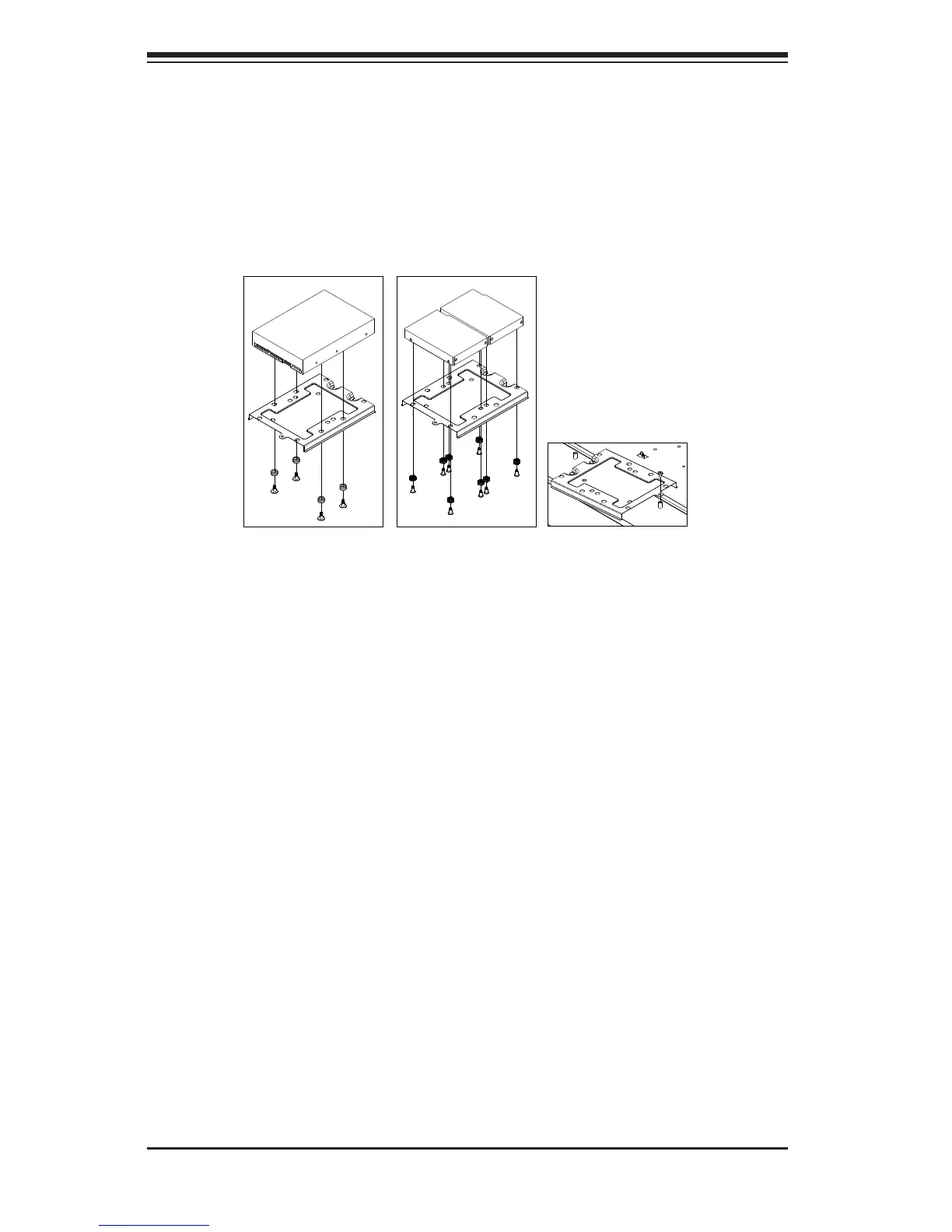

Figure 4-6:
Installing One
3.5" HDD
Figure 4-7:
Installing Two
2.5" HDDs
Figure 4-8:
Installing the
Bracket onto the
Chassis
Installing a 3.5" Hard Drive into the Bracket
Align the four round washers and four screws with the holes in the hard drive 1.
and the holes in the bracket.
Secure the hard drive to the bracket using the screws and washers provided.2.
See the instructions below for Installing the Bracket onto the Chassis.3.
Installing Two 2.5" Hard Drives into the Bracket
Align the eight external tooth washers and eight screws with the holes in the 1.
hard drive and the holes in the bracket.
Secure the hard drive to the bracket using the screws and washers provided.2.
See the instructions below for Installing the Bracket onto the Chassis.3.
Installing the Bracket onto the Chassis
Align the holes in the bracket with the chassis standoffs. 1.
Secure the bracket using the screw provided as shown in Figure 4-8.2.
