4-9
Chapter 4: Chassis Setup and Maintenance
Add-on Card/Expansion Slot Setup
SC847: The chassis includes I/O slots for expansion cards. The number of cards
used depends on your chassis model.
SC847 LP Models: Provides seven low-prole expansion card slots.
SC847 UIO Models: Provides three full-height/full-length slots, three low-prole
slots and includes a universal expansion card.

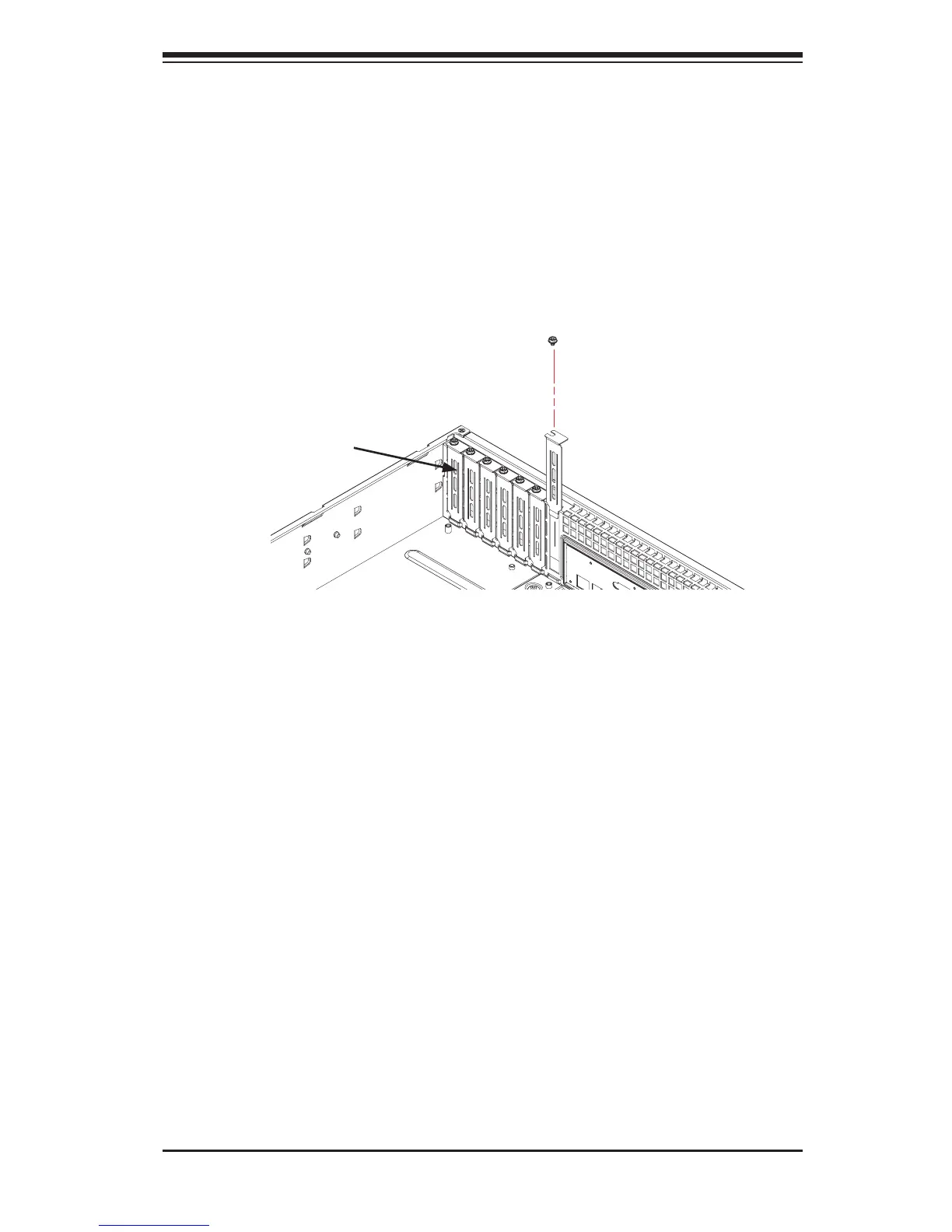

Figure 4-12: SC825 LP model
Expansion Slot Setup in LP (Low Prole) Chassis
SC847 chassis include slots for expansion cards. The number of cards you can use
depends on your chassis model and motherboard model.
Installing Expansion cards in SC847 LP (Low Prole) Chassis
Disconnect the power supply, lay the chassis on a at surface, and open the 1.
chassis cover.
Remove the screw holding the cover in place for each low prole expansion 2.
card slot you want to use. Keep this screw for later use.
Connect the expansion cards to the motherboard.3.
Secure each card to the chassis using the card's L-bracket and the screw 4.
previously removed.
Expansion
Card Slots
