2-2
X7DVL-3/X7DVL-i User's Manual

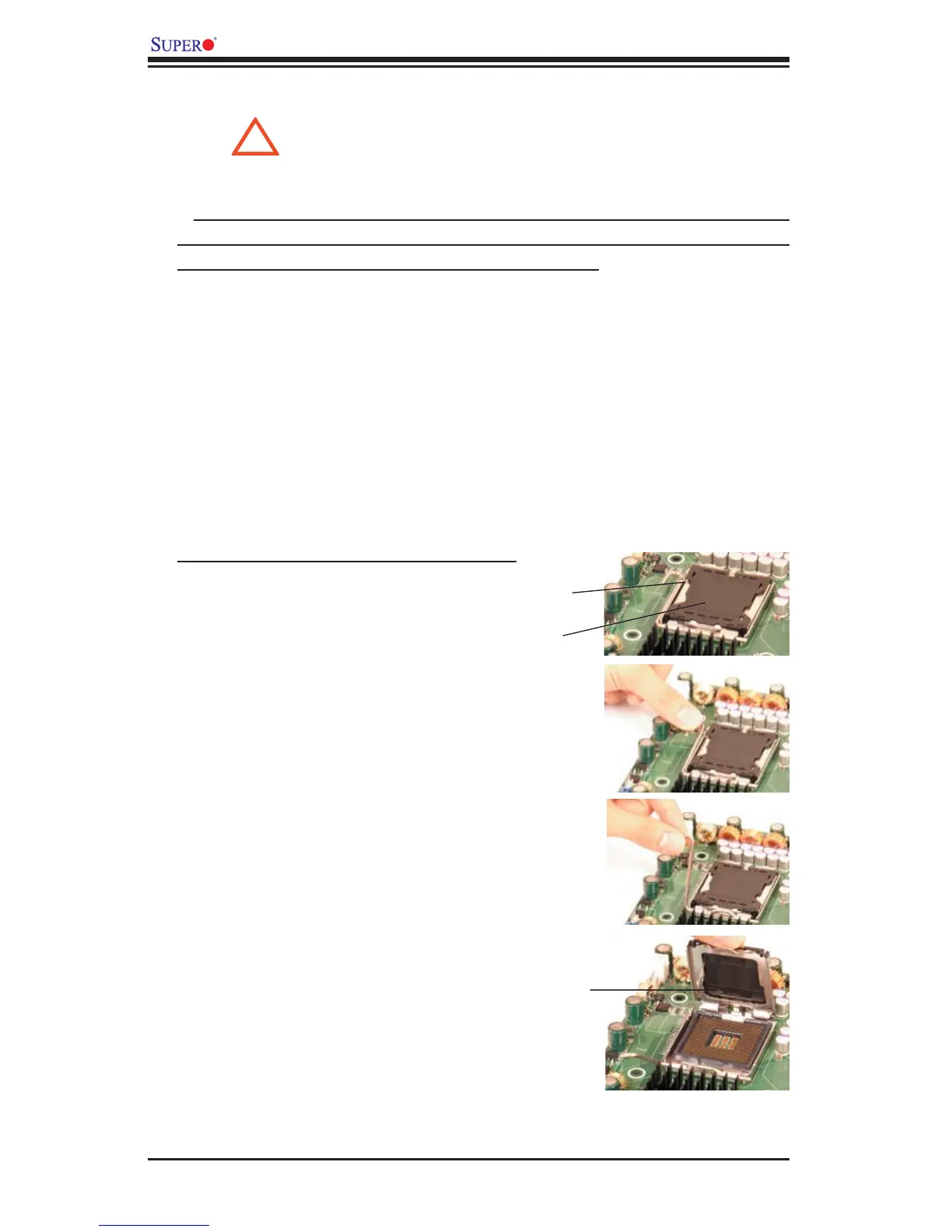

Installation of the LGA771 Processor
1. Press the load lever to release
the load plate, which covers the CPU
socket, from its locking position.
Load Lever
2. Gently lift the load lever to open the
load plate.
PnP Cap on
top of the
Load Plate
Load Plate
(with PnP Cap
attached)
When handling the processor package, avoid placing
direct pressure on the label area of the fan.
*Notes:
1. Always connect the power cord last and always remove it before adding, removing
or changing any hardware components. Make sure that you install the processor
into the CPU socket before you install the CPU heatsink.
2. Intel's boxed Xeon CPU package contains the CPU fan and heatsink assembly.
If you buy a CPU separately, make sure that you use only Intel-certifi ed multi-di-
rectional heatsink and fan.
3. Make sure to install the motherboard into the chassis before you install the CPU
heatsink and fan.
4. When purchasing a motherboard with an LGA 771 CPU Socket, make sure that
the CPU plastic cap is in place and none of the CPU Socket pins are bent; other-
wise, contact the retailer immediately.
5. Refer to the MB Features Section for more details on CPU support.
!
2-2 Processor and Heatsink Fan Installation
To Next Page
